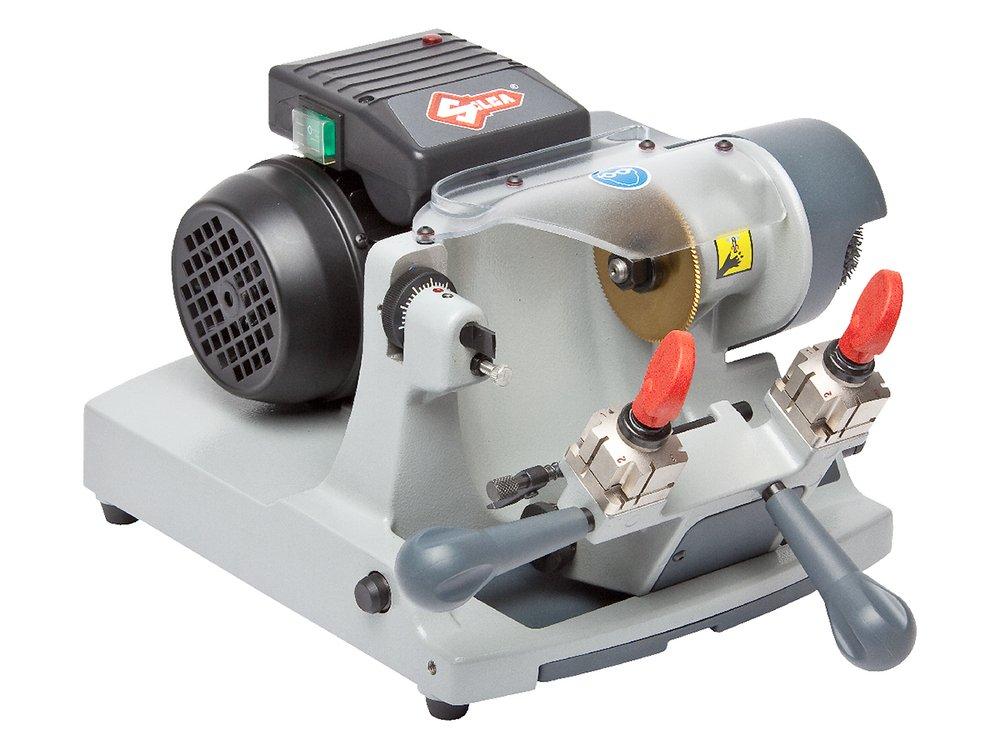

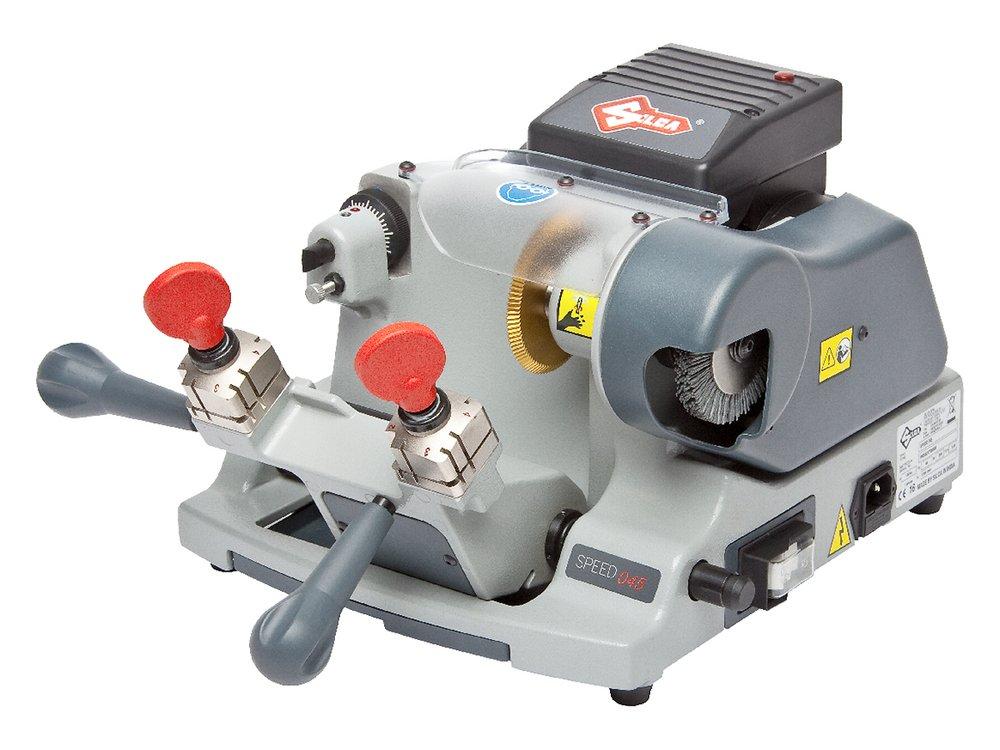

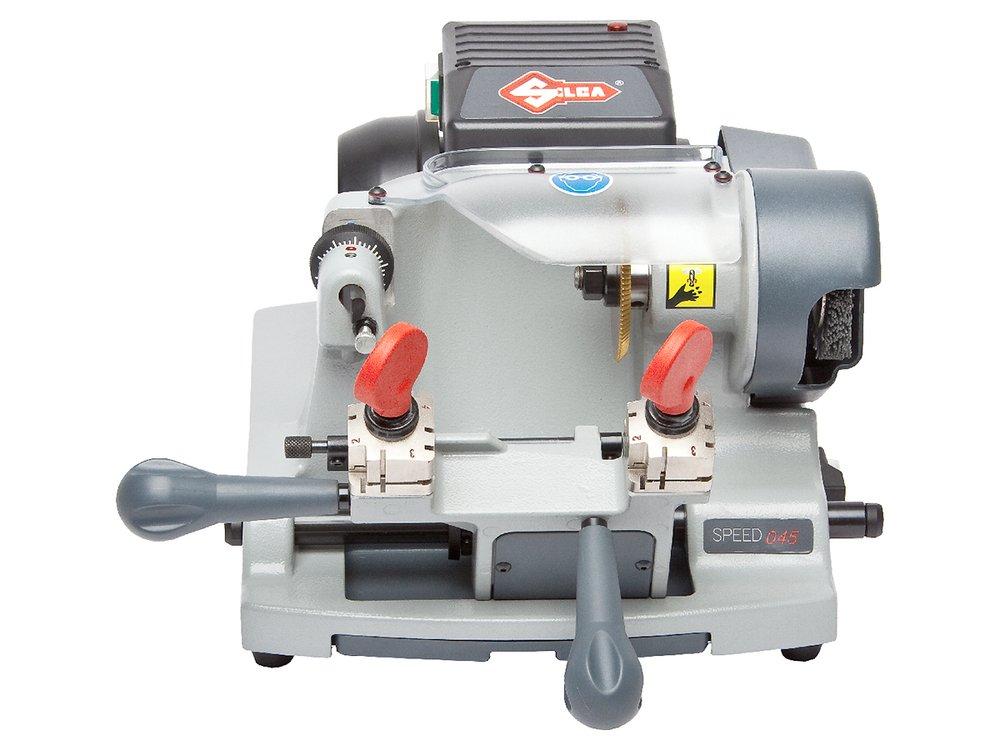

120V Manual Heavy-Duty Milling Key Machine
120V Manual Heavy-Duty Milling Key Machine
Frequently Purchased Together
Product Details
Product Details
- Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position
- Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys
- Wide spacing 3-1/2 in. (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
- Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
- TiN (titanium nitride) coated cutter for longer life and oxidation resistance
- Nylon deburring brush
- Electro-magnetic “main” safety switch with a separate cutter motor switch for easy access
- Large transparent cutter safety shield contains chips and provides a storage area for accessories
- Large drawer-type swarf (chip) tray under the carriage for easy access
- Mounting bracket included for securing the machine to counter
Documents
Specifications
- ADA Compliant:
- No
- AMP:
- 2.8
- Application:
- Commercial, Residential
- Coating:
- Tin
- Depth:
- 18-1/10 in
- Door Hardware Type:
- Key
- Height:
- 9-4/5 in
- Horsepower:
- 23/64 hp
- Material:
- Steel
- Volts:
- 120V
- Weight:
- 31 lb
- Width:
- 15-3/4 in
