2.5 gal. Point of Use 1.4kW 1-Element Electric Water Heater
You last purchased this on
A.O. Smith

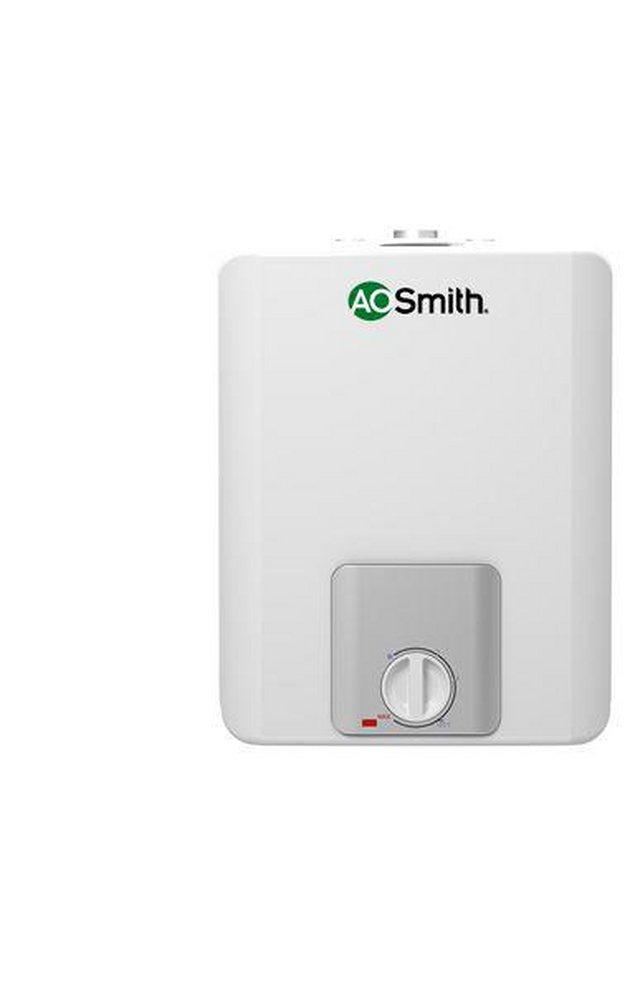

ProLine® 2.5 gal. Point of Use 1.4kW 1-Element Electric Water Heater
Purchase history
A.O. Smith
ProLine®
2.5 gal. Point of Use 1.4kW 1-Element Electric Water Heater
100326824
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Designed for low demand, such as office lavatories or buildings with remote restrooms
- Blue Diamond® glass coating provides superior corrosion resistance compared to industry standard glass lining
- Enhanced flow brass drain valve which is standard on our residential water heaters, have a solid brass, tamper resistant, enhanced flow, ball type, drain valve
- Meets UBC, CEC and HUD National Codes
- Approved for manufactured housing and all residential electric water heaters are compliant with HUD standards for mobile homes/manufactured housing
- Certified to UL 174 for household electric water heaters
- CSA certified and ASME rated T&P relief valve
- Design listed by Underwriters Laboratories and are certified at 300 psi test pressure and 150 psi working pressure
- 6-year limited tank and parts warranty
Specifications
- AFUE:
- 98.00 %
- ANSI:
- ANSI Z21.22
- Application:
- Residential
- CARB OTC LEED Compliant:
- No
- Capacity:
- 2.5 gal
- Collection:
- ProLine®
- Depth:
- 10-3/8 in
- Drain Valve Material:
- Brass
- ETL Listed:
- No
- End Connections:
- NPT
- Energy Star Compliant:
- No
- Height:
- 14-1/2 in
- Lining of Tank:
- Blue Diamond® Glass
- Number of Elements:
- 1
- Phase:
- Single Phase
- Power Source:
- Electric
- Pressure - Maximum:
- 300 psi
- Temperature Range:
- 90 to 120 Deg F
- UL Listed:
- UL 174
- Volts:
- 120V
- Water Connection Size:
- 1/2 in
- Water Connections:
- Top
- Water Heater Capacity Range:
- Less than 10 gal
- Water Heater Type:
- Point of Use
- Watts:
- 1.4 kW
- Weight:
- 17 lb
