5 ft. Mechanical Joint 5-1/4 in. Assembled Fire Hydrant

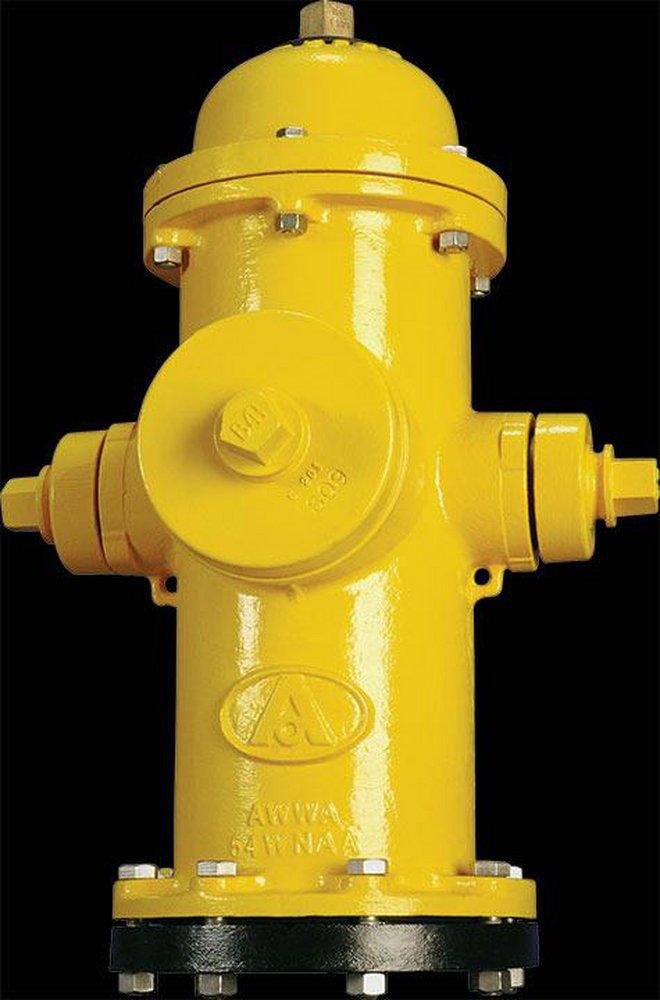

American Darling® B-62-B 5 ft. Mechanical Joint 5-1/4 in. Assembled Fire Hydrant
Package Quantity Info:
EA: 1 IP: 1 CA: 3 PT: 9-
Pick Up: Not available
-
Shipping: Not available
Frequently Purchased Together
Product Details
Product Details
- Bronze seat and bronze drain ring
- Seat tested at 400 psig
- Depth of trench is the nominal distance from ground line to bottom of connecting pipe
- Products sold in select areas only. Please contact your local branch for availability in your area
- Size and shape of operating nut and nut on caps, threading on nozzles and caps and the direction of opening made to specifications
- Cap chains are not furnished unless specified
- Bolts and nuts are rustproof steel ASTM A307 or equivalent, in accordance with AWWA C502
- Working pressure 200 psig, test pressure 400 psig
- Hydrant conforms to AWWA standard C502
- UL listed and approved by FM approvals at 200 psi in allowable configurations
Specifications
- ANSI:
- ANSI 61, ANSI 372, ANSI C550
- ASTM:
- ASTM A-307, ASTM A-126, ASTM B-283, ASTM B-584, ASTM B-763, ASTM A-536 Grade 65-45-12
- AWWA:
- AWWA C-502, AWWA C-550, AWWA C-151
- Collection:
- American Darling® B-62-B
- Depth of Trench:
- 5 ft
- End Connection 1:
- Mechanical Joint
- End Connection 2:
- Mechanical Joint
- End Connections:
- Mechanical Joint
- FM Approved:
- Yes
- Fitting Size 1:
- 5-1/4 in
- Fitting Size 2:
- 5-1/4 in
- Fitting Sizes:
- 5-1/4 in
- Height:
- 28-63/100 in
- Material:
- Ductile Iron, Rubber, Stainless Steel, Brass, Plastic, Bronze
- NSF Certified:
- Yes
- Pressure - Maximum:
- 400 psig
- UL Listed:
- Yes
