6 in. Ductile Iron Flanged PTFE Butterfly Valve

Amri

Acris® 6 in. Ductile Iron Flanged PTFE Butterfly Valve

  • Fast #
  • Part #AIL31KFS9U
  • Item #3063165
  • Manufacturer Part #IL31KFS9
3.1 out of 5 Customer Rating
Brand image

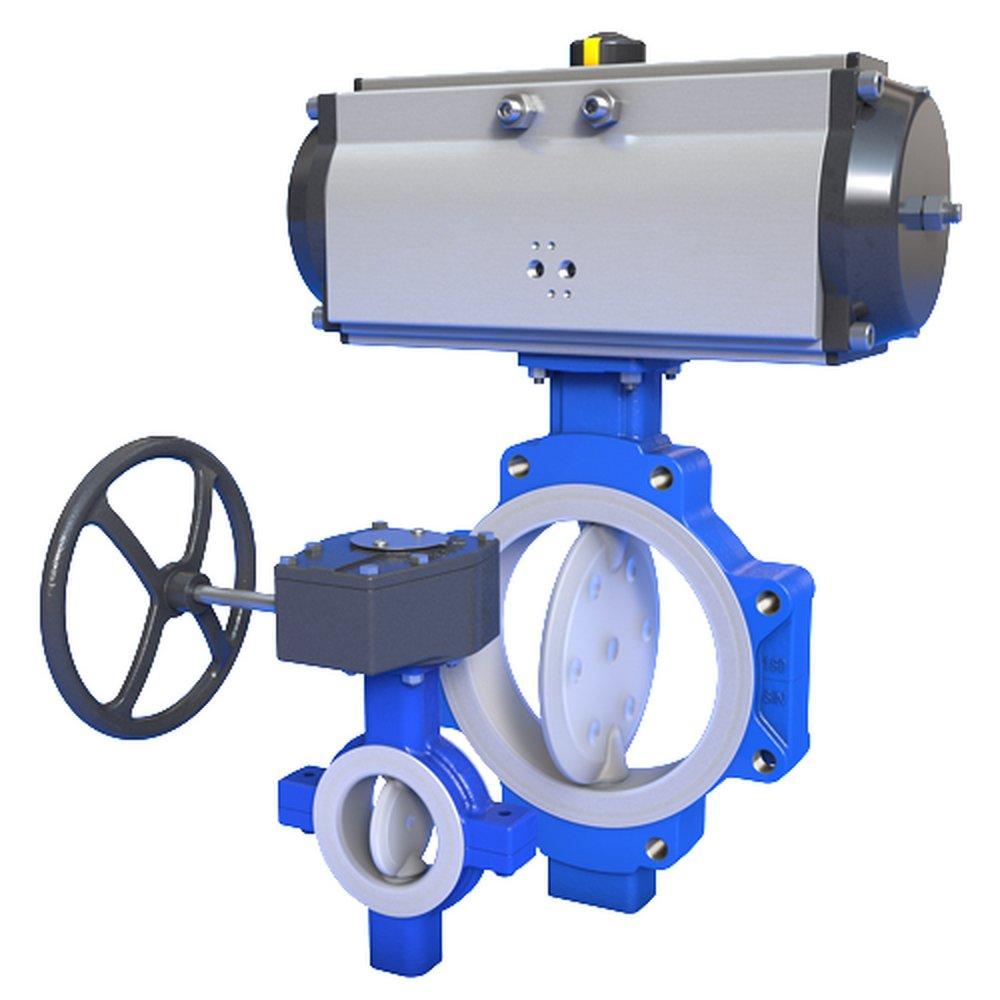

Amri Ductile Iron Flanged PTFE Butterfly Valve
Amri Ductile Iron Flanged PTFE Butterfly Valve
Amri

Acris® 6 in. Ductile Iron Flanged PTFE Butterfly Valve

  • Fast #
  • Part #AIL31KFS9U
  • Item #3063165
  • Manufacturer Part #IL31KFS9
3.1 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Fully PFA lined disc and body provide unsurpassed resistance to corrosion, permeation and microbial contamination for maximum purity and reliability with minimum maintenance
  • Durable, spherically molded PFA liner and matching disc interface to form a tight bidirectional seal
  • Full width 360° energized backup liner provides uniform sealing
  • Acrisius™ live-loaded, stem sealing system self-adjusts to eliminate leak paths and reduce fugitive emissions for long-term, maintenance-free operation. (ISO 15848-1 compliant)
  • Extended PFA liner forms a protective sleeve shielding the stem from corrosive media and eliminating leak paths
  • PFA disc over-molding is mechanically bonded to the base metal for full vacuum capability
  • Streamlined disc engineered for maximum flow
  • High-strength one-piece 17-4 stainless steel disc and stem standard for improved reliability
  • Energized flange seals maintain proper sealing between valve and flange
  • Products sold in select areas only. Please contact your local branch for availability in your area
  • Requires Certification

Documents

SPECIFICATION

Specifications

API:
API 609
ASME:
ASME B16.1 Class 125, ASME B16.1 Class 150
AWWA:
AWWA C-207
Clean Bagged:
No
Collection:
Acris®
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
IAPMO Listed:
No
ISO:
ISO 15848-1, ISO 15848-2, ISO 5211, ISO 5752, ISO F12
Length:
2-1/4 in
Material:
Ductile Iron, Plastic, Stainless Steel
Material Type:
PTFE
NSF Certified:
No
Pressure - Maximum:
150 psi
Pressure Class:
150#
Recommended Valve Application:
Industrial, Water
UL Listed:
No
Valve Body Material:
Ductile Iron
Valve Body Style:
Lug
Valve Disc Material:
Stainless Steel
Valve Seat Material:
PTFE
Valve Size:
6 in
Valve Type:
Butterfly Valve
Width:
10-11/100 in
