1/2 in. Stainless Steel Full Port Butt Weld 600# Ball Valve

You last purchased this on

Apollo Valves

86B-500 Series 1/2 in. Stainless Steel Full Port Butt Weld 600# Ball Valve

  • Fast #
  • Part #A86B50301
  • Item #4516559
  • Manufacturer Part #86B50301
5 out of 5 Customer Rating
Brand image

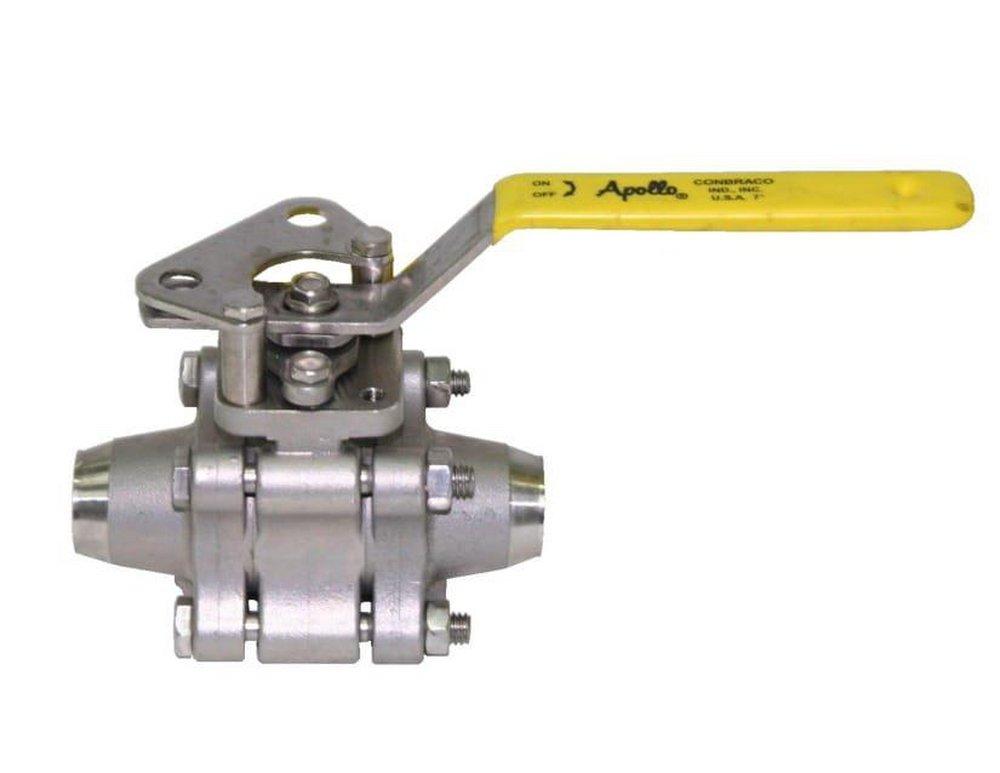

Apollo Valves Silver Stainless Steel Full Port Butt Weld 600# Ball Valve
You last purchased this on

Apollo Valves

86B-500 Series 1/2 in. Stainless Steel Full Port Butt Weld 600# Ball Valve

  • Fast #
  • Part #A86B50301
  • Item #4516559
  • Manufacturer Part #86B50301
5 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Product Details

  • 3-piece construction with enclosed fasteners
  • Full port
  • Stainless steel trim & hardware
  • Swing-out center section
  • Pressure balanced solid ball
  • Compression controlled spiral wound gaskets
  • Anti-blowout one piece bottom entry stem
  • Two-position locking
  • Adjustable multi-piece PTFE “V” style packing
  • Fully machined ISO 5211 mounting
  • Requires Certification

  • Lead Law Compliant

Specifications

API:
API 608
ASME:
ASME B16.25, ASME B16.34, ASME B16.34 Class 600
ASTM:
ASTM A-193 Grade B8, ASTM A-193 Grade B8M3, ASTM A-194 Grade 8, ASTM A-276, ASTM A-351 CF3M, ASTM A-351 CF8M
BAA Compliant:
Yes
Clean Bagged:
No
Collection:
86B-500 Series
Color Finish Name:
Silver, Yellow
End Connection 1:
Butt Weld
End Connection 2:
Butt Weld
End Connections:
Butt Weld
FM Approved:
No
Handle Length (in):
5-3/25 in
Handle Material:
Stainless Steel
Height:
3-1/50 in
IAPMO Listed:
No
ISO:
ISO 5211
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
3-4/5 in
Material:
Stainless Steel
Material Type:
300, CF8M, 316
Maximum Temperature:
500
Minimum Temperature:
-20
NSF Certified:
No
Number of Pieces:
1 Piece
Origin:
Domestic
Pressure - High:
250
Pressure - Maximum:
1500 psi
Pressure Class:
600#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application:
Compressed Air, Natural Gas
Schedule Class:
40
Temperature Range:
up to 500 Deg F
Temperature Rating:
500
UL Listed:
No
Valve Body Material:
Stainless Steel
Valve Body Style:
3 piece
Valve Disc Material:
316 Stainless Steel
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Multi-Seal
Valve Size:
1/2 in
Valve Stem:
Bottom-loaded/Blowout-proof
Valve Type:
Ball Valve
Weight:
2.3 lb
Width:
2-1/50 in
cUPC Certified:
No
