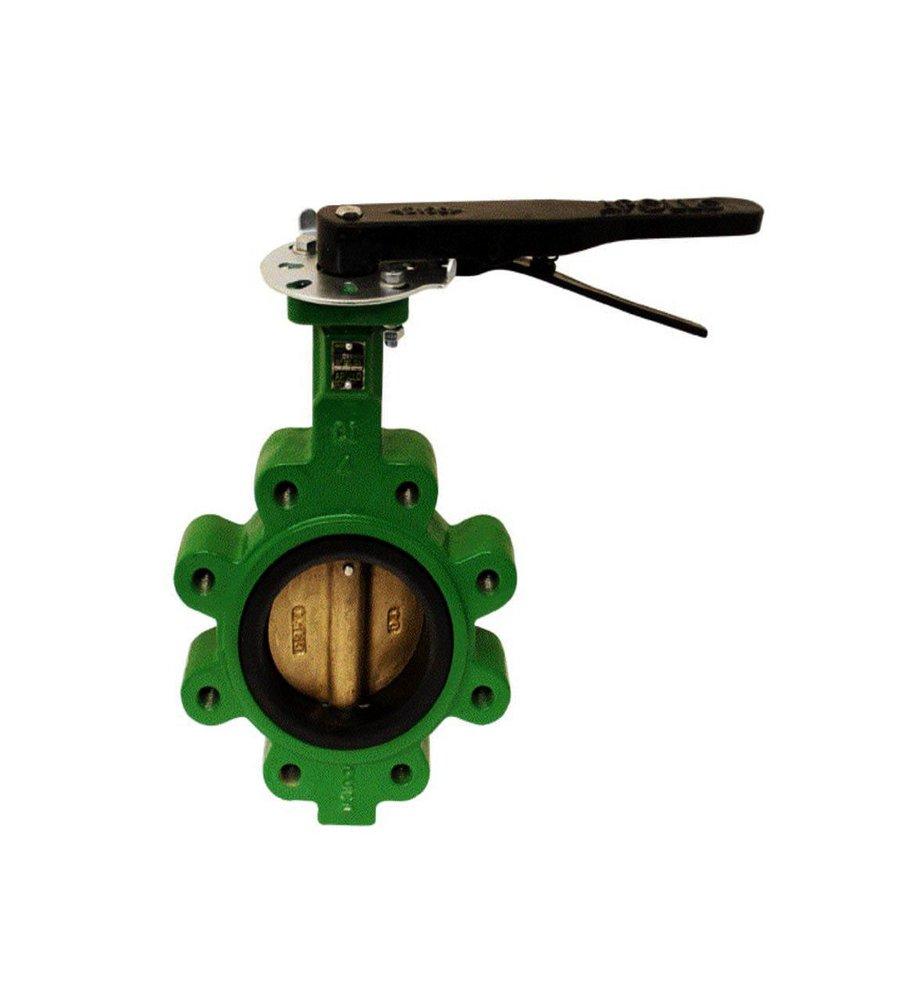

3 in. Cast Iron EPDM Locking Lever Handle Butterfly Valve

You last purchased this on

Apollo Valves

LC149 Series 3 in. Cast Iron EPDM Locking Lever Handle Butterfly Valve

  • Fast #
  • Part #ALC149031
  • Item #4459829
  • Manufacturer Part #LC149031
5 out of 5 Customer Rating
Brand image
You last purchased this on

Apollo Valves

LC149 Series 3 in. Cast Iron EPDM Locking Lever Handle Butterfly Valve

  • Fast #
  • Part #ALC149031
  • Item #4459829
  • Manufacturer Part #LC149031
5 out of 5 Customer Rating

X Points
EACH

Package Quantity Info:

Each: 1 Inner Pack: 1 Pallet: 50
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Product Details

  • Compatible with ANSI 125# & 150# flanges
  • ISO 5211 mounting flange allows choice of Apollo actuators and manual operators
  • "Double-D' stem design
  • Conforms to MSS SP-67 & API 609
  • Extended neck for insulation up to 2 in
  • Suitable for bi-directional dead-end service to full rated pressure
  • Requires Certification
  • Lead Law Compliant


Specifications

ANSI:
ANSI 372, ANSI 61, ANSI 125
API:
API 609
ASTM:
ASTM A126 Class B, ASTM A276, ASTM B148 C95400
Collection:
LC149 Series
End Connection 1:
Lug
End Connection 2:
Lug
End Connections:
Lug
FM Approved:
No
ISO:
ISO 5211
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
MSS:
MSS SP-67
Material:
Cast Iron, Aluminum Bronze, Rubber
Material Type:
EPDM
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Origin:
Global
Pressure - High:
200
Pressure Class:
200#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application:
Potable Water
UL Listed:
No
Valve Body Material:
Cast Iron
Valve Body Style:
Lug
Valve Disc Material:
Aluminum Bronze
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
EPDM
Valve Size:
3 in
Valve Type:
Butterfly Valve
