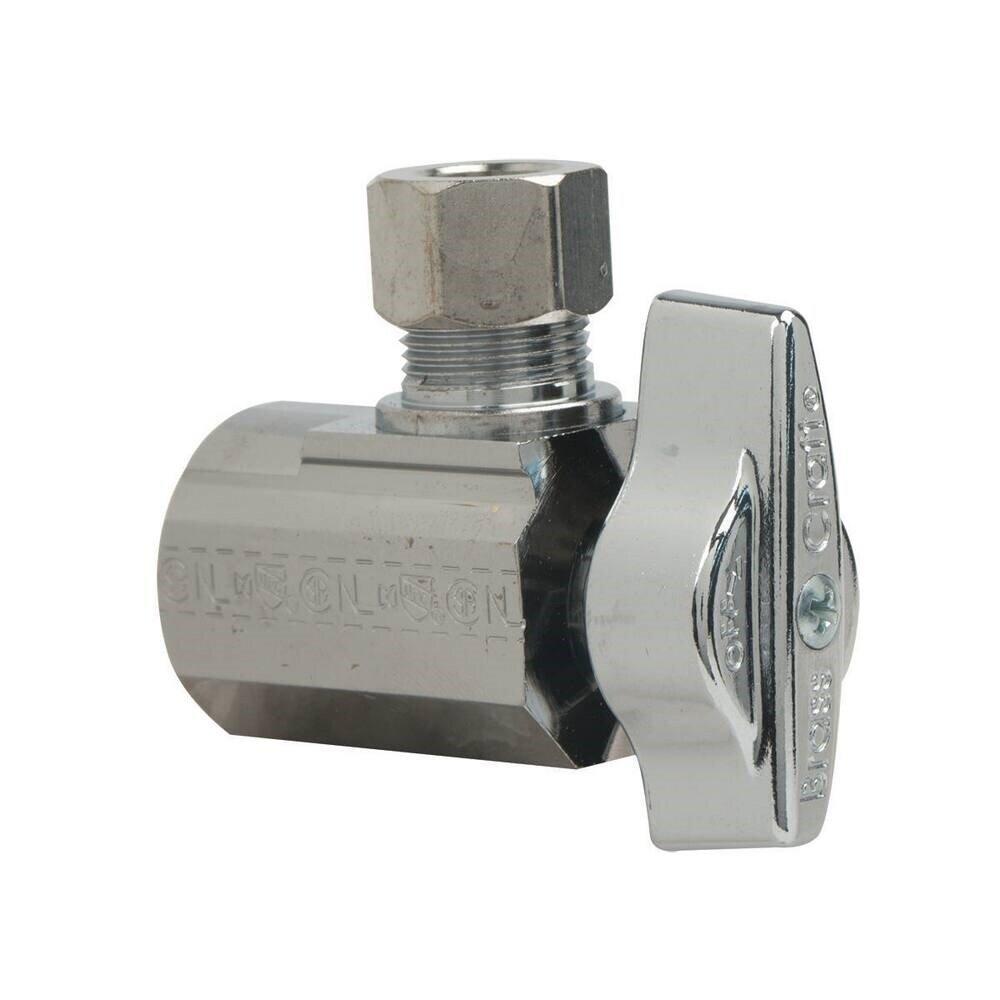

1/2 x 3/8 in. FIPS x OD Compression Angle Supply Stop Valve in Chrome

You last purchased this on

BrassCraft

1/2 x 3/8 in. FIPS x OD Compression Angle Supply Stop Valve in Chrome

  • Fast #
  • Part #BKTR17XC
  • Item #3869336
  • Manufacturer Part #KTR17X C
5 out of 5 Customer Rating
Brand image
BrassCraft Chrome FIPS x OD Compression Angle Supply Stop Valve in Chrome
You last purchased this on

BrassCraft

1/2 x 3/8 in. FIPS x OD Compression Angle Supply Stop Valve in Chrome

  • Fast #
  • Part #BKTR17XC
  • Item #3869336
  • Manufacturer Part #KTR17X C
5 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 5 Case: 60
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: 5 Available in Hilliard, OH
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Product Details

  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • 1/2 in. FIP inlet x 3/8 in. OD comp outlet 1/4-turn angle ball stop
  • Compatible with iron pipe
  • For use in potable water distribution systems and recirculating water systems that produce continuous use temperatures above 115° F
  • Precision-machined brass ball to provide smoother operation without freeze ups even after long periods of non-use
  • Blow-out proof, plated stem is assembled from the inside with double O-rings to help ensure safe, reliable performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Positive 1/4 turn shut-off
  • Chrome finish
  • 100% leak tested to ensure reliable, leak-free performance
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372, ANSI 61
ASME:
ASME A112.18.1
CSA Certified:
CSA B125.1
Color Finish Category:
Chromes
Color Finish Name:
Chrome
End Connection 1:
FPT
End Connection 2:
Compression
End Connections:
FPT x Compression
Handle Material:
Die Cast Zinc
Height:
1-23/25 in
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
2-13/100 in
Material:
Brass, Die Cast Zinc, Plastic
Material Type:
PTFE
Maximum Temperature:
180
Minimum Temperature:
40
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Number of Handles:
Single Handle
Origin:
Domestic
Pressure - Maximum:
125 psi
Recommended Valve Application:
Potable Water
Temperature Range:
40 to 160 Deg F
UL Listed:
No
Valve Body Material:
Brass
Valve Body Style:
1 piece
Valve Seat Material:
PTFE
Valve Size:
1/2 in x 3/8 in
Valve Type:
Angle Supply Stop Valve
Weight:
0.2817 lb
Width:
91/100 in
