1/2 x 3/8 in. Sweat x OD Compression Knurled Oval Handle Straight Supply Stop Valve in Chrome Plated

You last purchased this on

BrassCraft

CS41B Series 1/2 x 3/8 in. Sweat x OD Compression Knurled Oval Handle Straight Supply Stop Valve in Chrome Plated

  • Fast #
  • Part #BCS41BXC
  • Item #3869577
  • Manufacturer Part #CS41BX C
3.2 out of 5 Customer Rating
Brand image

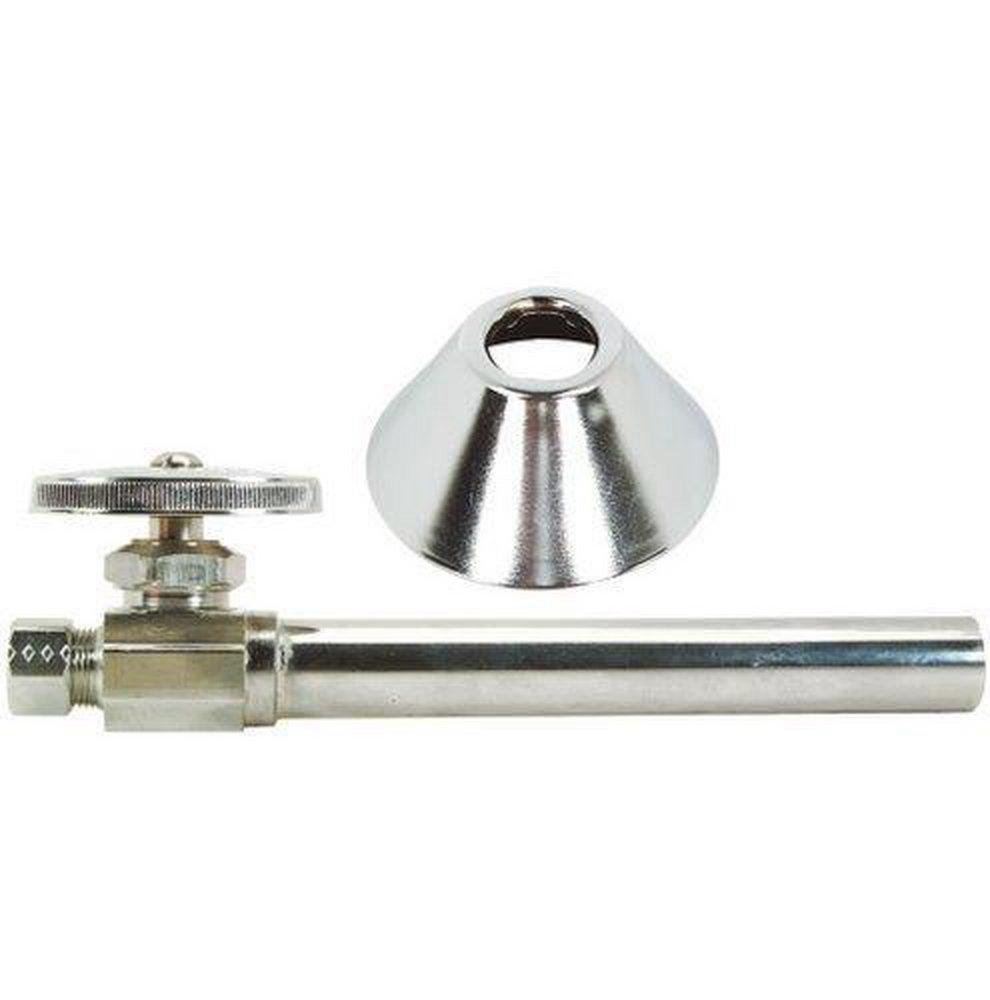

BrassCraft Chrome Plated 1/2 x 3/8 in. Sweat x OD Compression Knurled Oval Handle Straight Supply Stop Valve
You last purchased this on

BrassCraft

CS41B Series 1/2 x 3/8 in. Sweat x OD Compression Knurled Oval Handle Straight Supply Stop Valve in Chrome Plated

  • Fast #
  • Part #BCS41BXC
  • Item #3869577
  • Manufacturer Part #CS41BX C
3.2 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page
Color Finish Name: Chrome Plated Select Color Finish Name

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 30
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Product Details

  • Machined, 1-piece body construction for strength, durability and long-lasting performance
  • 1/2 in. Nom Sweat Inlet x 3/8 in. OD Comp Outlet
  • Compatible with copper
  • For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115°F. For those applications, use our KT™ series ball stops.
  • Multi-turn operation means water flow control with only a few turns of the handle
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Designed to match fixture finish
  • One-piece shut-off mechanism provides smooth on-off operation, Easy-to-remove handle protects against accidental operation during rough-ins
  • For indoor use
  • Pressure rating: 125 psi maximum
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372, ANSI 61
ASME:
ASME A112.18.1
CSA Certified:
CSA B125.1
Collection:
CS41B Series
Color Finish Category:
Chromes
Color Finish Name:
Chrome Plated
End Connection 1:
Sweat
End Connection 2:
OD Compression
End Connections:
Sweat x OD Compression
Handle Material:
Zinc Die Cast
Handle Type:
Knurled Oval
Height:
1-3/4 in
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
6-59/100 in
Material:
Brass
Maximum Temperature:
160
Minimum Temperature:
40
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Origin:
Domestic
Pressure - High:
125
Recommended Valve Application:
Potable Water, Commercial, Residential
Temperature Range:
40 to 160 Deg F
UL Listed:
No
Valve Body Material:
Brass
Valve Body Style:
1 piece
Valve Operator:
Multi-Turn Handle
Valve Size:
1/2 in x 3/8 in
Valve Type:
Straight Supply Stop Valve
Weight:
0.38 lb
Width:
2-3/8 in
