1/2 x 3/8 in. Compression x OD Compression Angle Supply Stop Valve in Chrome

You last purchased this on

BrassCraft

G2CR19 Series 1/2 x 3/8 in. Compression x OD Compression Angle Supply Stop Valve in Chrome

  • Fast #
  • Part #BG2CR19XC
  • Item #3869576
  • Manufacturer Part #G2CR19X C
5 out of 5 Customer Rating
Brand image

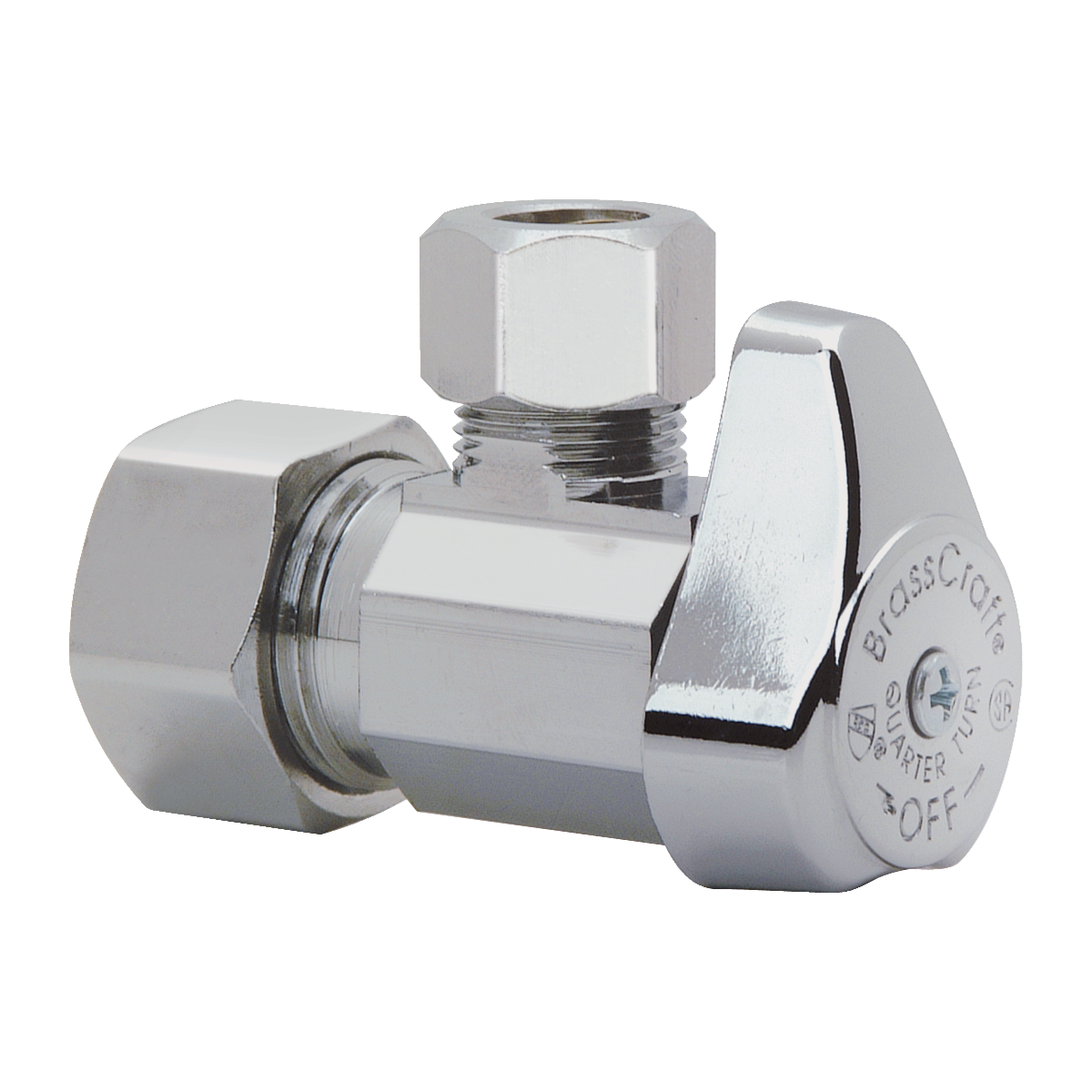

BrassCraft Chrome 1/2 x 3/8 in. Compression x OD Compression Angle Supply Stop Valve
You last purchased this on

BrassCraft

G2CR19 Series 1/2 x 3/8 in. Compression x OD Compression Angle Supply Stop Valve in Chrome

  • Fast #
  • Part #BG2CR19XC
  • Item #3869576
  • Manufacturer Part #G2CR19X C
5 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page
Color Finish Name: Chrome Select Color Finish Name

Package Quantity Info:

Each: 1 Inner Pack: 5 Case: 60 Pallet: 5760
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping

Frequently Purchased Together

Product Details

Product Details

  • Machined brass ball is specially engineered and mated with PTFE seats to provide smooth operation
  • Two high-performance O-rings withstand high temperatures
  • Forged one-piece brass body provides strength, durability, and long -lasting performance
  • Brass stems are assembled from the inside out with two O-rings to ensure safe, reliable performance
  • Plated stems provide corrosion resistance and prevent O-ring damage
  • Metal handle is designed for durability, corrosion resistance and a sleek appearance
  • Easy -to -remove handle with screw attachment helps protect against accidental stop operation during rough -ins
  • 100% leak tested
  • Lead-free
  • Made in USA
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372, ANSI 61
ASME:
ASME A112.18.1
ASTM:
ASTM F-876, ASTM F-877
CSA Certified:
CSA B125.1
Collection:
G2CR19 Series
Color Finish Category:
Chromes
Color Finish Name:
Chrome
End Connection 1:
Compression
End Connection 2:
Compression
End Connections:
Compression
Handle Material:
ABS
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
2-4/25 in
Material:
Brass, Plastic
Material Type:
ABS
Maximum Temperature:
160
Minimum Temperature:
40
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Number of Handles:
Single Handle
Origin:
Domestic
Pressure - Maximum:
125 psi
Recommended Valve Application:
Potable Water
Temperature Range:
40 to 160 Deg F
UL Listed:
No
Valve Body Material:
Brass
Valve Body Style:
1 piece
Valve Size:
1/2 in x 3/8 in
Valve Type:
Angle Supply Stop Valve
Weight:
0.21277 lb
Width:
2-1/4 in
