12 in. Stainless Steel Repair Clamp

You last purchased this on

Dresser TPS

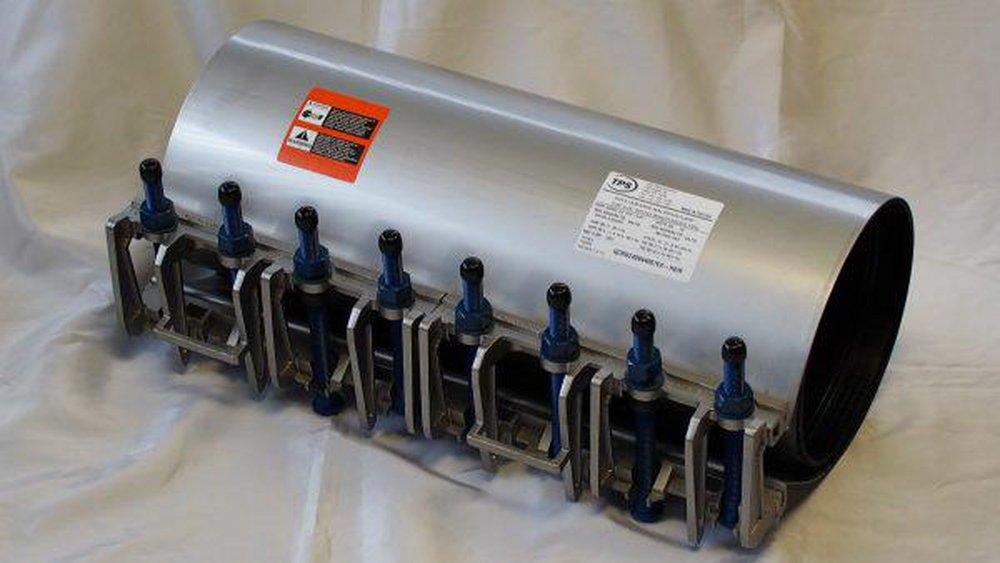

Quick Cam® 12 in. Stainless Steel Repair Clamp

  • Fast #
  • Part #TQCRS151356001EX
  • Item #7427728
  • Manufacturer Part #QCRS151356001EX
4.4 out of 5 Customer Rating
Brand image
Dresser TPS Stainless Steel Repair Clamp
Dresser TPS Stainless Steel Repair Clamp
Dresser TPS Stainless Steel Repair Clamp
Dresser TPS Stainless Steel Repair Clamp
You last purchased this on

Dresser TPS

Quick Cam® 12 in. Stainless Steel Repair Clamp

  • Fast #
  • Part #TQCRS151356001EX
  • Item #7427728
  • Manufacturer Part #QCRS151356001EX
4.4 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1
Log in or Create an Account to see product availability.
  • Pick Up: Not available
  • Shipping: Not available

Frequently Purchased Together

Product Details

Product Details

  • The Quick-Cam repair clamp features a number of distinct advantages, including a double range body, allowing for a substantial reduction in inventory
  • There is no need for extra on-hand sizes to accommodate the local market requirements for repairing breaks, holes and splits in water, sewer, oil and natural gas piping systems
  • The Quick-Cam repair clamp features a patented design that allows for rapid sealing under full or reduced line pressure conditions
  • A specialized multi-O-ring seal bead system, combined with a deep waffled mat type seal, work together to provide best-in-class sealing
  • A separate double O-ring seal bead system, located under the bridge plate, allows for super rapid sealing while providing a secure seal, even when the pipe is fully broken
  • The Quick-Cam repair clamp provides a 360° seal on all common pipe materials including: Steel, ductile iron, cast iron, PVC, asbestos cement, and high density polyethylene (HDPE)
  • The Quick-Cam repair clamp includes an easy-to-install lug system, complete with an integrated handle for ease of handling and semi-fixed bolts for trouble-free tightening, allowing quick bolt up and installation
  • The lugs may be easily removed to allow the clamp to be slid without difficulty under the pipe located in tight places
  • The lugs are available in either stainless steel or ductile iron, making the Quick-Cam repair clamp a competitive option to meet all field requirements
  • Nuts, bolts and washers are also available in either stainless or fluorocarbon coated carbon steel materials
  • Requires Certification

Documents

SPECIFICATION

Specifications

ANSI:
ANSI 61
ASTM:
ASTM A-351 Grade CF8, ASTM A-380, ASTM D-2000
AWWA:
AWWA C-230
Application:
Natural Gas, Oil, Sewer, Water
Coating:
Epoxy
Collection:
Quick Cam®
End Connection 1:
CC
End Connections:
CC
Fits Pipe Size:
12 in
Material:
Stainless Steel, Rubber
Material Type:
304, NBR
NSF:
NSF 61
NSF Certified:
Yes
Product Type:
Repair Clamp
Range (in):
12.62 in - 13.56 in
Width:
15 in
