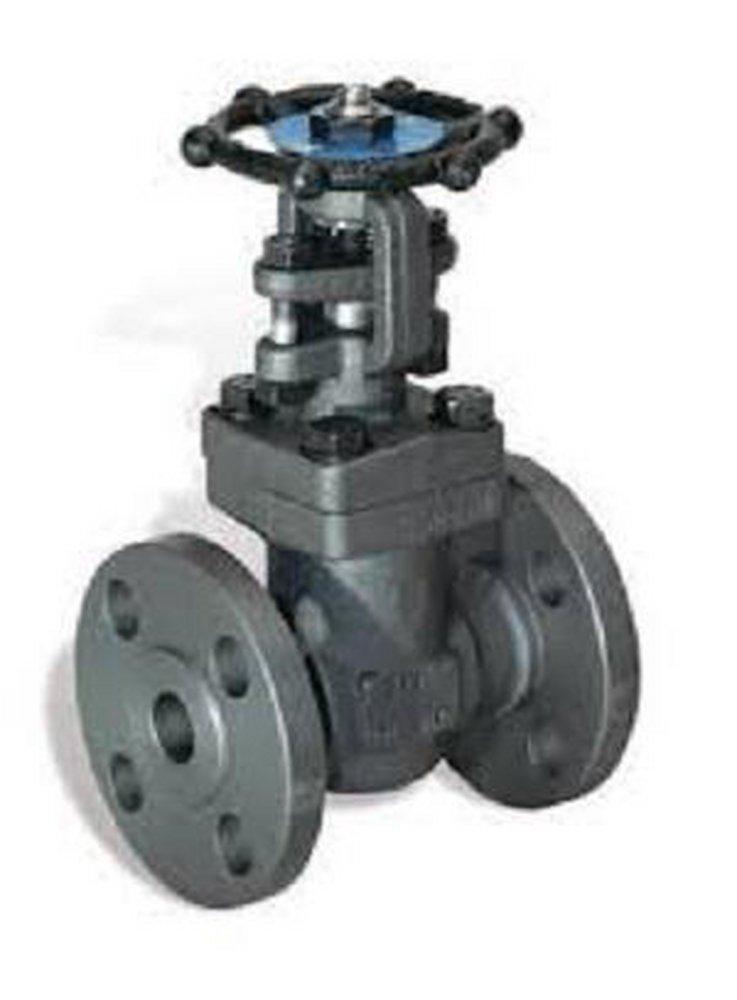

2 in. 300# RF FLG WCB T8 Gate Valve Carbon Steel Body, Trim 8, Bolted Bonnet 23XUF

You last purchased this on

DSI Forum Energy Technologies

2 in. 300# RF FLG WCB T8 Gate Valve Carbon Steel Body, Trim 8, Bolted Bonnet 23XUF

  • Fast #
  • Part #D23XUFK
  • Item #2443290
  • Manufacturer Part #23XUF 2
3.1 out of 5 Customer Rating
Brand image
DSI Forum Energy Technologies 300# RF FLG WCB T8 Gate Valve Carbon Steel Body, Trim 8, Bolted Bonnet 23XUF
You last purchased this on

DSI Forum Energy Technologies

2 in. 300# RF FLG WCB T8 Gate Valve Carbon Steel Body, Trim 8, Bolted Bonnet 23XUF

  • Fast #
  • Part #D23XUFK
  • Item #2443290
  • Manufacturer Part #23XUF 2
3.1 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Product Details

  • DSI standard cast steel gate, globe and check valves are designed and manufactured to ensure leakage of less than 100 ppm (parts per million) of volatile organic compounds (VOC) as tested pursuant to generally accepted good engineering practices for verifying fugitive emissions
  • Extensive base line laboratory testing (static and cycle testing) has been performed establishing critical design parameters necessary to achieve low emission sealing in the DSI stem packing seal area for gate and globe valves and in the bonnet gasket sealing area (cover gasket for check valves)
  • In-house testing procedure has been developed and is periodically performed to ensure that standard product design and manufacturing criteria consistently result in the DSI gate, globe and check valve meeting less than 100 ppm VOC leakage prior to shipment
  • Requires Certification

Documents

SPECIFICATION

Specifications

ANSI:
ANSI B16.10, ANSI B16.25, ANSI B16.34, ANSI B16.5
API:
API 598, API 600
ASME:
ASME B31.1, ASME B31.3
ASTM:
ASTM A105, ASTM A182, ASTM A193, ASTM A194, ASTM A216 Grade WCB, ASTM A276
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
Handle Length (in):
7-87/100 in
Handle Material:
Carbon Steel
Length:
8-1/2 in
MSS:
MSS SP-101
Material:
Carbon Steel, Cobalt-Chromium Alloy, Stainless Steel
Material Type:
A216-WCB, CR 13, Stellite 6
Maximum Temperature:
1000
NSF Certified:
No
Pressure - High:
300
Pressure Class:
300#
UL Listed:
No
Valve Body Material:
Carbon Steel
Valve Body Style:
Flanged
Valve Bonnet Type:
Bolted
Valve Operator:
Handwheel
Valve Port Opening:
Standard Port
Valve Seat Material:
Stellite, 13% Cr
Valve Size:
2 in
Valve Stem:
Outside
Valve Type:
Gate Valve
