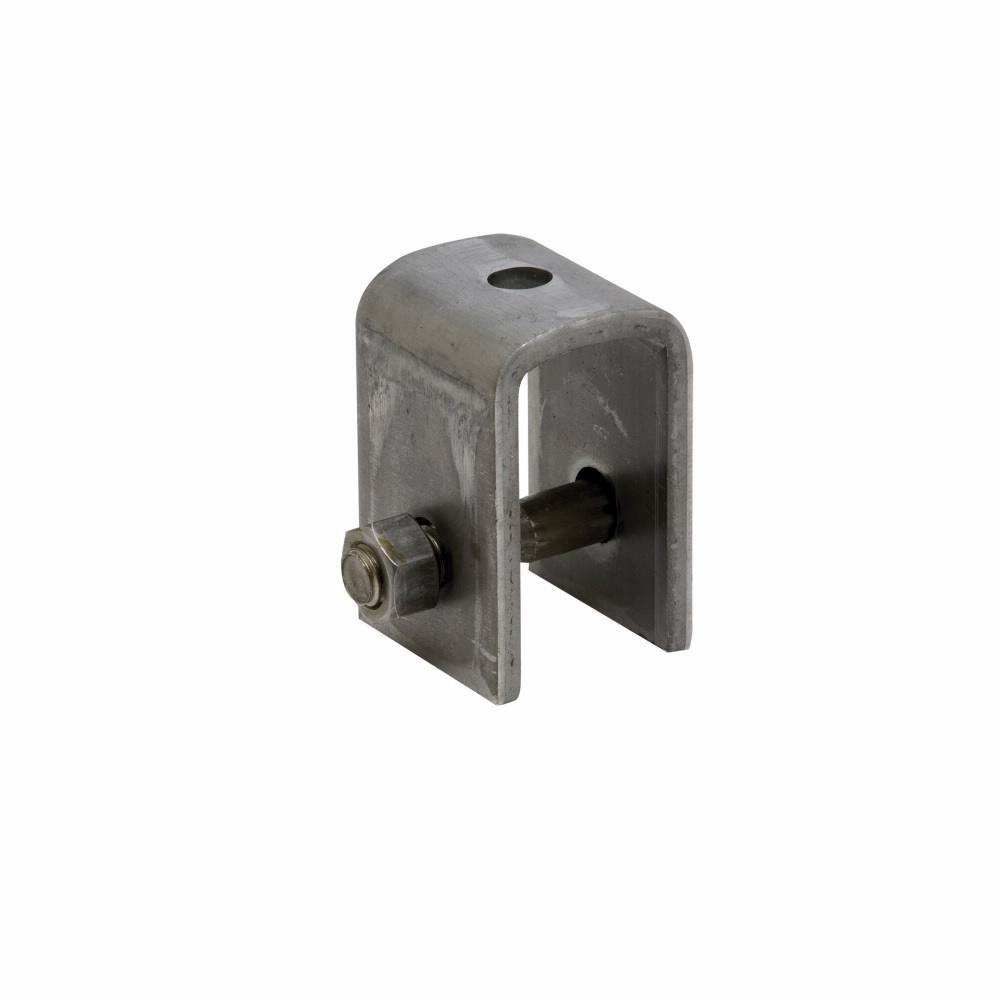

3/4 in. Steel Plain 3-1/8 in. Welded Beam Attachment
You last purchased this on
Eaton B-Line Series
3/4 in. Steel Plain 3-1/8 in. Welded Beam Attachment
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 10 Pallet: 900
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
-
Pick Up: 0 Available in Hilliard, OH - Available in 1 store nearby
-
Shipping: Available for immediate shipment
Purchase history
Eaton B-Line Series
3/4 in. Steel Plain 3-1/8 in. Welded Beam Attachment
78101103885
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Welded beam attachment is designed for attaching hanger rod to the bottom of structural steel where heavy loads and large hanger rod sizes are required. Can be welded in place in either the upright or inverted position
- MSS SP-69 & SP-58, type 22
- See B-Line series pipe hanger catalog for design loads and maximum temperatures
- 3.1250" H x 3.1250" L x 3.1250" W
- 3230 lbs. load cap
- Steel
Specifications
- ANSI:
- ANSI SP-58 Type 22, ANSI SP-69 Type 22
- Application:
- Residential
- Coating:
- Plain
- Color Finish Category:
- Blacks
- Color Finish Name:
- Black
- Fits Pipe Size:
- 4 in
- Height:
- 3-1/8 in
- Length:
- 3-1/8 in
- MSS:
- MSS SP-58 Type 22, MSS SP-69 Type 22
- Material:
- Steel
- Product Type:
- Welded Beam Attachment
- Rod Size (in):
- 3/4 in
- Thickness:
- 0.375 in
- Width:
- 2-1/2 in
- Work Load Limit:
- 3230 lb
