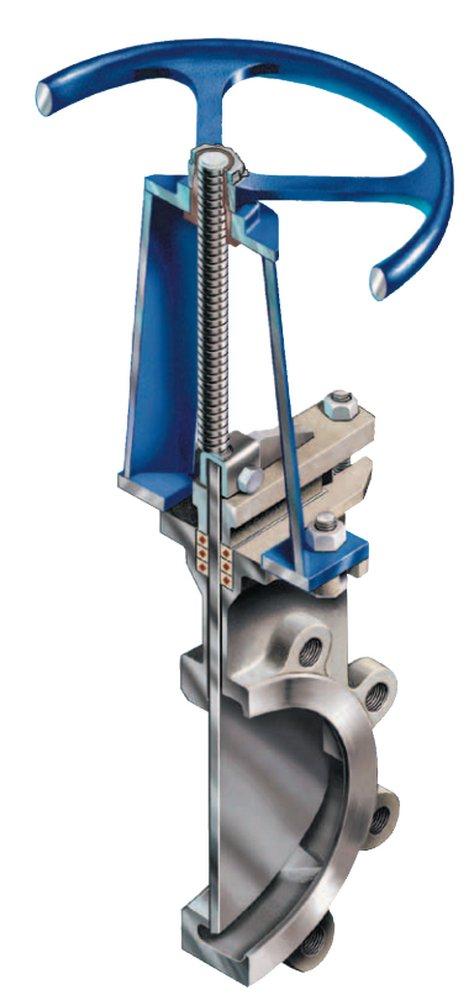

6 in. 316L Stainless Steel Heavy Wall High Performance Knife Gate Valve
You last purchased this on
Fabri Valve
XS150 6 in. 316L Stainless Steel Heavy Wall High Performance Knife Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
-
Pick Up: Not available
-
Shipping: Not available
Purchase history
Fabri Valve
XS150
6 in. 316L Stainless Steel Heavy Wall High Performance Knife Gate Valve
XS150
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- The Fabri-Valve XS150 high performance knife gate valve features a robust perimeter seal that provides bi-directional bubble tight shutoff
- The perimeter seal is double-locked in the valve body to securely retain the perimeter seal in the seal groove even during the most demanding applications
- The perimeter seal has shoulders, which mechanically retain (lock) the seal in the seal groove
- The tab on the perimeter seal acts as the body joint seal and eliminates the possibility of body joint leakage caused by pipe stresses
- The tab also helps retain the perimeter seal in the seal groove (secondary lock)
- The seal groove is specially designed to prevent seal pull-out but also allows the seal to move and prevent over-compression
Specifications
- ANSI:
- ANSI 70-2, ANSI Class 125, ANSI Class 150
- ASME:
- ASME B16.34 1996
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- MSS:
- MSS SP-135
- Material:
- Stainless Steel, Rubber
- Material Type:
- 316, Viton®
- Pressure - Maximum:
- 275 psi
- Pressure Class:
- 275#
- Recommended Valve Application:
- Water
- Valve Body Material:
- 316 Stainless Steel
- Valve Body Style:
- 1 piece
- Valve Operator:
- Hand Wheel
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Viton®
- Valve Size:
- 6 in
- Valve Stem:
- Non-rising
- Valve Type:
- Knife Gate Valve
