This product has been replaced by

3 in. Ductile Iron Flanged Lug Viton Lever Handle Butterfly Valve

FNW® 3 in. Ductile Iron Flanged Lug Viton Lever Handle Butterfly Valve
Manufacturer Part #FNW832VM

FNW®

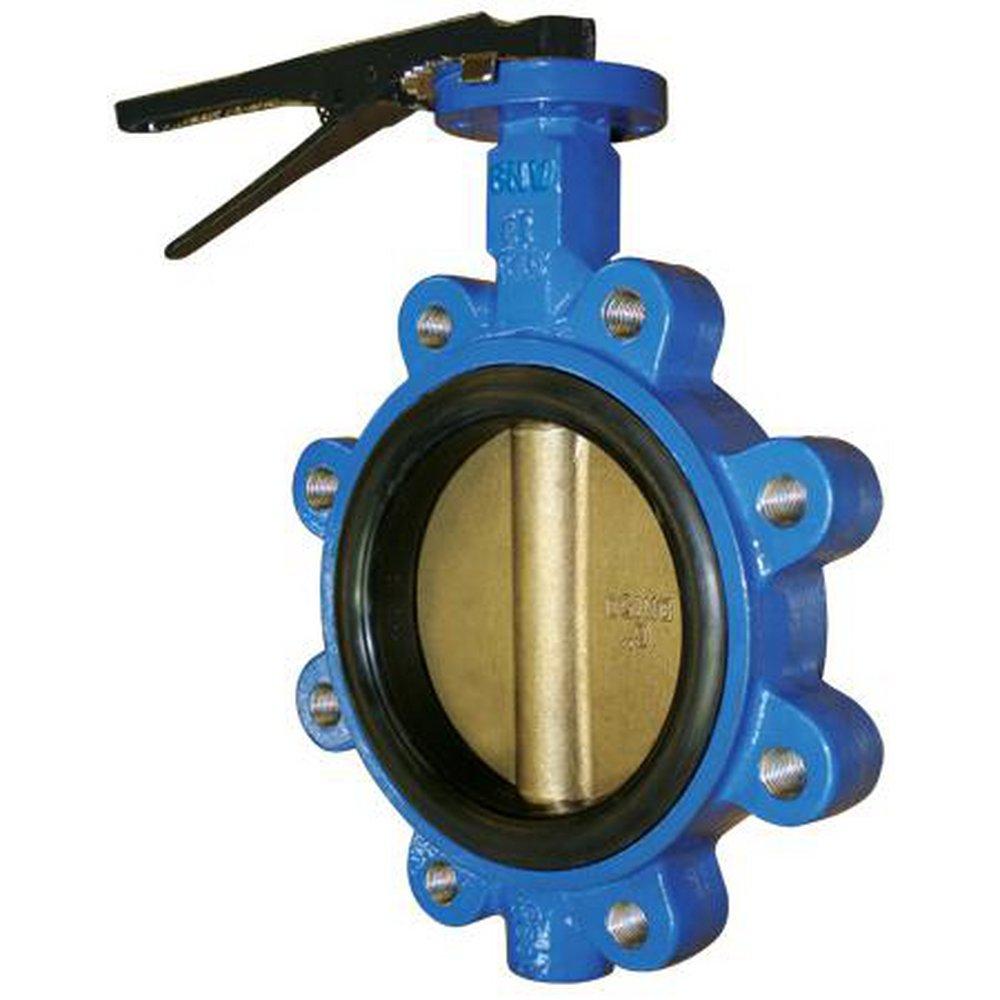

FNW® Ductile Iron Viton® Locking Lever Handle Butterfly Valve

This product has been replaced by

3 in. Ductile Iron Flanged Lug Viton Lever Handle Butterfly Valve

FNW® 3 in. Ductile Iron Flanged Lug Viton Lever Handle Butterfly Valve
Manufacturer Part #FNW832VM

FNW®

Fast #
Part #FNW732VM
Item #1851098
Manufacturer Part #732V

$248.16

EACH

Valve Size: 3 in

Add $45.00 more to cart to get FREE Shipping

Pick Up: Not available
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Resilient seated butterfly valve
Designed for 125/150 lbs flanges
Standard 316ss disc and stem offers superior strength and chemical resistance
Ribbed 1-piece body for high strength and minimum weight
Secured stem retainer plate for blowout-proof protection and also allows operator removal with valve in line
High strength two-piece stem eliminates taper pins and disc screws from flow path
Cartridge style seat permits easy change without special tools
Dual PTFE shaft bearings for reduced torque and improved stem alignment
Low maintenance design
Lead-Free

Lead Law Compliant

Documents

PARTS

INSTALLATION

SPECIFICATION

WARRANTY

Specifications

ANSI:: ANSI B16.1

API:: API 609A

ASTM:: ASTM A536

Coating:: Epoxy

Collection:: 732 Series

End Connection 1:: Flanged

End Connection 2:: Flanged

End Connections:: Flanged x Flanged

FM Approved:: No

Height:: 11-2/5 in

ISO:: ISO 5211

Lead Law Compliance Level:: Lead Law Compliant and Certified

Lead Law Compliant:: Yes

Length:: 1-64/79 in

MSS:: MSS SP-61, MSS SP-67

Material:: Ductile Iron

Maximum Temperature:: 320

Minimum Temperature:: -14

NSF:: NSF 61-G, NSF 372

NSF Certified:: Yes

Pressure - Maximum:: 255 psi

Pressure Class:: 255#

Recommended Valve Application:: Water

UL Listed:: No

Valve Body Material:: Ductile Iron

Valve Body Style:: Lug

Valve Disc Material:: Stainless Steel

Valve Operator:: Lever Handle

Valve Seat Material:: FKM

Valve Size:: 3 in

Valve Stem:: Blowout-proof

Valve Type:: Butterfly Valve
