This product requires certification to purchase.

15-55F Circulator Pump, 1/16 HP, 115V

This product has been replaced by

1/20 HP 115V Cast Iron Circulator Pump
Grundfos UPSe 15-58F 1/20 HP 115V Cast Iron Circulator Pump
Grundfos

ALPHA1 Series 15-55F Circulator Pump, 1/16 HP, 115V

  • Fast #
  • Part #G99287256
  • Item #7374392
  • Manufacturer Part #99287256
5 out of 5 Customer Rating
Brand image

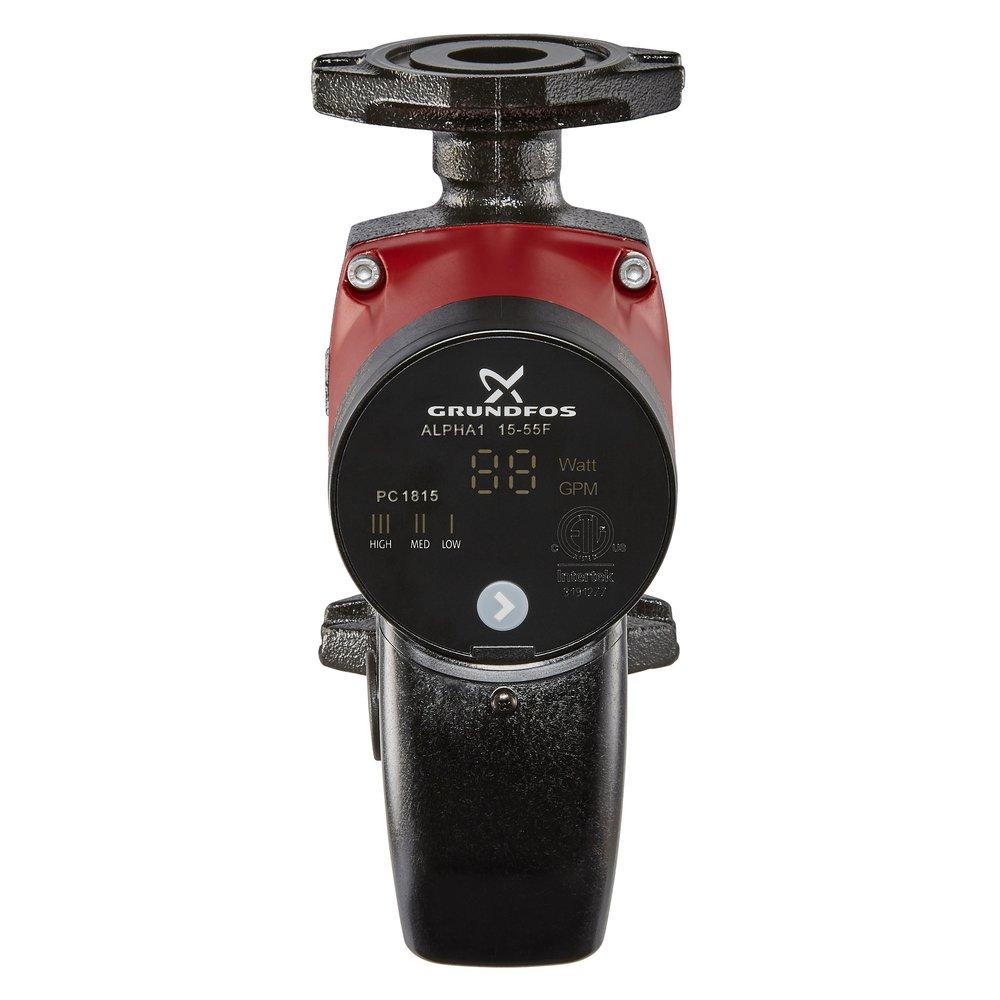

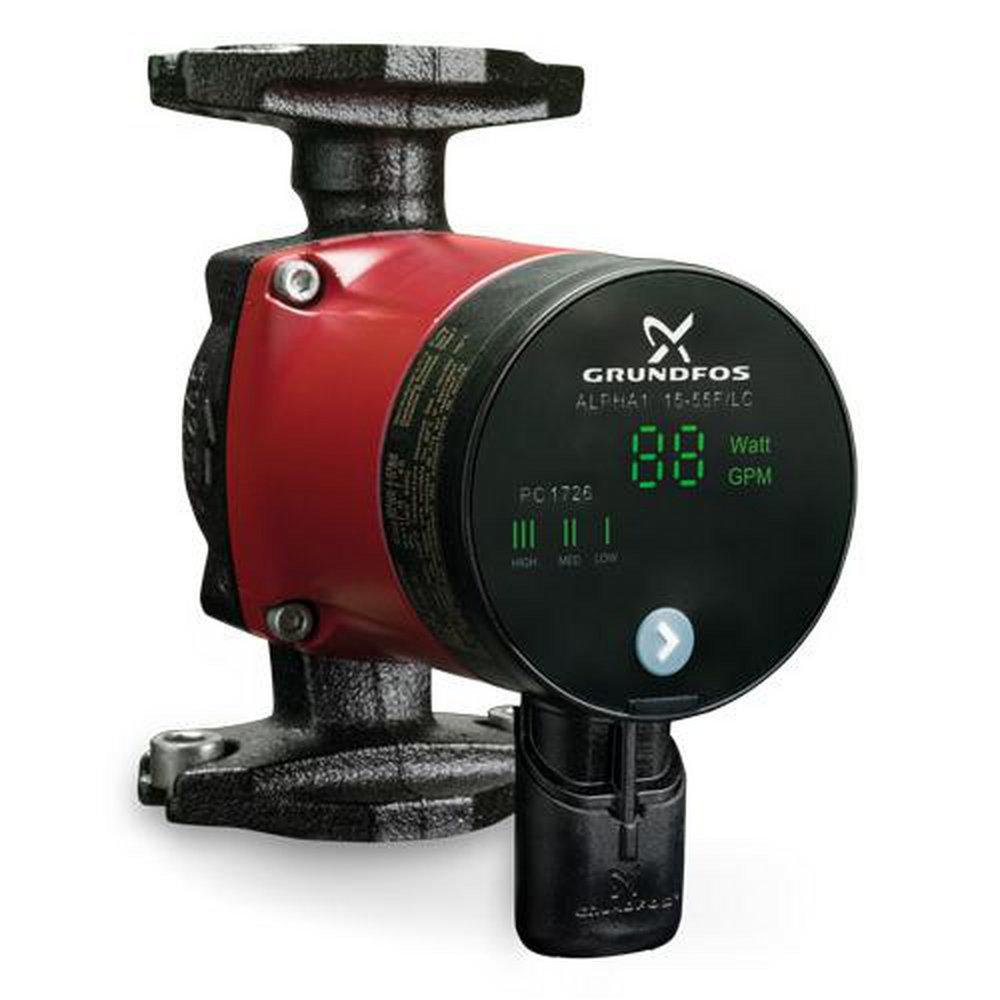

Grundfos Red Circulator Pump with Terminal Box
Grundfos Red Circulator Pump with Terminal Box
Grundfos Red Circulator Pump with Terminal Box
Grundfos Red Circulator Pump with Terminal Box
Grundfos Red Circulator Pump with Terminal Box
Grundfos Red Circulator Pump with Terminal Box

This product has been replaced by

1/20 HP 115V Cast Iron Circulator Pump
Grundfos UPSe 15-58F 1/20 HP 115V Cast Iron Circulator Pump
Grundfos

ALPHA1 Series 15-55F Circulator Pump, 1/16 HP, 115V

  • Fast #
  • Part #G99287256
  • Item #7374392
  • Manufacturer Part #99287256
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Energy efficient permanent magnet motor
  • Three constant pressure settings
  • Available with either cast iron or stainless steel pump housing
  • LED display shows current energy consumption and estimated flow
  • Integrated check valve
  • Available with either Line cord or terminal box connection
  • Flanged connection with nut capture feature for quick installation
  • Magnetite-resistant design helps prevent deposits and blockages with robust ceramic shaft, ceramic bearing rings, and stainless steel bearing plate
  • Robust startup feature enables the pump to continuously attempt to restart in blocked rotor conditions
  • Frequency: 60 Hz
  • Requires Certification

Specifications

AMP:
0.65
ANSI:
ANSI 372, ANSI 61
Blower Type:
Variable Speed
Collection:
ALPHA1 Series
Depth:
7-5/8 in
Discharge:
1-1/2 in
Discharge Pressure:
7.8134375
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
Energy Star Compliant:
No
Flow Rate:
10.2 gpm
Height:
6-1/2 in
Horsepower:
3/50 hp
IAPMO Listed:
No
Impeller:
Composite
Length:
6-1/2 in
Material:
Cast Iron
Maximum Feet of Head:
18.044895
Maximum Temperature:
230
Minimum Temperature:
36
NSF Certified:
No
Origin:
Domestic
Power Source:
Electric
Pressure - Maximum:
150 psi
Product Type:
Circulator Pump
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Pump Application:
Heating
Pump Body Material:
Cast Iron
Pump Motor Type:
ECM-Permanent Magnetic
Pump Mounting:
In-Line
Pump Phase:
1
Pump Stage:
1
UL Listed:
No
Volts:
115V
Watts:
45 W
Weight:
6.34 lb
Width:
3-41/50 in
