This product requires certification to purchase.

20 in. 15% Silver 1 lb. Brazing Rod (28 Sticks)

You last purchased this on

Harris®

Stay-Silv® 20 in. 15% Silver 1 lb. Brazing Rod (28 Sticks)

  • Fast #
  • Part #H15620F1
  • Item #4514011
  • Manufacturer Part #15620F1
4.3 out of 5 Customer Rating
Brand image

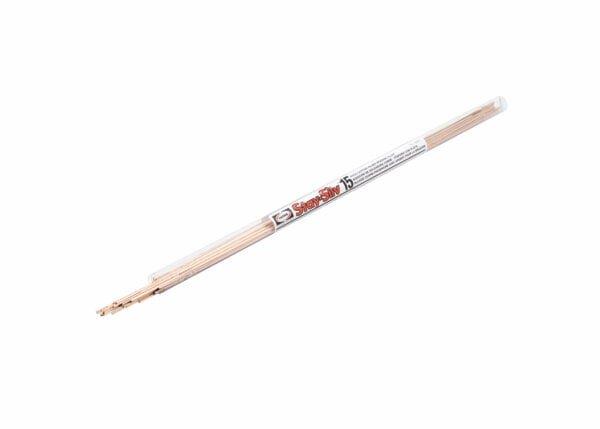

Harris® Copper Alloy Stick Tube (Pack of 28)
You last purchased this on

Harris®

Stay-Silv® 20 in. 15% Silver 1 lb. Brazing Rod (28 Sticks)

  • Fast #
  • Part #H15620F1
  • Item #4514011
  • Manufacturer Part #15620F1
4.3 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 25 Pallet: 2000
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: 3 Available in Hilliard, OH
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Product Details

  • Popular choice for copper brazing air conditioning and refrigeration connections
  • Flows into tight connections when heated above its liquidus temperature
  • Wide melting range allows operators to fill loose connections and "cap" or "build-up" around the finished joint. When heated above its liquidus it will penetrate tight connections.
  • Popular brazing filler metal for HVAC and refrigeration connections
  • Recommended joint clearance of 0.003 in. - 0.006 in. (0.08 mm - 0.15 mm)
  • Flux not required for copper brazing as it is self-fluxing. For brazing brass or copper-to-brass Stay-Silv® white flux is suitable for most applications. Harris Eco Smart® boric acid free flux, powder or paste, is an excellent choice to promote sound brazed assemblies
  • Corrosion resistance is generally similar to the copper base metal, but phosphorus containing alloys, including Stay-Silv® 15, should not be used if the braze is exposed to sulfur or sulfur compounds in service
  • Not recommended for brazing steel or other ferrous metals due to sufficient lack of joint ductility
  • Suitable for brazing low nickel (10% maximum) copper/nickel base metals
  • Complies with the EU Reach & RoHS directive
  • Requires Certification

Documents

SPECIFICATION

Specifications

Collection:
Stay-Silv®
Length:
20 in
Material:
Copper
Number of Pieces:
28 Piece
Product Type:
Brazing Filler Metal Alloy
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Tool Type:
Brazing Rod
Weight:
1.1 lb
Width:
1/8 in
