2 hp 208/230 V Grinder Pump with 1 Pump Housing

You last purchased this on

Liberty Pumps

LSG Series 2 hp 208/230 V Grinder Pump with 1 Pump Housing

  • Fast #
  • Part #LLSG202RE
  • Item #3460973
  • Manufacturer Part #LSG202-RE
5 out of 5 Customer Rating
Brand image

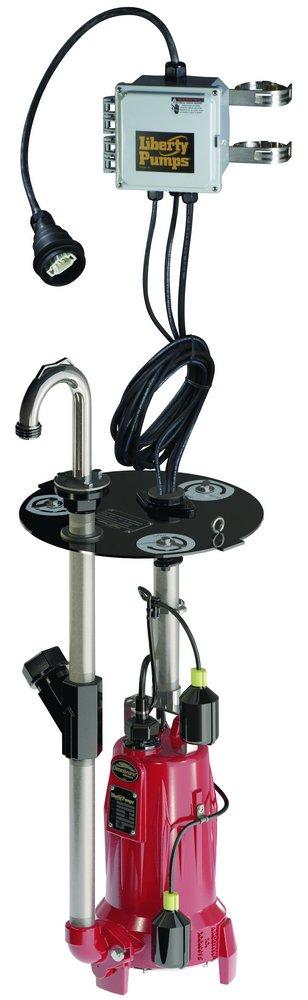

Liberty Pumps Red 2 hp Grinder Pump with 1 Pump Housing
You last purchased this on

Liberty Pumps

LSG Series 2 hp 208/230 V Grinder Pump with 1 Pump Housing

  • Fast #
  • Part #LLSG202RE
  • Item #3460973
  • Manufacturer Part #LSG202-RE
5 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
  • Pick Up: Not available
  • Shipping: Not available

Frequently Purchased Together

Product Details

Product Details

  • Retro-fit system for E/One grinder package
  • Fully assembled replacement package ready to drop-in-place
  • IP68 Waterproof junction box contains motor contactor and terminal strip
  • Includes floats, piping and replacement cover
  • Heavy-duty cast iron anti-siphon check valve
  • Alarm float works as a redundant "on" float and will sound alarm and activate pump in the event of main switch failure
  • Stainless steel piping and discharge elbow
  • Single stage for LSG-Series
  • Fits GO200 & GP2000
  • Requires Certification

Specifications

AMP:
15
Brand Model Compatibility:
Omnivore Grinder Pump
Built-In Grinder:
Yes
CSA Certified:
CSA 22.2 No. 108
Coating:
Powder Coated
Collection:
LSG Series
Color Finish Category:
Reds
Color Finish Name:
Red, Black, Grey
Cord Length:
10 ft
Cover Included:
No
Diameter:
18-1/5 in
Discharge:
1-1/4 in
Discharge Configuration:
Horizontal
End Connection 1:
FNPT
End Connections:
FNPT
Fitting Size 1:
1-1/4 in
Fitting Sizes:
1-1/4 in
Flow Rate:
50 gpm
Height:
19-16/25 in
Horsepower:
2 hp
Impeller:
Vortex
Length:
10-3/10 in
Material:
Cast Iron
Maximum Feet of Head:
110
Maximum Temperature:
104
Phase:
Single Phase
Power Source:
Electric
Proposition 65:
WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birthdefects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Pump Body Material:
Cast Iron
Pump Motor Type:
Thermally Protected
Pump Mounting:
Free Standing
Pump Phase:
1
Pump Stage:
1
RPM:
3450
Turn On/Turn Off Levels:
Turn-on 15 in/Turn-off 8 in
UL Listed:
UL 778
VA Cat 60 Hz:
230
Volts:
208/230V
Weight:
117 lb
Width:
16-1/4 in
