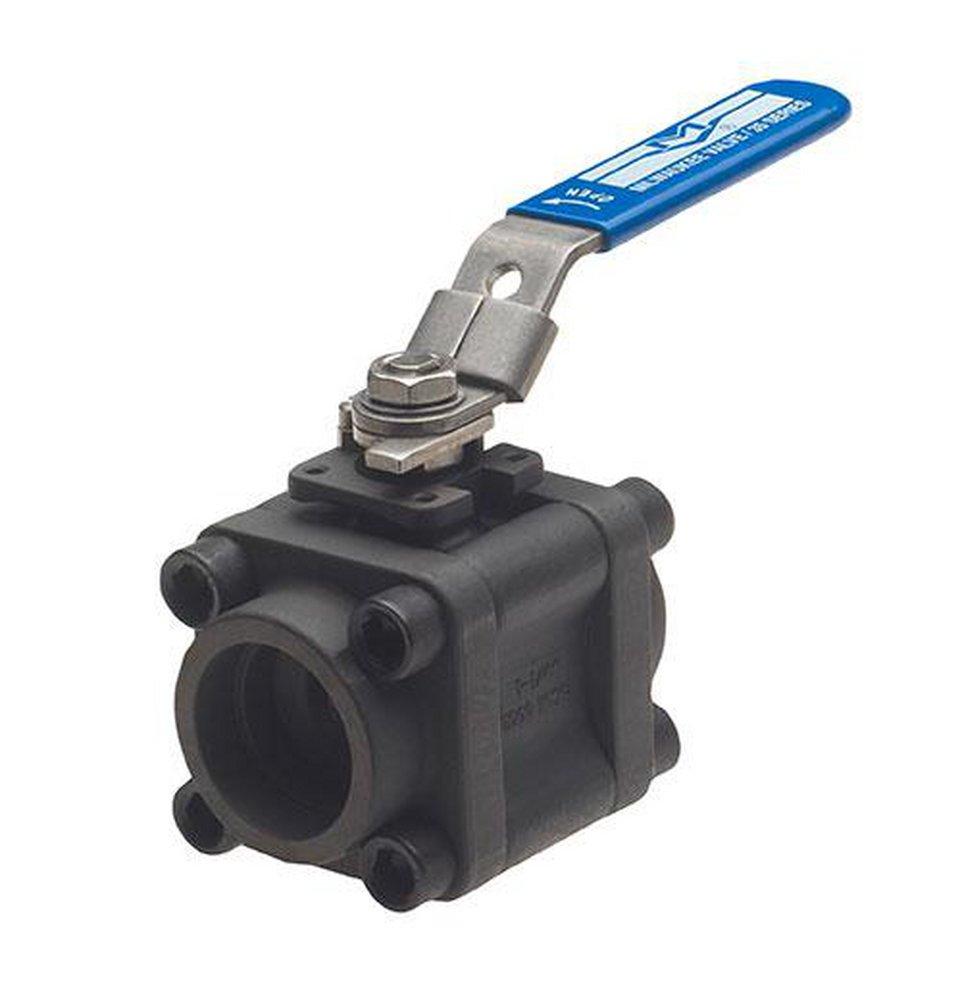

Name: 35 Series 2 in. Carbon Steel Standard Port Socket Weld 2000# Ball Valve
Availability: InStock

Milwaukee Valve

Fast #
Part #M35RCS1NLLK
Item #7050518
Manufacturer Part #35RCS1NLL -200

$1,047.02

EACH

Valve Size: 2 in

Add $45.00 more to cart to get FREE Shipping

Pick Up: Not available
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Locking lever for safety lockout
Live loaded adjustable stem packing arrangement for longer packing life
Vent hole in ball slot for cavity venting
Standard grounded ball and stem
ISO 5211 mounting pad for easy actuation
Flexible graphite body seals
NACE compliant for sour gas service
Blow-out proof stem
Fire safe to API 607 6th Ed
Meets the latest: API, ASTM/ASME standards

Not Compliant, Approved for Non-Potable Water Applications

Documents

INSTALLATION

SPECIFICATION

Specifications

ANSI:: ANSI 2000

API:: API 598, API 607, API 608

ASME:: ASME B16.34

ASTM:: ASTM A-193-BB, ASTM A-194 Grade 8, ASTM A-216, ASTM A-276, ASTM A-351 Grade CF8M, ASTM A-479

BAA Compliant:: No

Clean Bagged:: No

Collection:: 35 Series

End Connection 1:: Socket Weld

End Connection 2:: Socket Weld

End Connections:: Socket Weld

FM Approved:: No

Fire Suppression System Rated:: No

Handle Material:: Stainless Steel

IAPMO Listed:: No

ISO:: ISO 5211

Lead Law Compliance Level:: Not Compliant, Approved for Non-Potable Water Applications

Length:: 5-1/25 in

MA Approved:: No

MSS:: MSS SP-110, MSS SP-72

Material:: Carbon Steel, Graphite

Maximum Temperature:: 500

NSF Certified:: No

Pressure - High:: 2000

Pressure Class:: 2000#

Proposition 65:: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Recommended Valve Application:: Gas, Oil, Steam, Potable Water

UL Listed:: No

Valve Body Material:: Carbon Steel

Valve Body Style:: 3 piece

Valve Operator:: Latch Lock Handle

Valve Port Opening:: Standard Port

Valve Seat Material:: NXT

Valve Size:: 2 in

Valve Stem:: Blowout-proof

Valve Type:: Ball Valve

Width:: 4-7/50 in

cUPC Certified:: No
