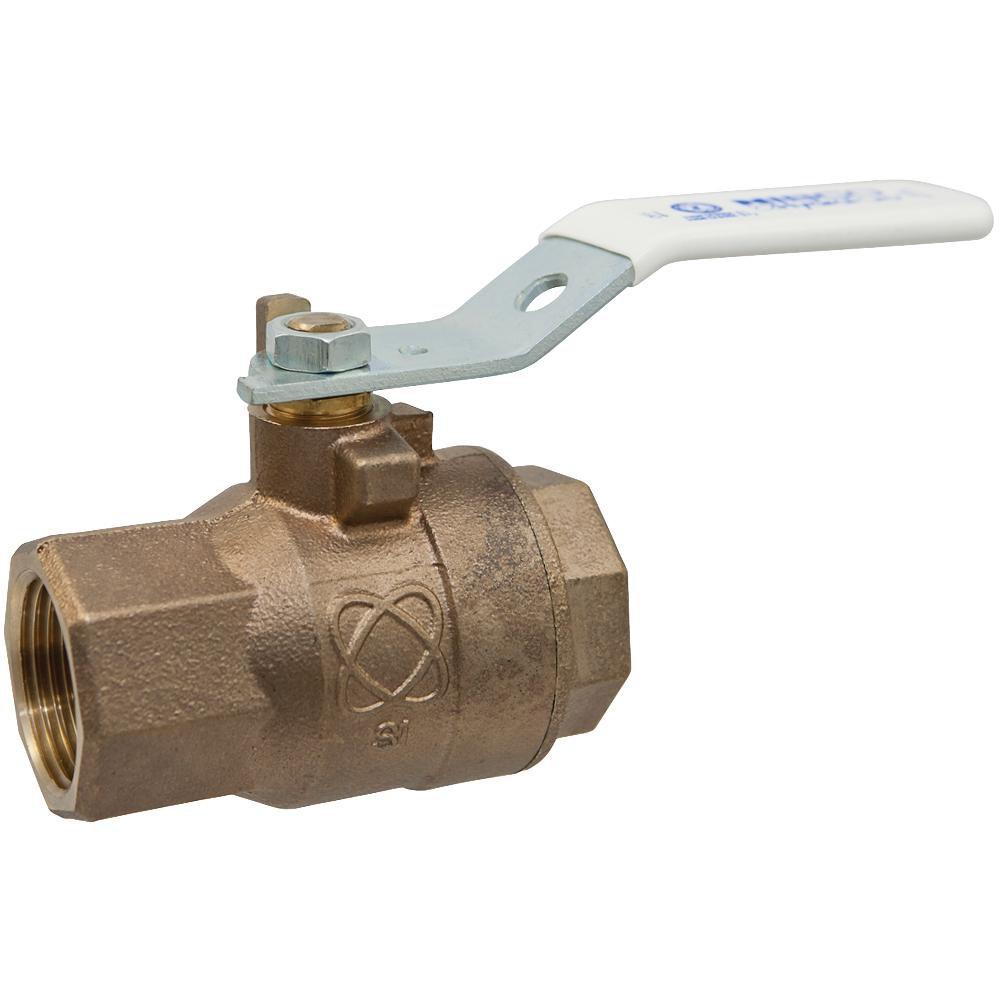

2-1/2 in. Silicon Bronze Full Port NPT 600# Ball Valve

You last purchased this on

NIBCO

HydraPure® T-585-80-LF 2-1/2 in. Silicon Bronze Full Port NPT 600# Ball Valve

  • Fast #
  • Part #NT58580LFL
  • Item #7839435
  • Manufacturer Part #NL951XE
3.6 out of 5 Customer Rating
Brand image
NIBCO Silicon Bronze Full Port NPT 600# Ball Valve
You last purchased this on

NIBCO

HydraPure® T-585-80-LF 2-1/2 in. Silicon Bronze Full Port NPT 600# Ball Valve

  • Fast #
  • Part #NT58580LFL
  • Item #7839435
  • Manufacturer Part #NL951XE
3.6 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 2 Pallet: 84
Looking for compatible parts?
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Frequently Purchased Together

Product Details

Product Details

  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Max temperature rating 300°F
  • Full port
  • Silicon Performance Bronze® body, ball and stem
  • Blowout-proof stem
  • Standard lever handle, optional NIB-SEAL®, Locking Lever, Memory Stop, Extended Lever, Round and Wing
  • NIBCO® Hydra Pure® lead-free markings on handle and body
  • Threaded end connections
  • Dezincification resistant
  • Lead-free
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372-8, ANSI 61, ANSI Z1157
ASTM:
ASTM A-276, ASTM A-351, ASTM B-16, ASTM B-371, ASTM B-584
BAA Compliant:
No
CSA Certified:
CSA B125.14
Clean Bagged:
No
Collection:
HydraPure® T-585-80-LF
Color Finish Name:
Bronze
Depth:
11-3/50 in
End Connection 1:
FIPT
End Connection 2:
NPT
End Connections:
NPT
FM Approved:
No
Fire Suppression System Rated:
No
Handle Material:
Zinc Plated Steel
Handle Type:
Lever
Height:
4-21/50 in
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
6 in
MA Approved:
No
MSS:
MSS SP-110, MSS SP-145
Material:
Silicon Bronze
Maximum Temperature:
300
Minimum Temperature:
-20
NSF:
NSF 372-8, NSF 61
NSF Certified:
Yes
Number of Pieces:
2 Piece
Origin:
Domestic
Pressure - High:
600
Pressure - Maximum:
600 psi
Pressure Class:
600#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Recommended Valve Application:
Commercial, Residential
Temperature Range:
Up to 300 Deg F
Temperature Rating:
300
UL Listed:
No
Valve Body Material:
Silicon Bronze
Valve Body Style:
Ball
Valve Operator:
Quarter Turn Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Reinforced PTFE
Valve Size:
2-1/2 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
13.7 lb
Width:
6-61/100 in
cUPC Certified:
No
