NIBCO

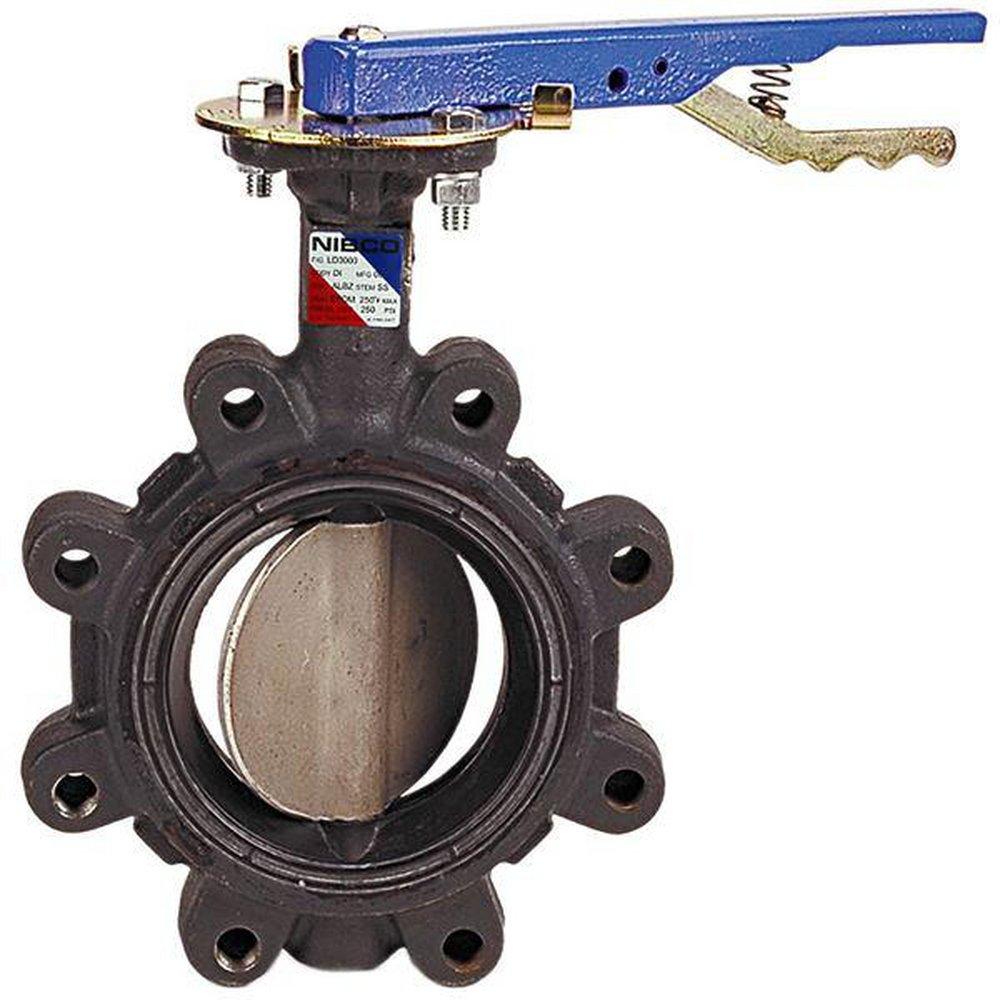

NIBCO Ductile Iron Lug Fluoroelastomer Gear Operator Handle Butterfly Valve

NIBCO

Fast #
Part #NLD32225P
Item #4436517
Manufacturer Part #NLG450H

$1,457.50

EACH

Valve Size: 4 in

Add $45.00 more to cart to get FREE Shipping

Pick Up: Not available
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Valve pressure rating 250 psi
Maximum 300° F service
Lug style
FKM fluor elastomer molded-in seat liner
Extended neck
Stainless steel stem with stainless steel bushings
Geometric drive
Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
Not recommended for steam service
Designed to meet MSS SP-67

Documents

WARRANTY

INSTALLATION

SPECIFICATION

Specifications

ANSI:: ANSI 372, ANSI 61

ASME:: ASME Class 125, ASME Class 150

ASTM:: ASTM A276 Type 316, ASTM A536, ASTM A564 17-4PH, ASTM A743 Grade CF8M

Clean Bagged:: No

Collection:: LD-3222 Series

End Connection 1:: Lug

End Connection 2:: Lug

End Connections:: Lug

FM Approved:: No

IAPMO Listed:: No

Length:: 2-9/50 in

MSS:: MSS SP-25, MSS SP-67

Material:: Ductile Iron

Maximum Temperature:: 300

NSF:: NSF 372, NSF 61

NSF Certified:: Yes

Origin:: Domestic

Pressure Class:: 250#

Proposition 65:: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Recommended Valve Application:: Commercial, Industrial

UL Listed:: No

Valve Body Material:: Ductile Iron

Valve Body Style:: Lug

Valve Disc Material:: Stainless Steel

Valve Operator:: Gear Operator

Valve Seat Material:: Fluoroelastomer

Valve Size:: 4 in

Valve Type:: Butterfly Valve
