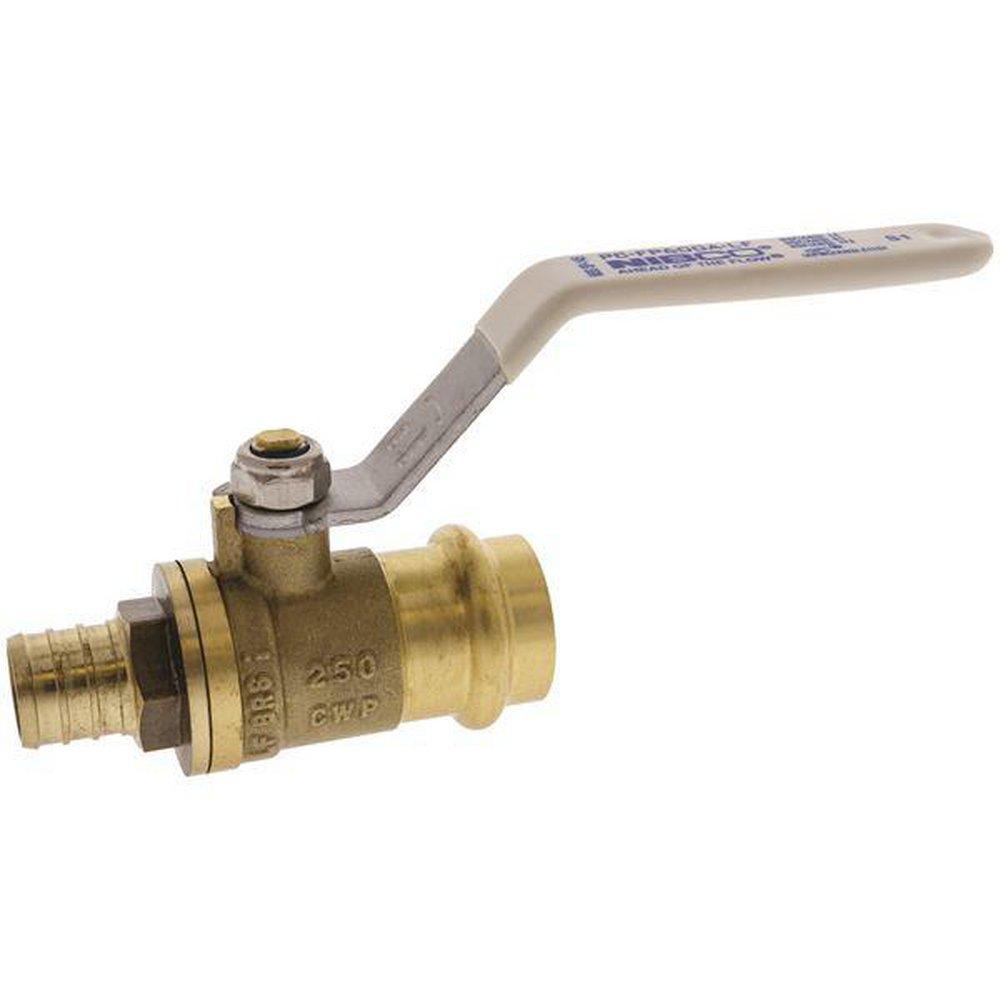

Name: PCPX-FP-600A-LF 3/4 in. Forged Copper Alloy Full Port Press x F1960 250# Ball Valve
Availability: InStock

NIBCO

Fast #
Part #NPCPXCFP600ALFF
Item #7627458
Manufacturer Part #NF99PC8

$66.28

EACH

Valve Size: 3/4 in

Add $45.00 more to cart to get FREE Shipping

Pick Up: Not available
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
Maximum service temperature 250 °F
Press x PEX
Copper-to-copper connections
Full port
Blowout-proof stem
Reinforced PTFE seat rings
Multiple handle options
Press leak-detection feature

Lead Law Compliant

Documents

SPECIFICATION

Specifications

ANSI:: ANSI 14, ANSI 61, ANSI 372, ANSI Z11157

ASME:: ASME B16.51

ASTM:: ASTM B-88, ASTM D-2000

Collection:: PCPX-FP-600A-LF

End Connection 1:: Press

End Connection 2:: PEX

End Connections:: Press x PEX

IAPMO Listed:: Yes

Lead Law Compliance Level:: Lead Law Compliant and Certified

Lead Law Compliant:: Yes

MSS:: MSS SP-145

Material:: Forged Copper Alloy

Material Type:: DZR

NSF Certified:: Yes

Pressure - Maximum:: 225 psi

Pressure Class:: 250#

Proposition 65:: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Valve Body Style:: 2 piece

Valve Operator:: Lever Handle

Valve Port Opening:: Full Port

Valve Seat Material:: PTFE

Valve Size:: 3/4 in

Valve Stem:: Blowout-proof

Valve Type:: Ball Valve

Weight:: 0.48 lb
