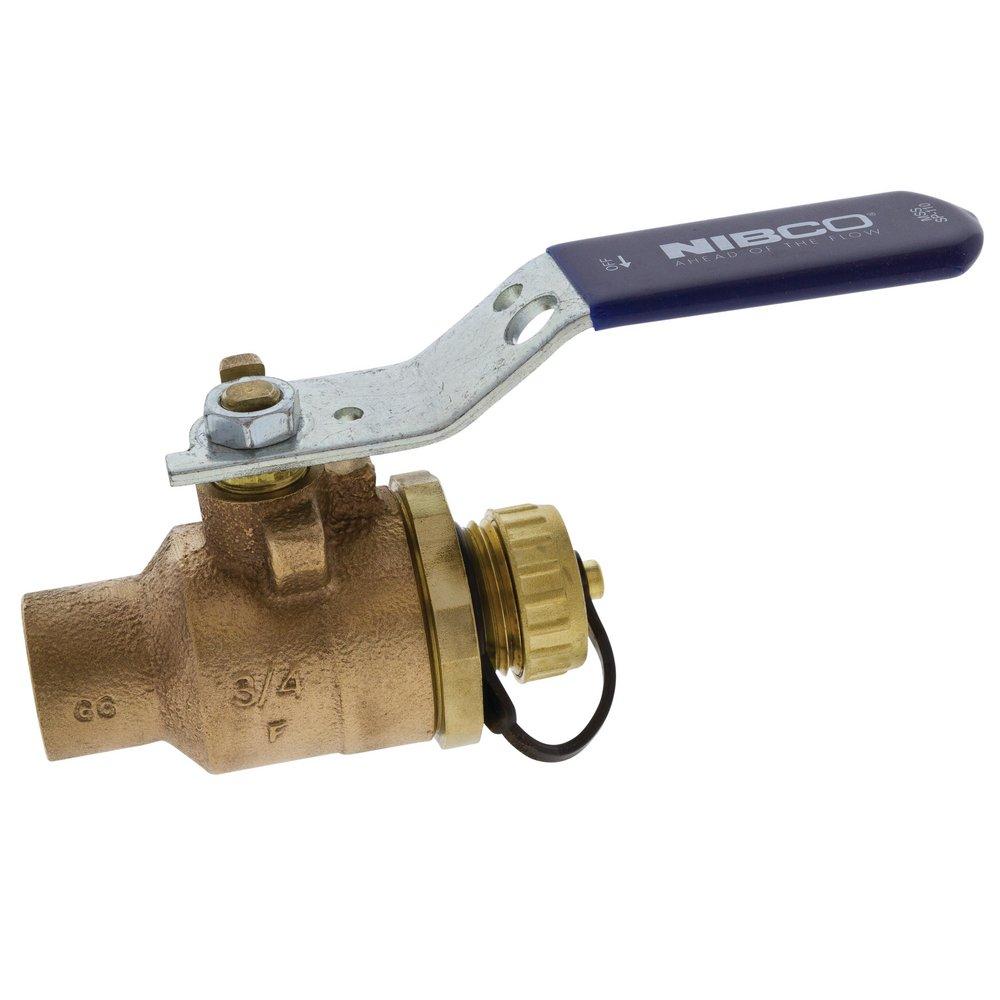

3/4 in. DZR Bronze Full Port Solder x Hose 600# Ball Valve

You last purchased this on

NIBCO

S-585-70-HC 3/4 in. DZR Bronze Full Port Solder x Hose 600# Ball Valve

Brand image
NIBCO DZR Bronze Full Port Solder x Hose 600# Ball Valve
slide 1
You last purchased this on

NIBCO

S-585-70-HC 3/4 in. DZR Bronze Full Port Solder x Hose 600# Ball Valve

  • Fast #
  • Part #NS58570HCF
  • Item #1283306
  • Manufacturer Part #NJ83808
5 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Product Details

  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Maximum temperature rating 400°F
  • Chrome plated brass ball, silicon bronze stem
  • Blowout-proof stem
  • Solder end x 3/4" hose connection with cap and chain
  • Standard lever handle
  • Dezincification resistant
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-110
  • Requires Certification

  • Not Compliant, Approved for Non-Potable Water Applications

Specifications

ASTM:
ASTM B 16 Alloy C36000, ASTM B 371 Alloy C69300, ASTM B 99 Alloy C65100, ASTMB 124 Alloy C37700, ASTM B 584 Alloy C84400
Clean Bagged:
No
Collection:
S-585-70-HC
Color Finish Name:
Bronze
Depth:
6-3/10 in
End Connection 1:
FIP
End Connection 2:
GHT
End Connections:
FIP x GHT
FM Approved:
No
Fire Suppression System Rated:
No
Handle Material:
Zinc Plated Steel
Handle Type:
Standard
Height:
1-7/10 in
IAPMO Listed:
No
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
6-3/10 in
MSS:
MSS SP-110
Material:
Bronze
Material Type:
EPDM, RPTFE
Maximum Temperature:
400
NSF Certified:
No
Number of Pieces:
2 Piece
Origin:
Domestic
Pressure - High:
600
Pressure - Maximum:
600 psi
Pressure Class:
600#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Recommended Valve Application:
Potable Water
Temperature Range:
Up to 400° F
Temperature Rating:
400
UL Listed:
No
Valve Body Material:
Bronze
Valve Body Style:
2 piece
Valve Disc Material:
Brass
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
RPTFE
Valve Size:
3/4 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
1.423 lb
Width:
3-1/10 in
cUPC Certified:
No
