3/4 in. DZR Silicon Bronze Full Port Solder 600# Ball Valve

NIBCO

S-685-66-LF 3/4 in. DZR Silicon Bronze Full Port Solder 600# Ball Valve

  • Fast #
  • Part #NS68566LFF
  • Item #4139103
  • Manufacturer Part #NJ99218
3.8 out of 5 Customer Rating
Brand image

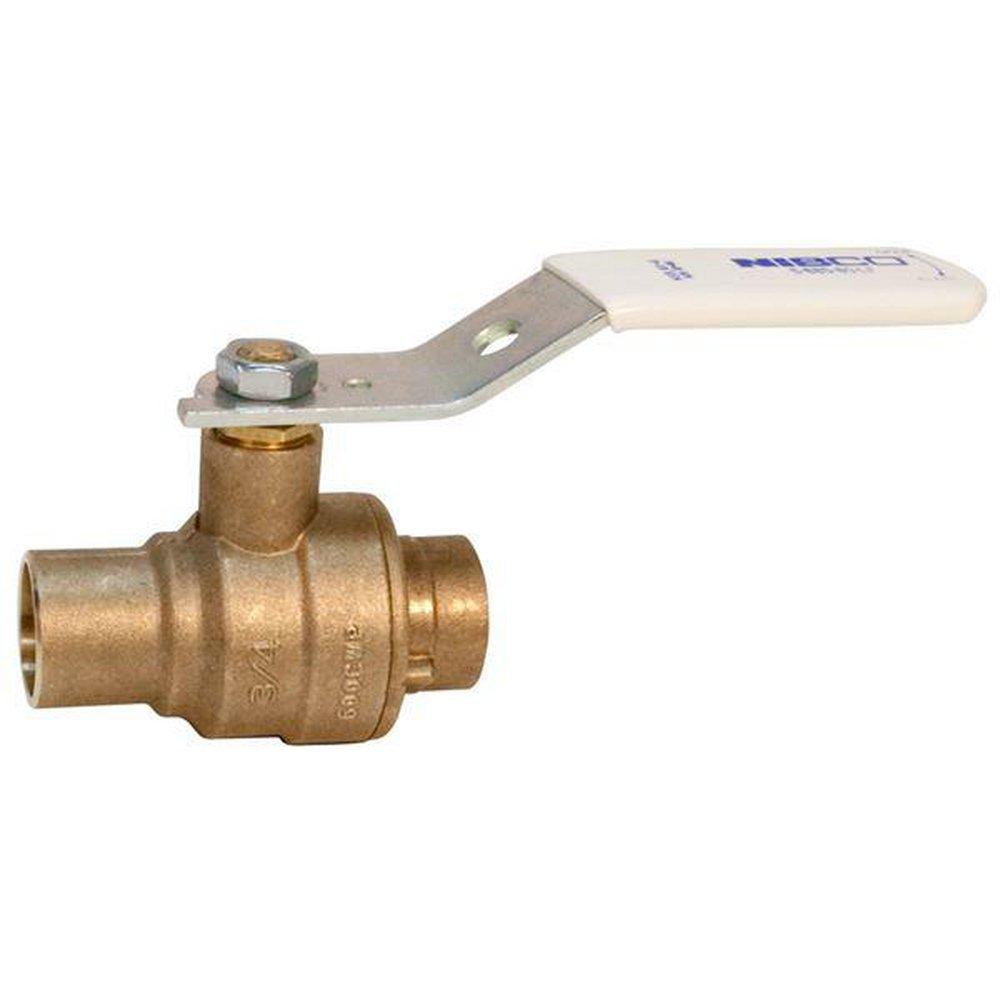

NIBCO Silicon Bronze Full Port Female Solder 600# Ball Valve
NIBCO Silicon Bronze Full Port Female Solder 600# Ball Valve
NIBCO

S-685-66-LF 3/4 in. DZR Silicon Bronze Full Port Solder 600# Ball Valve

  • Fast #
  • Part #NS68566LFF
  • Item #4139103
  • Manufacturer Part #NJ99218
3.8 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 5 Case: 50 Pallet: 1600
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Details

  • Blowout-proof stem
  • Stainless steel ball and stem
  • Dezincification resistant
  • Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
  • Full port
  • PTFE seat
  • Solder end connections
  • Silicon Performance Bronze® alloy
  • Two-piece body
  • Stainless trim
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372-8, ANSI 61
ASTM:
ASTM A-240, ASTM A-276 Type 316, ASTM A-351 Type CF8M, ASTM B-16 Alloy C36000, ASTM B-283
Collection:
S-685-66-LF
End Connection 1:
Female Sweat
End Connection 2:
Female Sweat
End Connections:
Female Sweat
FM Approved:
No
Handle Material:
Steel
IAPMO Listed:
No
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
3-13/100 in
MSS:
MSS SP-110, MSS SP-145
Material:
Bronze, Brass, Plastic, Rubber, Stainless Steel, Steel
Material Type:
316, EPDM, RPTFE, Virgin PTFE
Maximum Temperature:
300
NSF:
NSF 372-8, NSF 61
NSF Certified:
Yes
Pressure - High:
100, 600
Pressure Class:
600#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Recommended Valve Application:
Potable Water
UL Listed:
No
UPC:
039923319548
Valve Body Material:
Bronze
Valve Body Style:
2 piece
Valve Disc Material:
Stainless Steel
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Virgin PTFE
Valve Size:
3/4 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
0.69 lb
