4 in. 250 psi Ductile Iron Wafer Butterfly Valve Gear Operator Switch

You last purchased this on

NIBCO

WD-3510 Series 4 in. 250 psi Ductile Iron Wafer Butterfly Valve Gear Operator Switch

  • Fast #
  • Part #NWD35108P
  • Item #463315
  • Manufacturer Part #NLH801H
4.1 out of 5 Customer Rating
Brand image

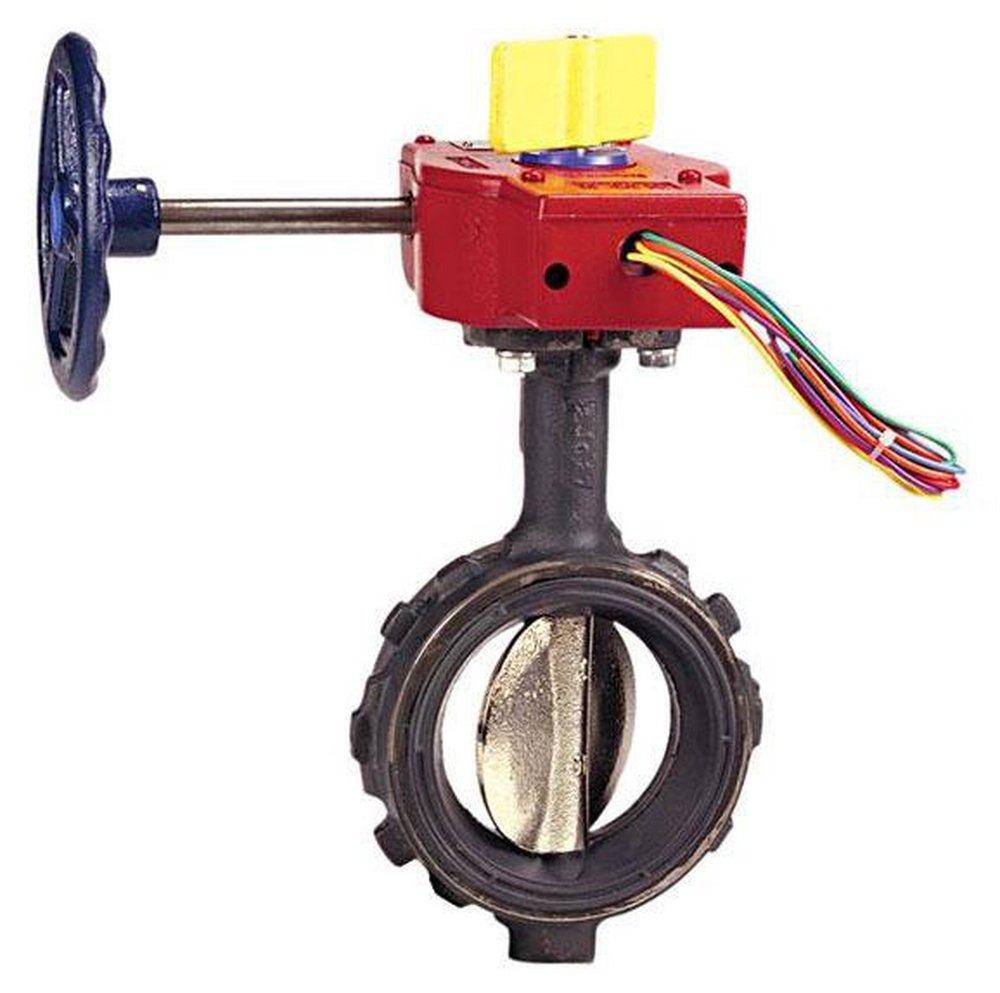

NIBCO Ductile Iron EPDM Seat Gear Operator Butterfly Valve
You last purchased this on

NIBCO

WD-3510 Series 4 in. 250 psi Ductile Iron Wafer Butterfly Valve Gear Operator Switch

  • Fast #
  • Part #NWD35108P
  • Item #463315
  • Manufacturer Part #NLH801H
4.1 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 1 Pallet: 30
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Product Details

  • The NIBCO® lug type butterfly valve is classified as a fire protection control valve that is Underwriters Laboratories listed and FM Approved for bubble-tight shutoff at 250 psi water working pressure
  • The NIBCO® ductile iron butterfly valve is designed specifically to meet the rigorous requirements of automatic sprinkler systems
  • The unique EPDM molded-in seat liner with ductile iron disc provides bubble-tight shutoff at rated pressure
  • An extended neck allows for insulation up to 2 in
  • Stainless steel stem with copper bushings
  • Gear operator with switches
  • With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway
  • Geometric drive
  • Wafer valves are recommended for quick installation and removal from piping
  • Designed to meet MSS SP-67
  • Requires Certification

Specifications

ANSI:
ANSI 372
ASTM:
ASTM A395, ASTM A536, ASTM A582 Type 416, ASTM B124
Coating:
Orange Enamel, Painted
Collection:
WD-3510 Series
End Connection 1:
Wafer
End Connection 2:
Wafer
End Connections:
Wafer
FM Approved:
Yes
Height:
15-19/50 in
ISO:
ISO 9001
Length:
2-19/100 in
MSS:
MSS SP-25, MSS SP-67
Material:
Ductile Iron, Rubber
Material Type:
EPDM
NSF:
NSF 372
NSF Certified:
Yes
Origin:
Domestic
Pressure - High:
250
Pressure Class:
250#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Recommended Valve Application:
Water
UL Listed:
Yes
Valve Body Material:
Ductile Iron
Valve Body Style:
Wafer
Valve Disc Material:
Ductile Iron
Valve Operator:
Gear Operator with Switch
Valve Seat Material:
EPDM
Valve Size:
4 in
Valve Stem:
Non-rising
Valve Type:
Butterfly Valve
