FNPT Hydronic Mixing Valve Brass, Stainless and Plastic 150 psi 212F
You last purchased this on
Resideo
AMX Series DirectConnect™ FNPT Hydronic Mixing Valve Brass, Stainless and Plastic 150 psi 212F
Purchase history
Resideo
AMX Series DirectConnect™
FNPT Hydronic Mixing Valve Brass, Stainless and Plastic 150 psi 212F
AMX302TLF
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Temperature is adjustable using push-twist-release locking hand wheel design and if cold water supply is interrupted, flow reduction occurs in seconds

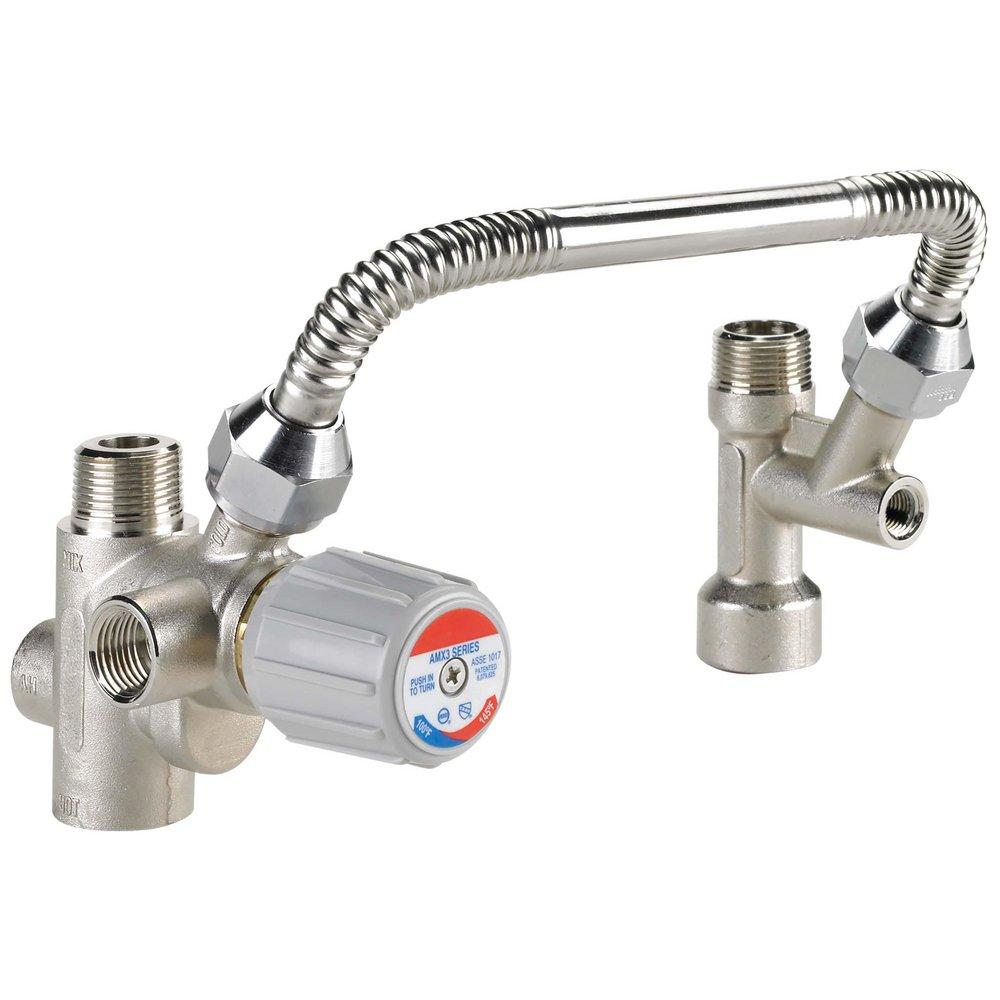

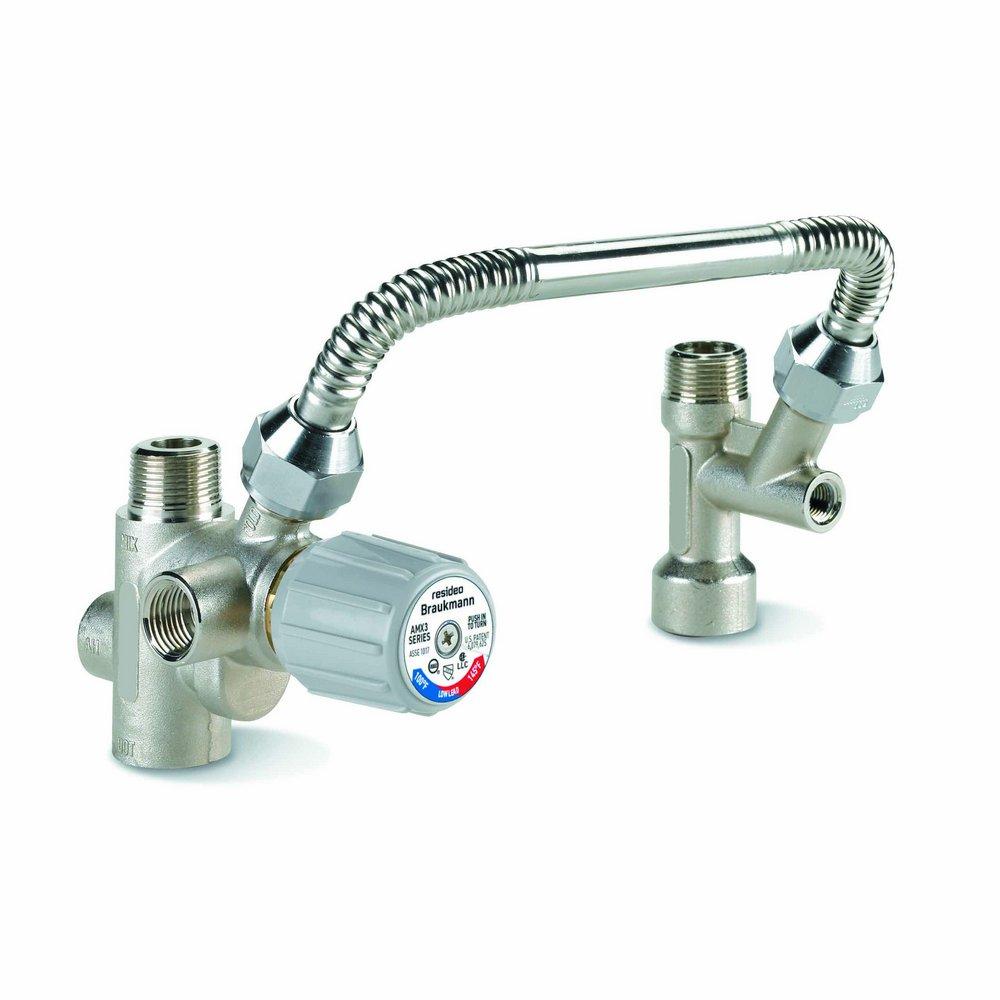

- Kit (AMX300TLF or AMX302TLF) includes mixing valve, cold water tee fitting and flexible stainless steel connector, does not include adapters
- Recirculation portion option offers fast delivery of heated water to the furthest fixtures, increasing user comfort with more available hot water
- The alternate hot port bypasses hot water directly from the tank to non-mixed temperature applications
- Brass/stainless construction with PTFE-coated wear surfaces for extended surface
- Lead-free products have products numbers end in LF
-
Lead Law Compliant
Specifications
- ASSE Standards:
- ASSE 1017
- CSA Certified:
- Yes
- Collection:
- AMX Series DirectConnect™
- End Connection 1:
- FNPT
- End Connection 2:
- MNPT
- End Connections:
- FNPT x MNPT
- Flow Rate:
- 0.25 gpm
- Height:
- 3-47/100 in
- IAPMO Listed:
- No
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 5-31/100 in
- Material:
- Brass, Stainless Steel
- Material Type:
- PTFE
- Maximum Temperature:
- 212
- Media:
- Water
- NSF Certified:
- Yes
- Origin:
- Global
- Pressure - Maximum:
- 150 psi
- UL Listed:
- No
- Valve Body Material:
- Brass
- Valve Size:
- 3/4 in
- Valve Type:
- Mixing Valve
