120V Cast Iron Circulator Pump
You last purchased this on
Taco

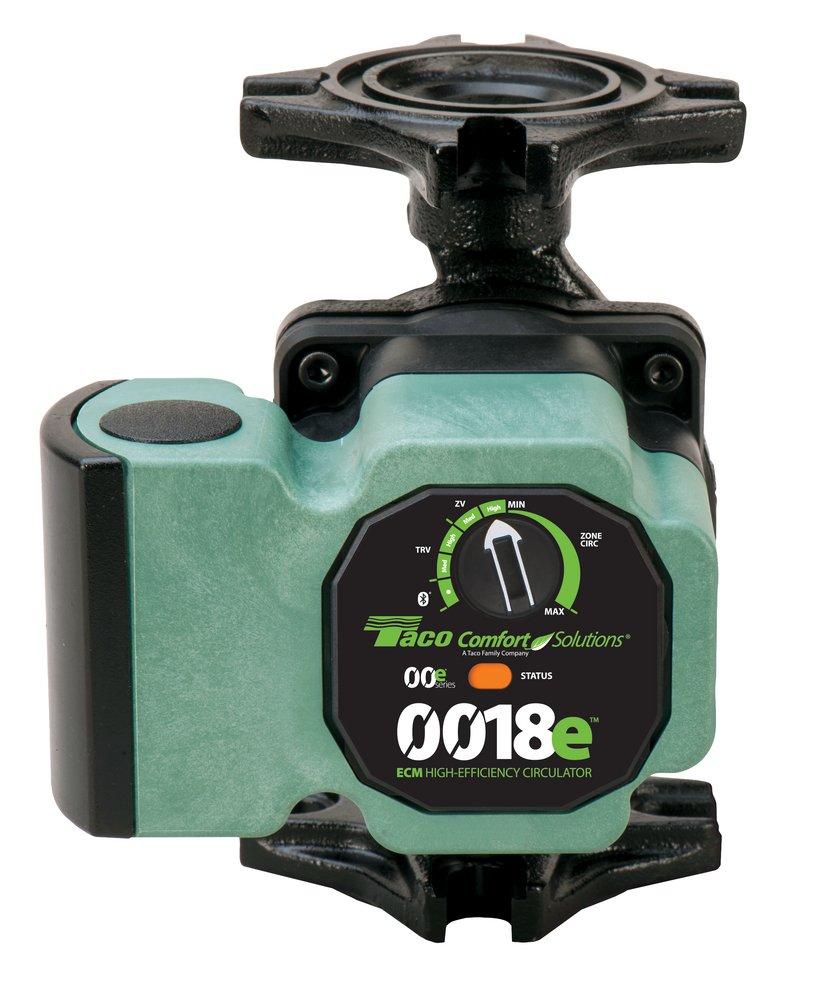

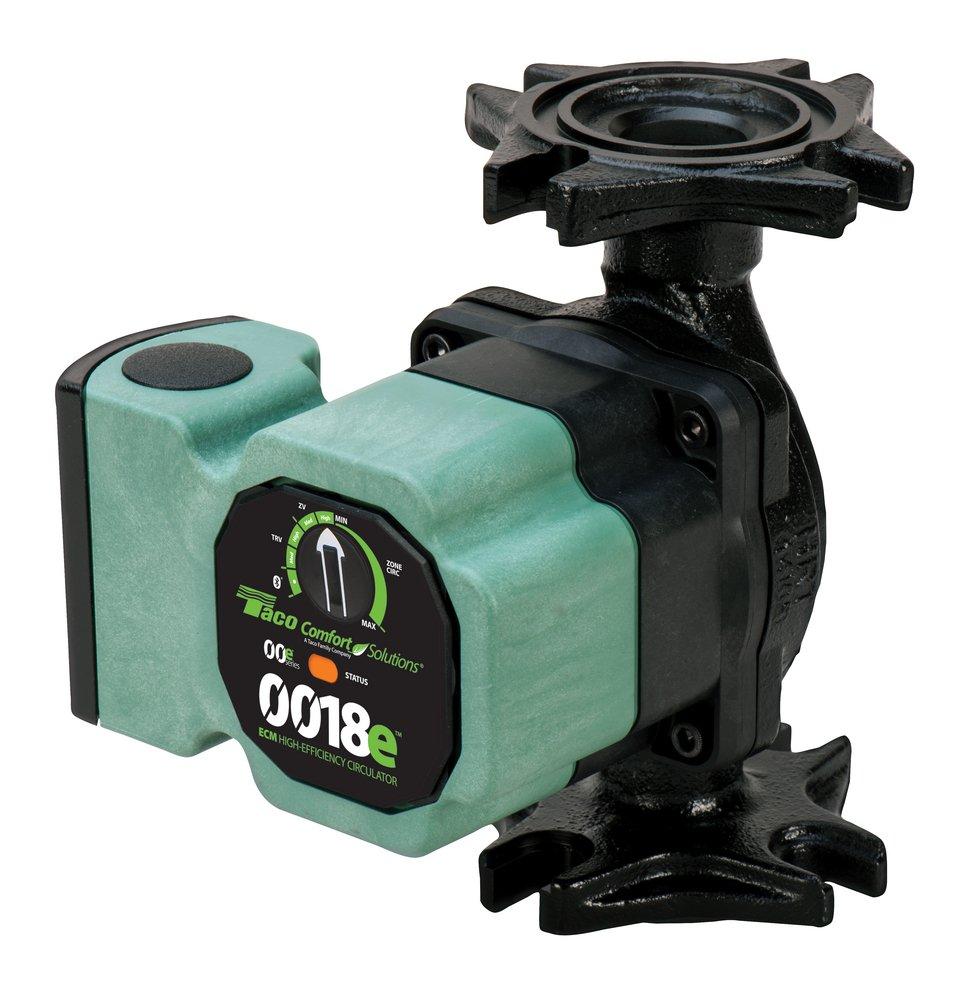

0018e™ Series 120V Cast Iron Circulator Pump
Purchase history
Taco
0018e™ Series
120V Cast Iron Circulator Pump
VR1816-HY2-4C2A01
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- High efficiency ECM motor
- Bluetooth connectivity; offers diagnostic data
- Bio barrier; protects pump from contaminants
- SureStart® automatic unblocking and air purging mode
- Dual electrical knockouts and 6" stranded wire leads for easy wiring
- Double insulated - no ground wire required
- Whisper quiet operation
- Intuitive 0018e ECM circulator mobile app for iOS and android
Specifications
- AMP:
- 0.54
- ANSI:
- ANSI 372, ANSI 61
- Blower Type:
- Variable Speed
- Collection:
- 0018e™ Series
- Connection Type:
- Flanged
- Depth:
- 6 in
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- Energy Star Compliant:
- No
- Flow Rate:
- 16 gpm
- Height:
- 6-3/8 in
- IAPMO Listed:
- No
- Material:
- Cast Iron, Stainless Steel, Rubber, Composite, Carbon, Ceramic
- Material Type:
- EPDM
- Maximum Feet of Head:
- 18
- Maximum Temperature:
- 230
- Minimum Temperature:
- 36
- NSF:
- NSF 372, NSF 61
- NSF Certified:
- Yes
- Power Source:
- Electric
- Pressure - Maximum:
- 125 psi
- Product Type:
- Circulator Pump
- Pump Body Material:
- Cast Iron
- Pump Phase:
- 1
- RPM:
- 4830
- UL Listed:
- Yes
- Volts:
- 120V
- Watts:
- 44 W
- Weight:
- 6 lb
- Width:
- 5-1/8 in
