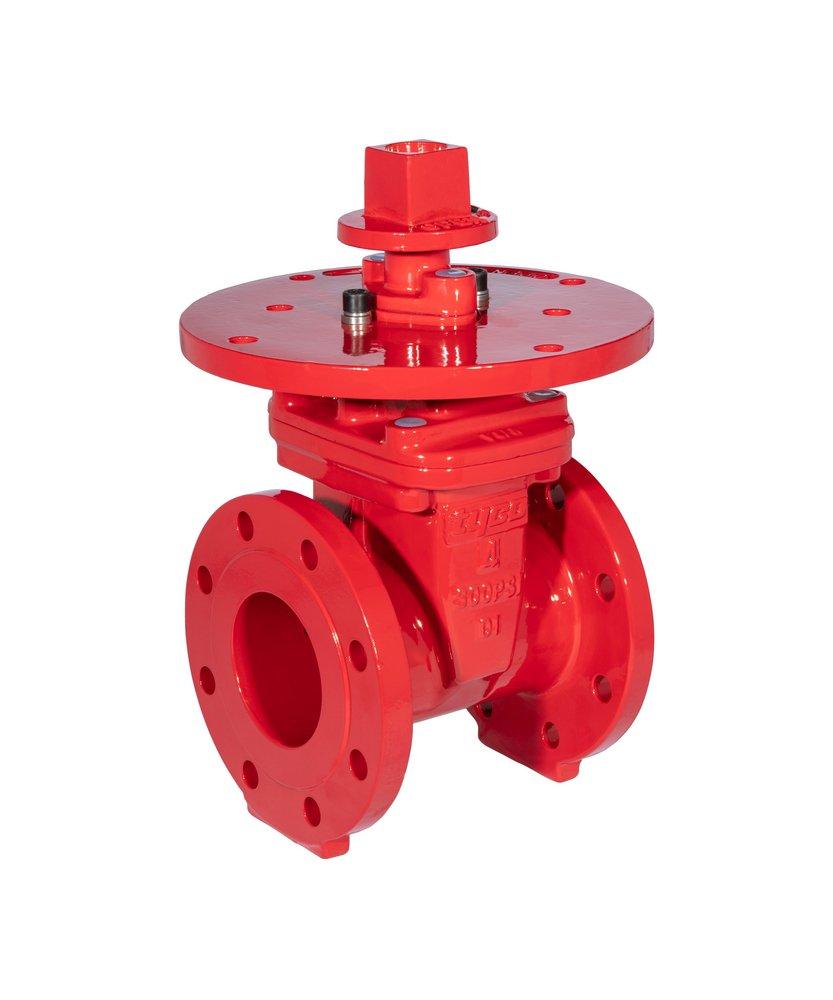

8 in. Ductile Iron Flanged Gate Valve
Tyco
8 in. Ductile Iron Flanged Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Tyco
8 in. Ductile Iron Flanged Gate Valve
TMPX2000003
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
Specifications
- ANSI:
- ANSI Class 125, ANSI Class 150
- ASME:
- ASME B16.1, ASME B16.42
- Coating:
- Fusion Bonded Epoxy Resin
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- Yes
- Height:
- 20-47/100 in
- ISO:
- ISO 7005-2
- Length:
- 11-1/2 in
- Material:
- Ductile Iron
- NSF Certified:
- No
- Pressure - High:
- 300
- Recommended Valve Application:
- Fire Protection
- UL Listed:
- Yes
- Valve Body Material:
- Ductile Iron
- Valve Disc Material:
- Ductile Iron
- Valve Seat Material:
- NBR
- Valve Size:
- 8 in
- Valve Stem:
- Non-rising
- Valve Type:
- Gate Valve
- Weight:
- 169.7 lb
