1/2 in. Pex Brass Full Port Ball Valve
You last purchased this on
Uponor

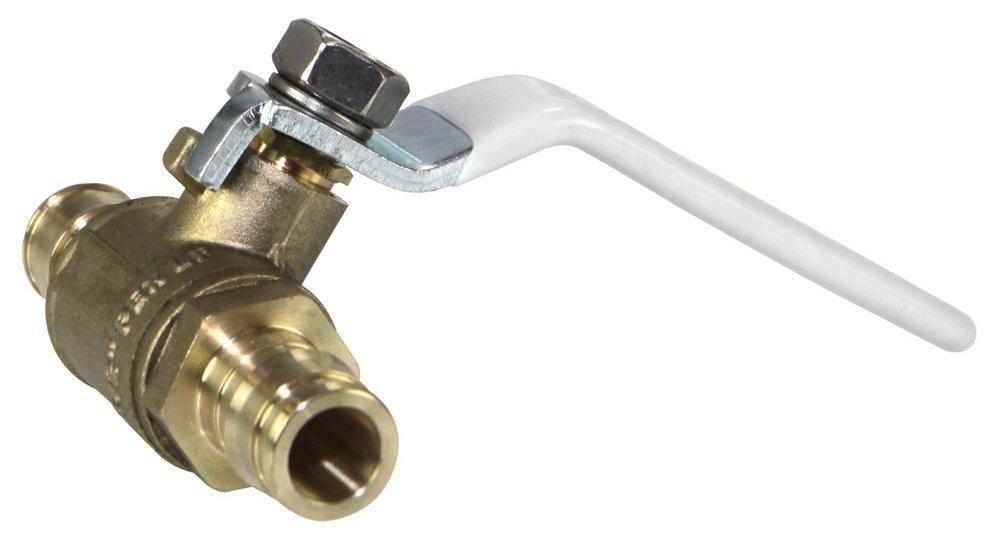

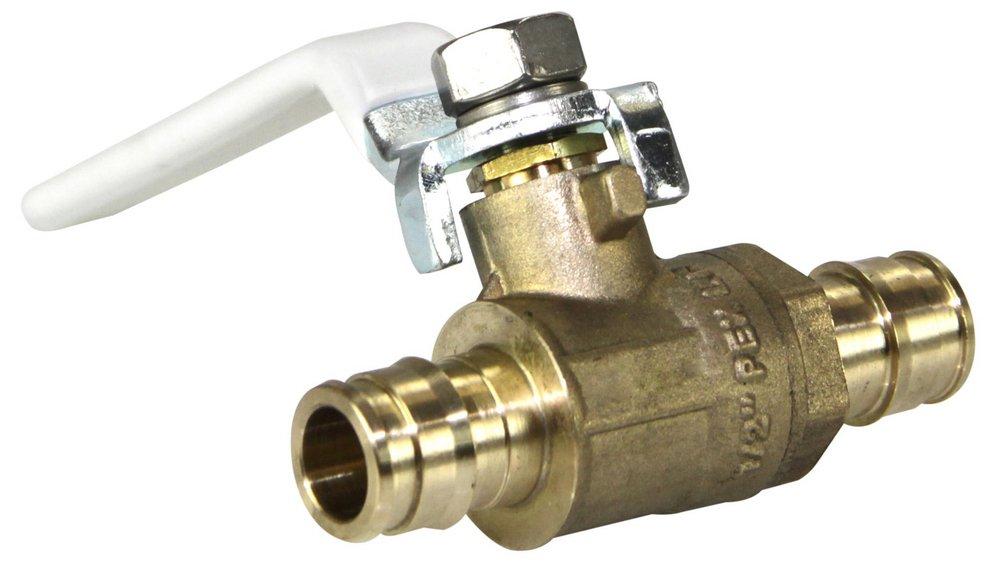

ProPEX® 1/2 in. Pex Brass Full Port Ball Valve
Purchase history
Uponor
ProPEX®
1/2 in. Pex Brass Full Port Ball Valve
LFR4815050
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Full-port design for maximum flow
- High-quality, lead-free, dezincification-resistant brass body
- Chrome-plated ball
- Meets safe drinking water requirements
- Reliable ProPEX connection system
- Positive tube stops for installation ease
- Meets IPC, UPC, and IRC building codes
- Listed to NSF 14, 61, 359, and 372
- Backed by a five-year warranty
-
Lead Law Compliant
Specifications
- ASTM:
- ASTM F-1960, ASTM F-2023, ASTM F-877
- CSA Certified:
- CSA B137.5
- Clean Bagged:
- No
- Collection:
- ProPEX®
- Color Finish Name:
- Brass
- End Connection 1:
- PEX Expansion
- End Connection 2:
- PEX Expansion
- End Connections:
- PEX Expansion
- FM Approved:
- No
- Handle Length (in):
- 3-9/25 in
- Handle Material:
- Stainless Steel
- Handle Type:
- Lever
- Height:
- 2-9/100 in
- IAPMO Listed:
- No
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 4-83/100 in
- Material:
- Brass, Plastic, Stainless Steel
- Material Type:
- C69300, PEX, PTFE
- Maximum Temperature:
- 250
- Minimum Temperature:
- 73
- NSF:
- NSF 14, NSF 359, NSF 372, NSF 61
- NSF Certified:
- Yes
- Pressure - High:
- 200
- Pressure Class:
- 200#
- Proposition 65:
- WARNING: This product contains chemicals know to the State of California tocause cancer and birth defects or other reproductive harm. For more information: www.P65Warns.ca.gov
- Recommended Valve Application:
- Hot Water
- Temperature Range:
- Up to 200 Deg F
- UL Listed:
- No
- Valve Body Material:
- Brass
- Valve Body Style:
- Ball
- Valve Operator:
- Quarter Turn Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 1/2 in
- Valve Type:
- Ball Valve
- Weight:
- 0.367 lb
- Width:
- 2-7/100 in
- cUPC Certified:
- Yes
