20 in. Cast Iron 175 psi Flanged Gear Operator Plug Valve
You last purchased this on
Val-Matic Valve

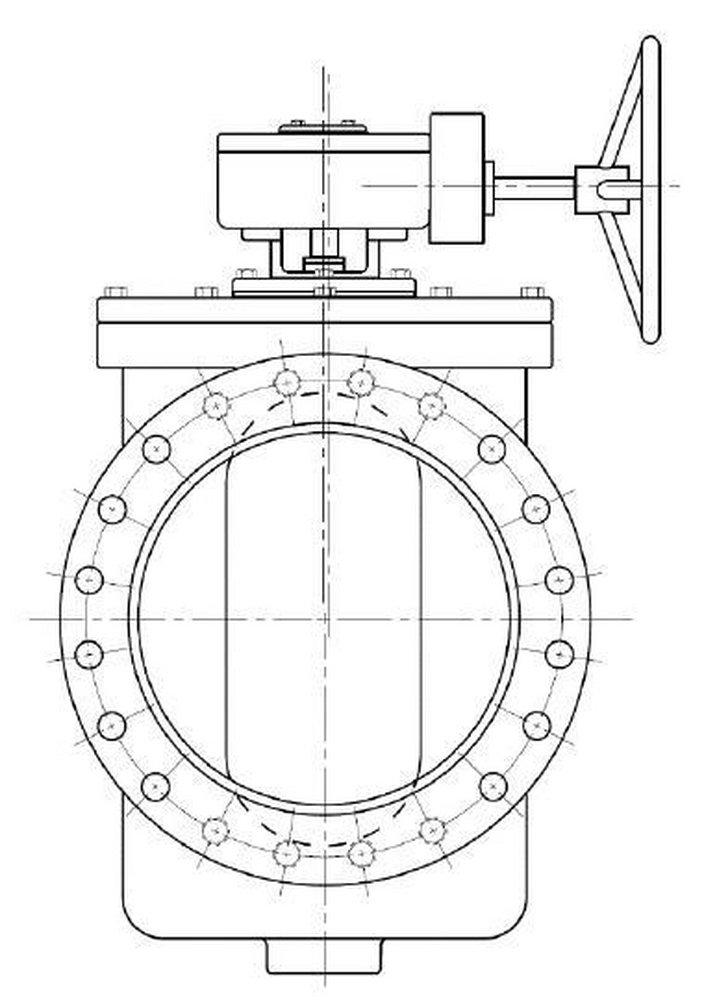

Series 5800R 20 in. Cast Iron 175 psi Flanged Gear Operator Plug Valve
Points
Call for Pricing
Call for Pricing
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
-
Pick Up: Not available
-
Shipping: Not available
Purchase history
Val-Matic Valve
Series 5800R
20 in. Cast Iron 175 psi Flanged Gear Operator Plug Valve
5820R/7M18
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Plug - heavy-duty fully rubber encapsulated
- Grit-Guard™ shaft seals - prevents bearing wear and shaft seizing
- V-type packing self adjusting and replaceable while under pressure
- Stainless steel radial upper and lower bearings - permanently lubricated for extended life
- Upper and lower thrust bearings - to assure plug centering
- Packing overload protection (Pop™) Shims - ease of adjustment, extends packing life
- Full access cover - allows inline maintenance
Specifications
- ANSI:
- ANSI B16.1
- ASTM:
- ASTM A-126, ASTM A-536, ASTM D-2000-BG
- AWWA:
- AWWA C-517
- Collection:
- Series 5800R
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- Handle Type:
- Wheel
- Height:
- 43-4/5 in
- ISO:
- ISO 9001
- Length:
- 23-1/2 in
- MSS:
- MSS SP-108
- Material:
- Cast Iron
- NSF:
- NSF 372
- NSF Certified:
- Yes
- Pressure - Maximum:
- 175 psig
- Pressure Class:
- 125#
- Recommended Valve Application:
- Air, Gas, Water
- Valve Body Material:
- Cast Iron
- Valve Body Style:
- 1 piece
- Valve Operator:
- Wheel Handle
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- Nickel
- Valve Size:
- 20 in
- Valve Type:
- Plug Valve
