2 in. 150# RF FLG WCB T8 Swing Check Valve Carbon Steel Body, Trim 8, Bolted Cover F-0114C-02TY

You last purchased this on

Velan Valve

Figure 0114C 2 in. 150# RF FLG WCB T8 Swing Check Valve Carbon Steel Body, Trim 8, Bolted Cover F-0114C-02TY

  • Fast #
  • Part #VF0114C02TYK
  • Item #204991
  • Manufacturer Part #F08-0114C-02TY
4.4 out of 5 Customer Rating
Brand image

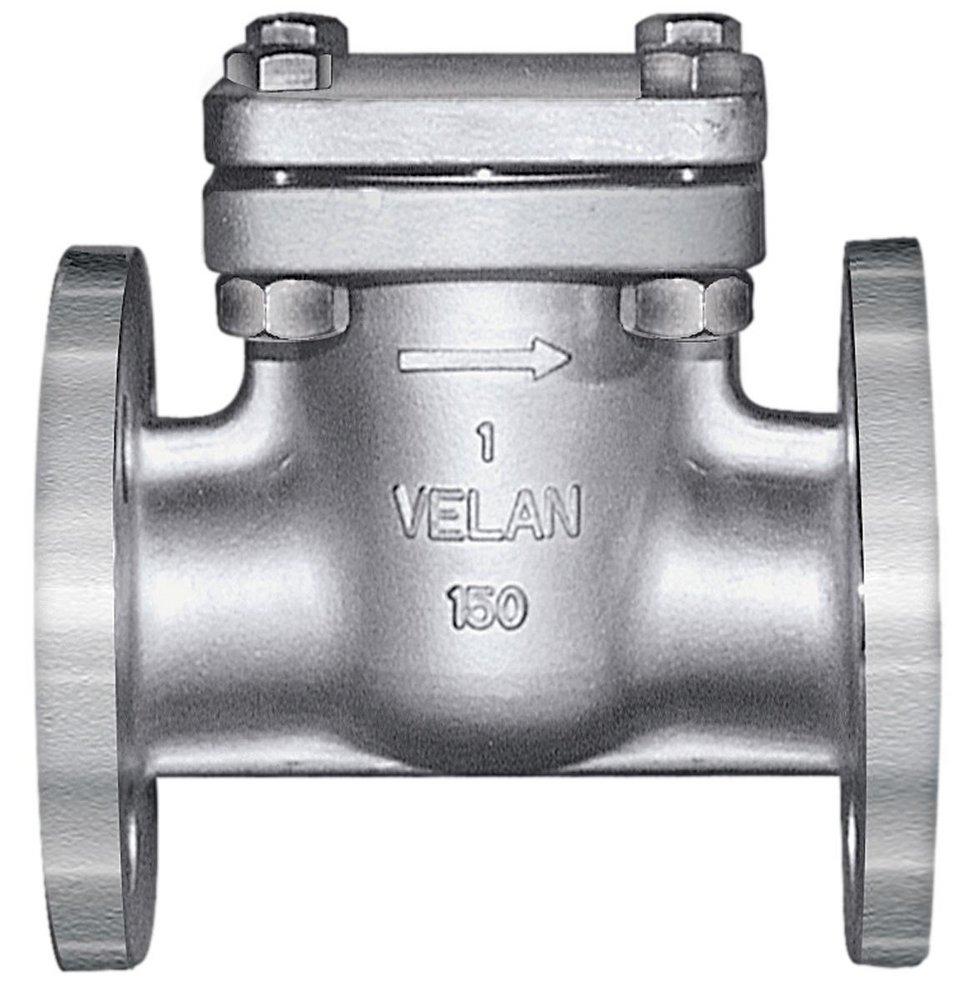

Velan Valve 150# RF FLG WCB T8 Swing Check Valve Carbon Steel Body, Trim 8, Bolted Cover F-0114C-02TY
You last purchased this on

Velan Valve

Figure 0114C 2 in. 150# RF FLG WCB T8 Swing Check Valve Carbon Steel Body, Trim 8, Bolted Cover F-0114C-02TY

  • Fast #
  • Part #VF0114C02TYK
  • Item #204991
  • Manufacturer Part #F08-0114C-02TY
4.4 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 50 Pallet: 100
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Product Details

  • Low emission design guaranteed for maximum 50 ppm emissions cage unit design with no penetration to the body prevents possibility of leakage with gasketed or packed hinge pin and possibility of pin ejection
  • Seal-welded seat rings are leakproof, and Satellite 6 hard-faced for long service life. All parts accessible from the top for easy servicing
  • Flanged B165, 150 class, swing check, vertical, bolted bonnet (Cast), WCB body, wedge/disc surface: 13Cr (410 or CA15), seat surface: satellite 6
  • Body and cover: Precision machined castings
  • Exclusive: Disc shaft does not penetrate body
  • Body and cover joint: Accurately machined, fully-enclosed gasket
  • Disc: Robust one-piece construction to withstand the severe shock of check valve service
  • Disc assembly: Non-rotating disc is fastened securely to disc hanger with a lock nut and cotter pin
  • Disc hanger is supported on a sturdy disc carrier hinge pin of excellent bearing qualities
  • All parts are accessible from top for easy servicing
  • Requires Certification

Documents

SPECIFICATION

Specifications

API:
API 600
ASME:
ASME Class 150, ASME B16.34, ASME B16.10, ASME B16.5, ASME B16.25
Collection:
Figure 0114C
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
Height:
5-3/4 in
IAPMO Listed:
No
Length:
8 in
Material:
Carbon Steel, Cast Carbon Steel, Stainless Steel
Material Type:
CR 13, Stellite
NSF Certified:
No
Pressure - Maximum:
150 psi
Pressure Class:
150#
UL Listed:
No
Valve Body Material:
Cast Carbon Steel
Valve Body Style:
Swing Check
Valve Bonnet Type:
Bolted
Valve Disc Material:
CR 13
Valve Seat Material:
Stellite
Valve Size:
2 in
Valve Type:
Swing Check Valve
