1/2 in. Copper Silicon Alloy Standard Port Female Threaded Ball Valve

You last purchased this on

Watts

Series LFB6400 1/2 in. Copper Silicon Alloy Standard Port Female Threaded Ball Valve

  • Fast #
  • Part #WLFB6400LLD
  • Item #4827355
  • Manufacturer Part #0125209
4.1 out of 5 Customer Rating
Brand image

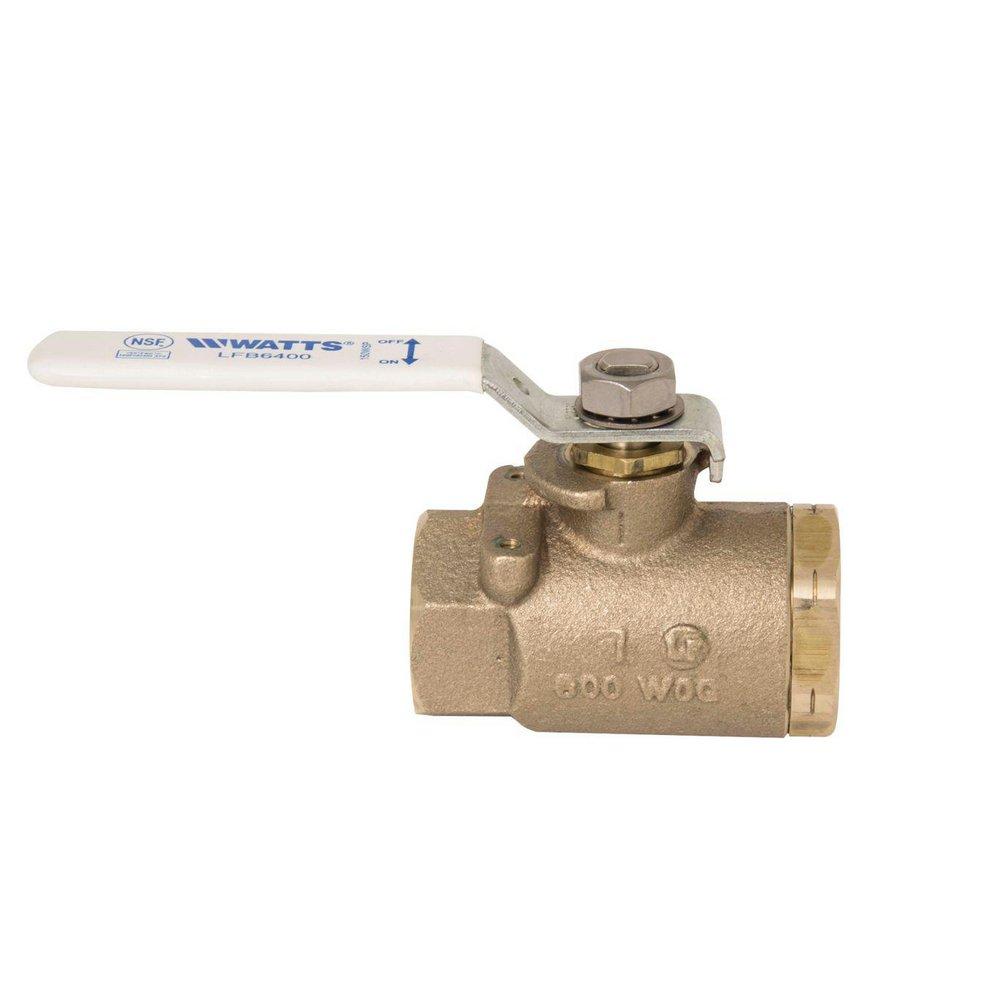

Watts Bronze Copper Silicon Alloy Standard Port Female Threaded Ball Valve
You last purchased this on

Watts

Series LFB6400 1/2 in. Copper Silicon Alloy Standard Port Female Threaded Ball Valve

  • Fast #
  • Part #WLFB6400LLD
  • Item #4827355
  • Manufacturer Part #0125209
4.1 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 40
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
  • Pick Up: Not available
  • Shipping: Not available

Product Details

Product Details

  • Lead free bronze
  • Blowout proof pressure retaining stem
  • Adjustable stem packing gland
  • Durafill seats
  • Excellent for throttling and balancing applications of non-abrasive fluids where minimum flow is 20% to 100% of valve capacity
  • Actuator mounting pads
  • High cycle life reinforced PTFE stem packing seal and thrust washer
  • Vinyl insulator on heavy duty, zinc plated carbon steel handles
  • Requires Certification

Specifications

ANSI:
ANSI 372
BAA Compliant:
No
Clean Bagged:
No
Collection:
Series LFB6400
Color Finish Name:
Bronze
Depth:
1-1/4 in
End Connection 1:
Female Threaded
End Connection 2:
Female Threaded
End Connections:
Female Threaded
FM Approved:
No
Fire Suppression System Rated:
No
Handle Material:
Zinc Plated Carbon Steel
Height:
5 in
IAPMO Listed:
No
Lead Law Compliance Level:
Lead Free Not Certified, Approved for Non-Potable Water Applications
Length:
2-1/4 in
MA Approved:
No
MSS:
MSS SP-110
Material:
Copper Silicon Alloy
NSF:
NSF 372
NSF Certified:
Yes
Origin:
Domestic
Pressure - High:
600
Proposition 65:
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Recommended Valve Application:
Cold Water, Gas, Liquid, Oil
Temperature Range:
-55 to 450 Deg F (-49 to 232 Deg C)
UL Listed:
No
Valve Body Style:
2 piece
Valve Operator:
Locking Lever Handle
Valve Port Opening:
Standard Port
Valve Seat Material:
Carbon/Glass Reinforced PTFE Durafill
Valve Size:
1/2 in
Valve Stem:
Bottom-loaded/Blowout-proof
Valve Type:
Ball Valve
Weight:
0.6 lb
Width:
2-19/50 in
cUPC Certified:
No
