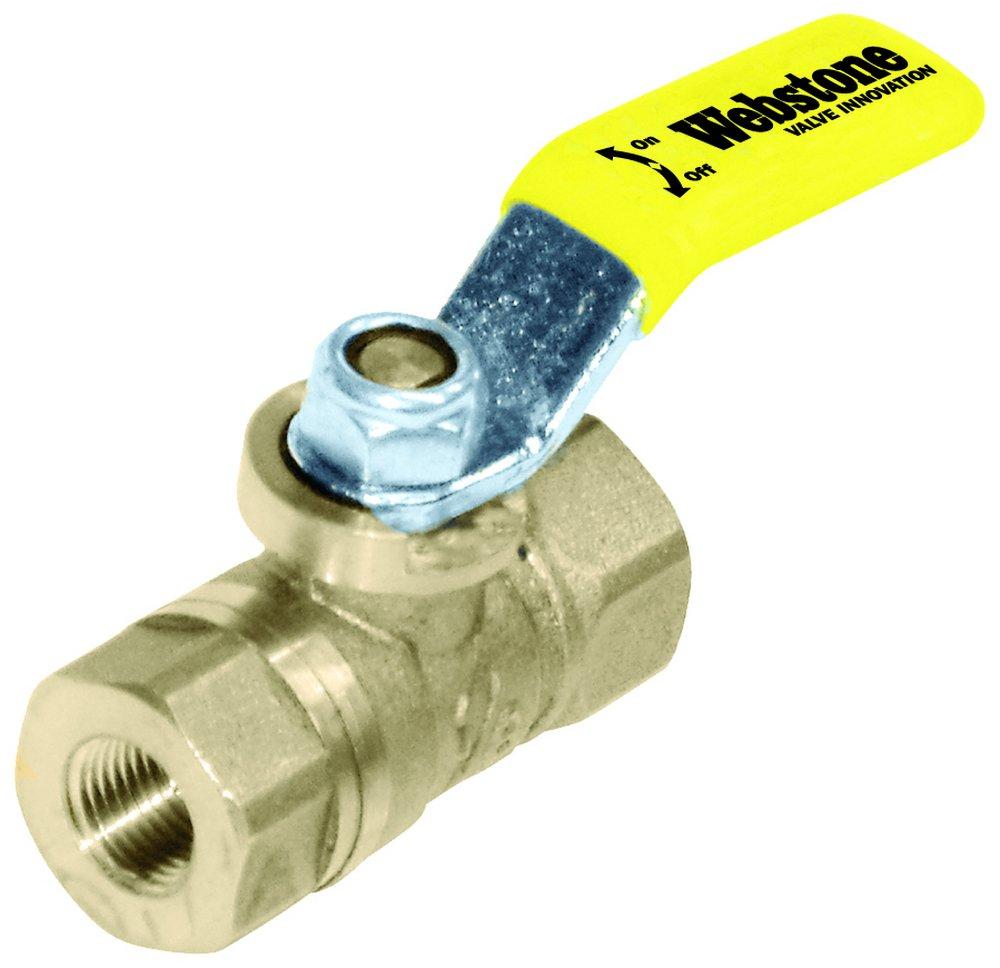

Name: 4169 Series 1/4 in. Forged Brass Full Port FIPT 600# Ball Valve
Availability: InStock

Webstone a brand of NIBCO

Fast #
Part #WH41699
Item #4503789
Manufacturer Part #H-41699

$9.04

EACH

Valve Size: 1/4 in

Add $45.00 more to cart to get FREE Shipping

Pick Up: Not available
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Pet cock style
Controls flow with quarter-turn lever handle
Compact design makes this valve versatile for many applications in a small line
Ball valve with integral spring check saves labor, space, and leak paths
Available in FIP x MIP, FIP
Certified to NSF/ANSI 61

Not Compliant, Approved for Non-Potable Water Applications

Documents

WARRANTY

SPECIFICATION

Specifications

ANSI:: ANSI 61, ANSI B1.20.1

Collection:: 4169 Series

End Connection 1:: FPT

End Connection 2:: FPT

End Connections:: FPT

FM Approved:: No

Handle Material:: Steel

IAPMO Listed:: No

ISO:: ISO 9001

Lead Law Compliance Level:: Not Compliant, Approved for Non-Potable Water Applications

Length:: 1-5/8 in

Material:: Forged Brass, Plastic

Material Type:: PTFE

Maximum Temperature:: 350

NSF:: NSF 61

NSF Certified:: Yes

Pressure - High:: 600

Pressure Class:: 125#, 600#

Recommended Valve Application:: Gas, Oil, Potable Water

Temperature Rating:: 100

UL Listed:: No

Valve Body Material:: Forged Brass

Valve Body Style:: Pet Cock

Valve Operator:: Quarter Turn Lever Handle

Valve Port Opening:: Full Port

Valve Seat Material:: PTFE

Valve Size:: 1/4 in

Valve Stem:: Blowout-proof

Valve Type:: Ball Valve
