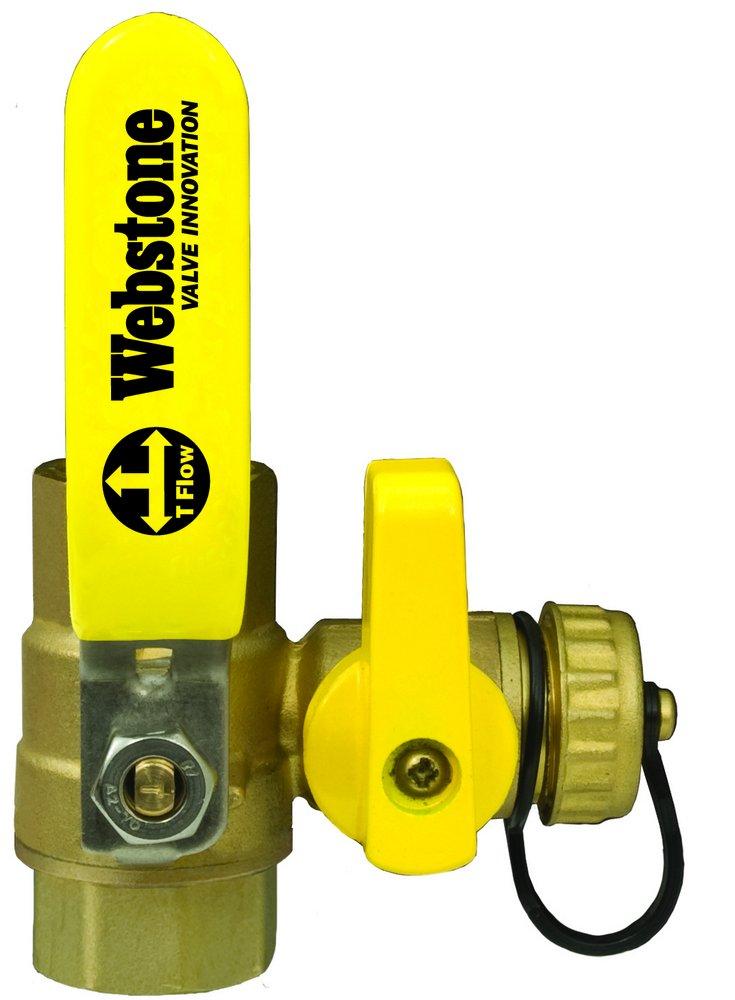

1 in. Forged Brass Full Port IPS 600# Ball Valve
You last purchased this on
Webstone a brand of NIBCO
H-x061 Series 1 in. Forged Brass Full Port IPS 600# Ball Valve
Purchase history
Webstone a brand of NIBCO
H-x061 Series
1 in. Forged Brass Full Port IPS 600# Ball Valve
H-40614
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Eliminates the need for assemblies to isolate and drain any portion of a piped system
- Replaces 4 components, eliminates 3 leak paths and saves 27 minutes of labor
- Winterize an entire building with simple quarter-turn actions
- Reversible handle for added versatility
- Exclusive adjustable flow path allows for draining from either side of the ball
-
Not Compliant, Approved for Non-Potable Water Applications
Documents
Specifications
- ANSI:
- ANSI B1.20.7
- Clean Bagged:
- No
- Collection:
- H-x061 Series
- End Connection 1:
- FPT
- End Connection 2:
- FPT
- End Connection 3:
- MGHT
- End Connections:
- FPT x FPT x MGHT
- FM Approved:
- No
- Handle Material:
- Chrome Plated Steel
- IAPMO Listed:
- No
- ISO:
- ISO 9001
- Lead Law Compliance Level:
- Not Compliant, Approved for Non-Potable Water Applications
- Length:
- 3-1/4 in
- Material:
- Forged Brass
- Maximum Temperature:
- 350
- NSF Certified:
- No
- Pressure - High:
- 600
- Pressure Class:
- 600#
- Recommended Valve Application:
- Gas, Oil, Water
- UL Listed:
- No
- Valve Body Style:
- 2 piece
- Valve Operator:
- Reversible Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 1 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
