Mueller Steam Specialty

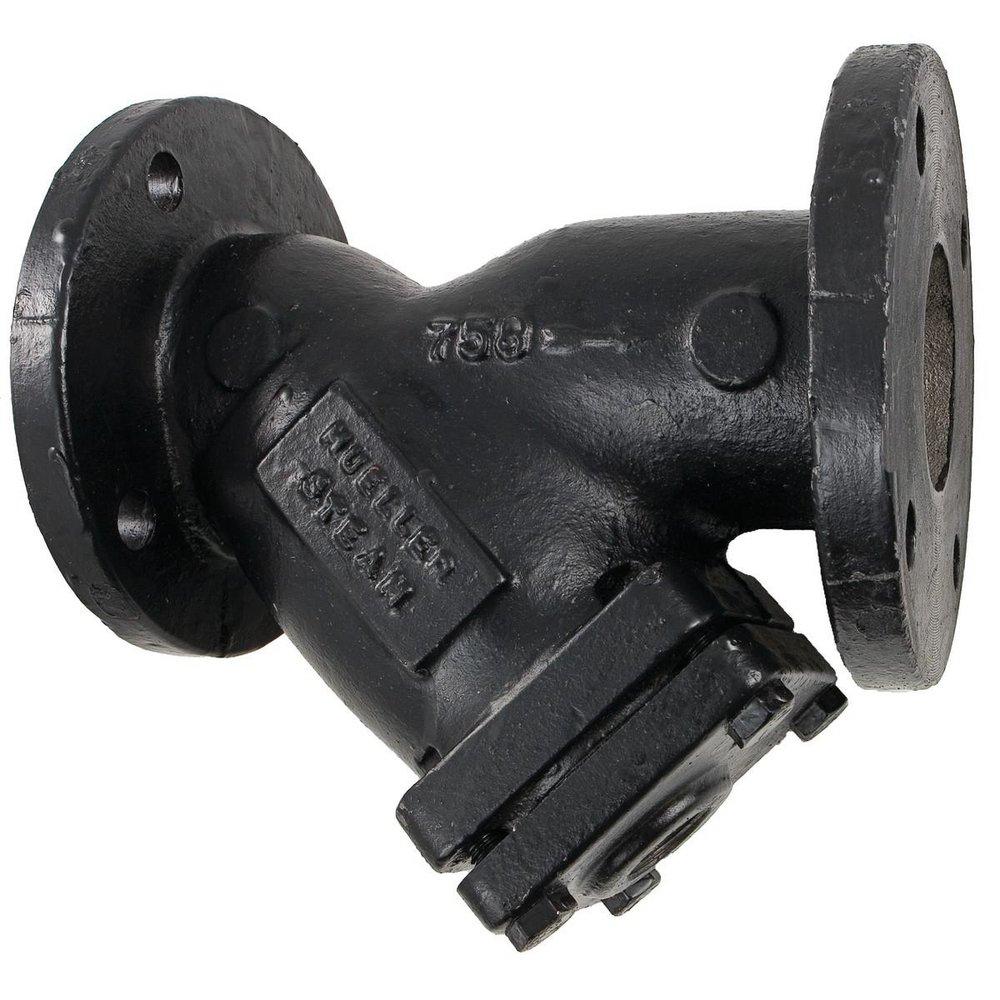

Mueller Steam Specialty Imp Cast Iron 125# Flanged Wye Strainer

Mueller Steam Specialty

Fast #
Part #M758NU
Item #1687353
Manufacturer Part #M6706960

$888.50

EACH

Fitting Sizes: 6 in

Log in or Create Account

Log in or Create an Account to see product availability.

Pick Up: Not available
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Cast iron
Bolted cover
0.125 perf screen
Class 125
304 stainless steel screen
Used to strain foreign matter from pipelines and provide economical protection for pumps and other mechanical equipment
Tapered seats in both the body and cover flange retain screen and prevent particle bypass
Sizes 3/4 in. - 24 in. (20 - 600 mm)

Documents

WARRANTY

SPECIFICATION

INSTALLATION

Specifications

ASTM:: ASTM A-126 Class B

BAA Compliant:: No

Collection:: Model 758

End Connection 1:: Flanged

End Connection 2:: Flanged

End Connections:: Flanged

Fitting Sizes:: 6 in

Height:: 19 in

Length:: 18-1/2 in

Material:: Cast Iron, Stainless Steel

Material Type:: 304

Maximum Temperature:: 450

Origin:: Global

Perforation Size:: 1/8 in

Pressure - High:: 125, 200

Pressure - Maximum:: 200 psi

Pressure Class:: 125#, 200#

Recommended Valve Application:: Gas, Oil, Water

Strainer Type:: Wye

UL Listed:: No

Valve Body Material:: Cast Iron

Valve Body Style:: Y Pattern

Width:: 11 in
