BrassCraft

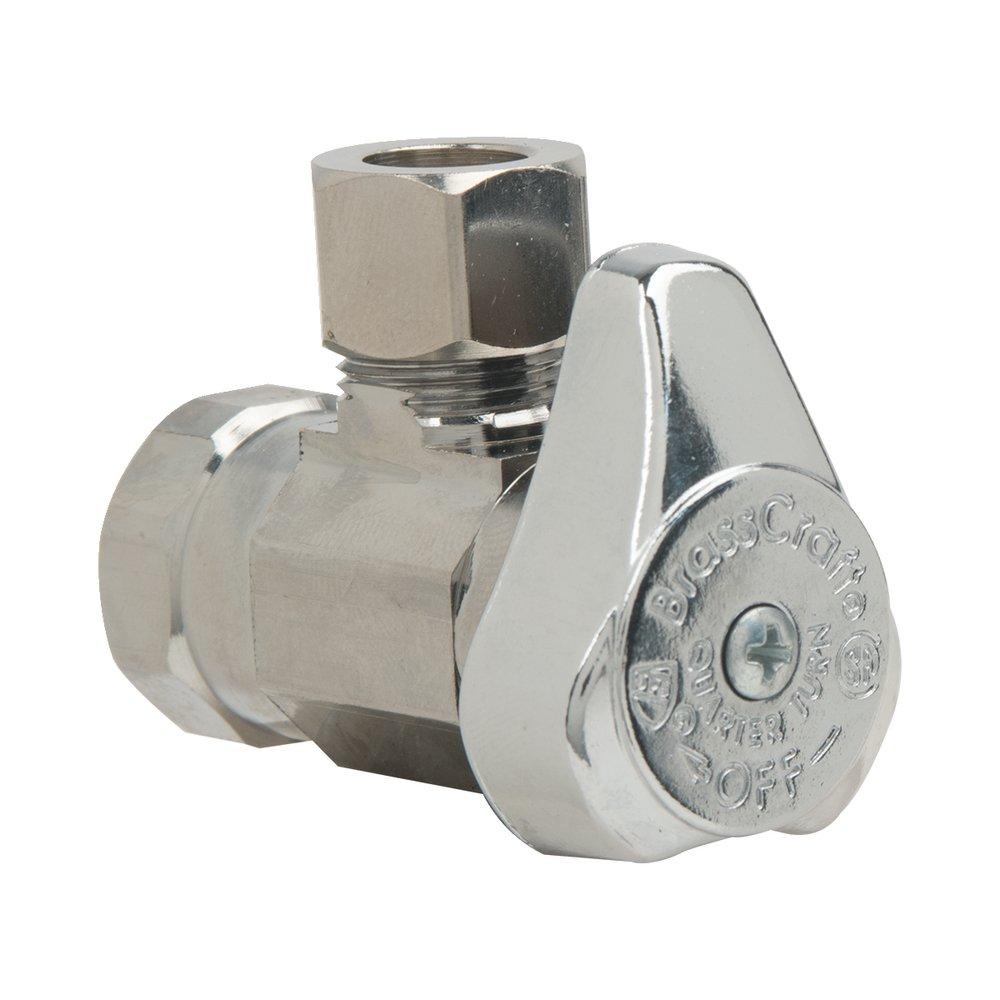

BrassCraft Chrome Plated FIPT x OD Compression Angle Supply Stop Valve in Chrome Plated

BrassCraft

Fast #
Part #BG2R15XC
Item #4633633
Manufacturer Part #G2R15X C

$10.25

EACH

Valve Size: 3/8 in

Add $45.00 more to cart to get FREE Shipping

Pick Up: 0 Available in Hilliard, OH - Available in 1 store nearby
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Machined one-piece brass body provides strength, durability and long-lasting performance
3/8 in. FIP Inlet x 3/8 in. OD Comp Outlet 1/4-Turn Angle Stop
Compatible with iron pipe
For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115° F. For those applications, use our KT™ series ball stops.
One-piece shut-off mechanism provides smooth on-off operation without freeze-ups even after long periods of non-use
Positive 1/4 turn shut-off
Easy-to-remove handle protects against accidental operation during rough-ins
Smooth, on/off flow control with a 90 degree turn of the handle
Chrome finish
100% leak tested to ensure reliable, leak-free performance

Lead Law Compliant

Documents

INSTALLATION

SPECIFICATION

Specifications

ANSI:: ANSI 14, ANSI 61

ASME:: ASME A112.18.1-2005, ASME A112.18.1.6

ASTM:: ASTM F-1807, ASTM F-876, ASTM F-877

CSA Certified:: CSA B125.1-05

Collection:: G2R15 Series

Color Finish Category:: Chromes

Color Finish Name:: Chrome Plated

End Connection 1:: FPT

End Connection 2:: Compression

End Connections:: FPT x Compression

Height:: 1-9/50 in

IAPMO Listed:: No

Lead Law Compliance Level:: Lead Law Compliant and Certified

Lead Law Compliant:: Yes

Length:: 2-3/4 in

Material:: Brass

Maximum Temperature:: 140

Minimum Temperature:: 40

NSF:: NSF 14, NSF 61

NSF Certified:: Yes

Origin:: Domestic

Pressure - Maximum:: 125 psi

Temperature Range:: 40 to 140 Deg F

UL Listed:: No

Valve Body Material:: Brass

Valve Body Style:: Angle

Valve Size:: 3/8 in

Valve Type:: Angle Supply Stop Valve

Weight:: 0.19137 lb

Width:: 2-1/4 in
