2 in. No Hub 304 and 305 Stainless Steel Quick Hub Shield Coupling with Neoprene Gasket

You last purchased this on

Mifab

MI-QXHUB Series 2 in. No Hub 304 and 305 Stainless Steel Quick Hub Shield Coupling with Neoprene Gasket

  • Fast #
  • Part #MMIQXHUB2
  • Item #8340547
  • Manufacturer Part #MI-QXHUB-2
4.8 out of 5 Customer Rating
Brand image

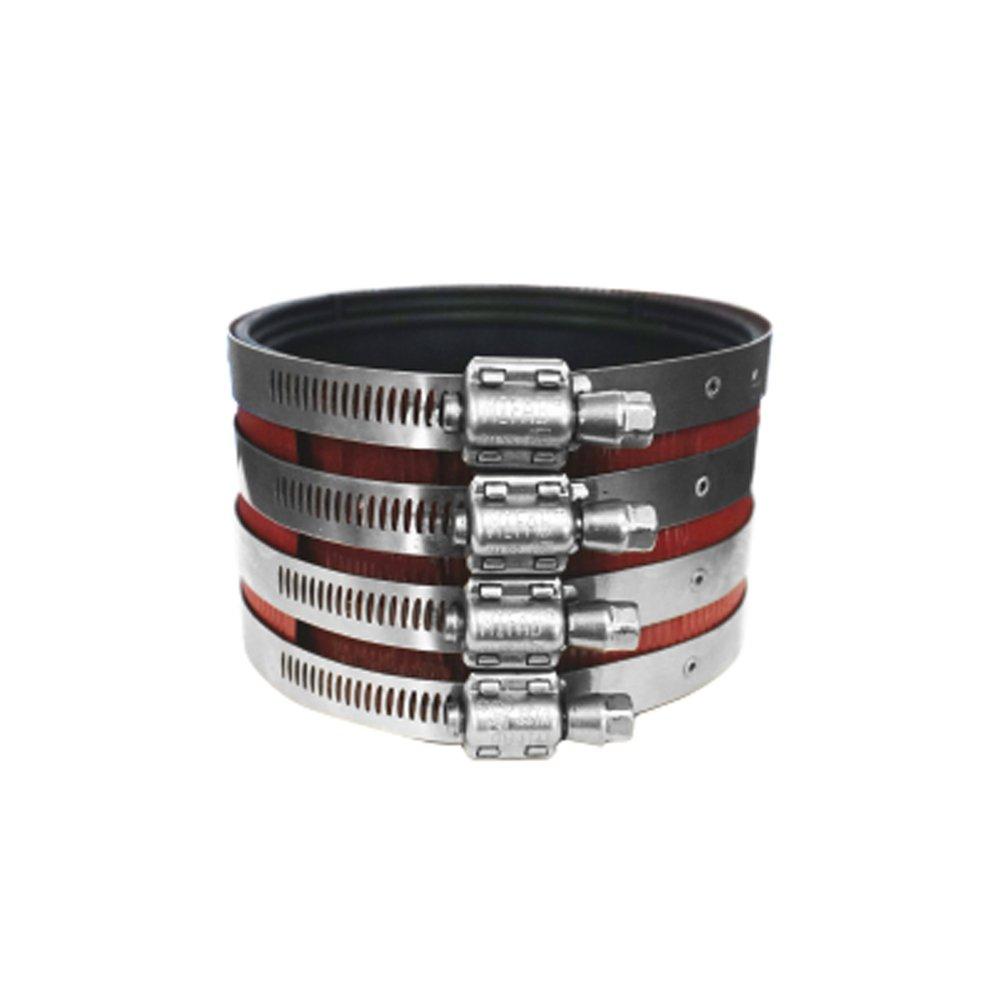

Mifab No Hub 304 and 305 Stainless Steel Quick Hub Shield Coupling with Neoprene Gasket
You last purchased this on

Mifab

MI-QXHUB Series 2 in. No Hub 304 and 305 Stainless Steel Quick Hub Shield Coupling with Neoprene Gasket

  • Fast #
  • Part #MMIQXHUB2
  • Item #8340547
  • Manufacturer Part #MI-QXHUB-2
4.8 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page
View All Sizes

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 72 Pallet: 1296
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

All Sizes

Frequently Purchased Together

Product Details

Product Details

  • MIFAB® Series MI-QXHUB (specify size) heavy duty shielded no hub couplings are manufactured with gaskets made from neoprene (meets the requirements of ASTM C-564) housed inside a type 304 stainless steel corrugated shield
  • Four (2" through 4" size), six (5" through 12" size) type 304 stainless steel clamps tightened with 3/8" type 305 stainless steel hex head screws surround the shield to provide the sealing force
  • MI-QXHUB series couplings are tested and certified to the ASTM-C1540-2018 and CSA B602 standards and listed with I.A.P.M.O
  • The MI-QXHUB are also tested and certified by Intertek testing services to the CAN/ULC S102.2-10 “smoke test”
  • The MI-QXHUB are tested by IAPMO to comply to the FM 1680-1989 standard (except for markings)
  • Less skilled labor helper required
  • Faster installation - complete job quicker to make deadlines
  • Quick install - no need to peel back gasket and shield
  • Fast assembly - assembles over cast iron fitting with ease
  • Torque requirements - same 60 to 80 lb torque requirement as regular couplings
  • Requires Certification

Specifications

ASTM:
ASTM C-1460, ASTM C-1540-2018, ASTM C-564
CSA Certified:
CSA B602
Clean Bagged:
No
Collection:
MI-QXHUB Series
End Connection 1:
No Hub
End Connection 2:
No Hub
End Connections:
No Hub
FM Approved:
Yes
Fitting Size 1:
2 in
Fitting Size 2:
2 in
Fitting Sizes:
2 in
Fitting Type:
Coupling, Straight
IAPMO Listed:
Yes
Length:
3 in
Material:
Rubber, Stainless Steel
Material Type:
304, 305, Neoprene
NSF Certified:
No
Origin:
Global
Pressure - Maximum:
30 psi
Pressure Class:
30#
Schedule Class:
80S
UL Listed:
No
