Goodman®

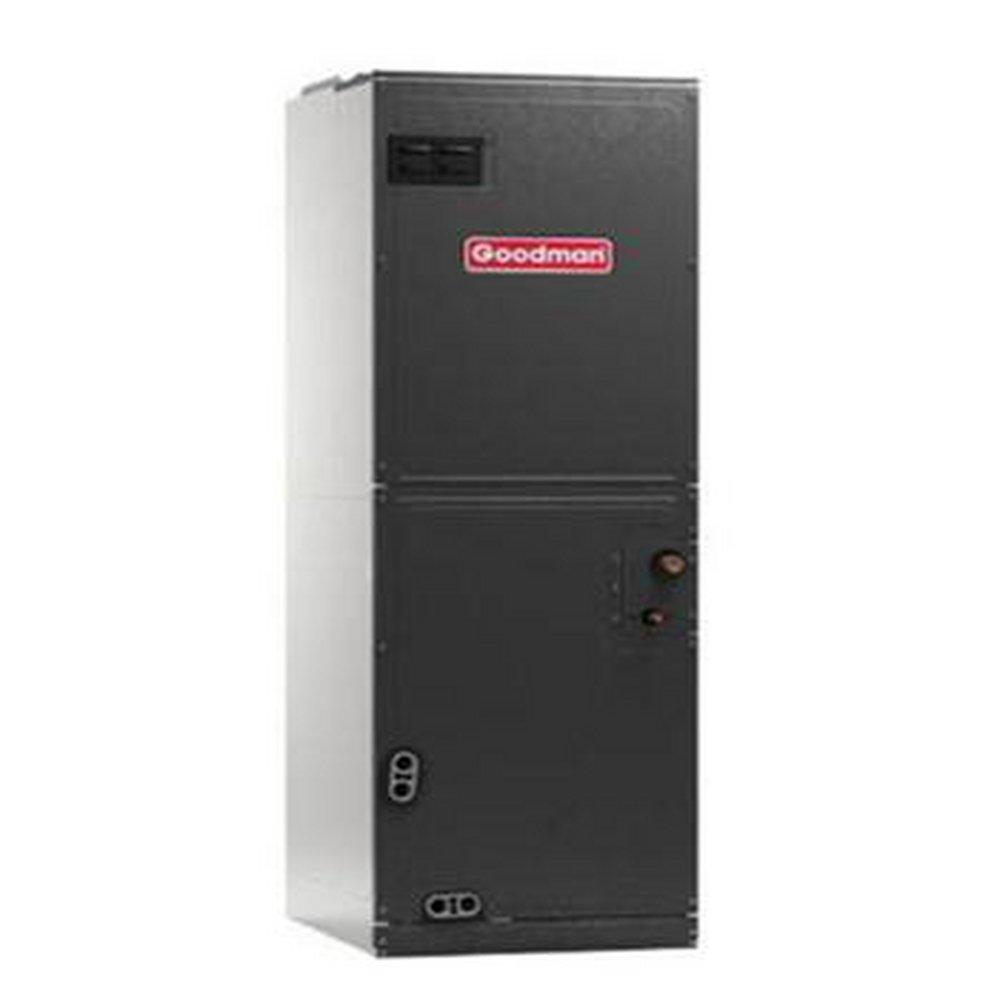

2.5T MULTI POS A/H B CA

Goodman®

Fast #
Part #GAMST30BU1400BA
Item #10333453
Manufacturer Part #AMST30BU1400BA

Tonnage: 2.5 Ton

Log in or Create Account

Log in or Create an Account to see product availability.

Pick Up: Not available
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area
Internal factory-installed thermal expansion valves for cooling and heat pump applications
Direct drive, multi-speed ECM blower motor
All-aluminum evaporator coil
Coil mounting track for quick repositioning
Optimized for use with R-410A refrigerant
Cabinet air leakage less than 2.0% at 1.0 inch H?O when tested in accordance with ASHRAE standard 193
Cabinet air leakage less than 1.4% at 0.5 inch H?O when tested in accordance with ASHRAE standard 193
AHRI certified; ETL listed
UL 60335 2-40 compliant

Specifications

A2L Compatible:: No

AMP:: 15, 4.5, 5.6

BTU:: 30000

BTU Cooling Rating:: 36000 Btu/h

Blower Type:: ECM

CFM:: 955 ft3/min

Coil Type:: Aluminum Fin

Collection:: AMST Series

Configuration:: Multi-Position

Depth:: 21 in

ETL Listed:: Yes

Energy Star Compliant:: No

Height:: 57-7/16 in

Horsepower:: 3/4 hp

Liquid Line (OD):: 3/8 in

MBH:: 30

Phase:: Single Phase

Power Source:: Electric

Refrigerant:: R-410A

Refrigeration Control Type:: TXV

SEER2:: 15.2

SEER2 Range:: 15.2 - 40.0

Suction Line (OD):: 3/4 in

Tonnage:: 2.5 Ton

Volts:: 208/230V

Weight:: 114 lb

Width:: 17-1/2 in
