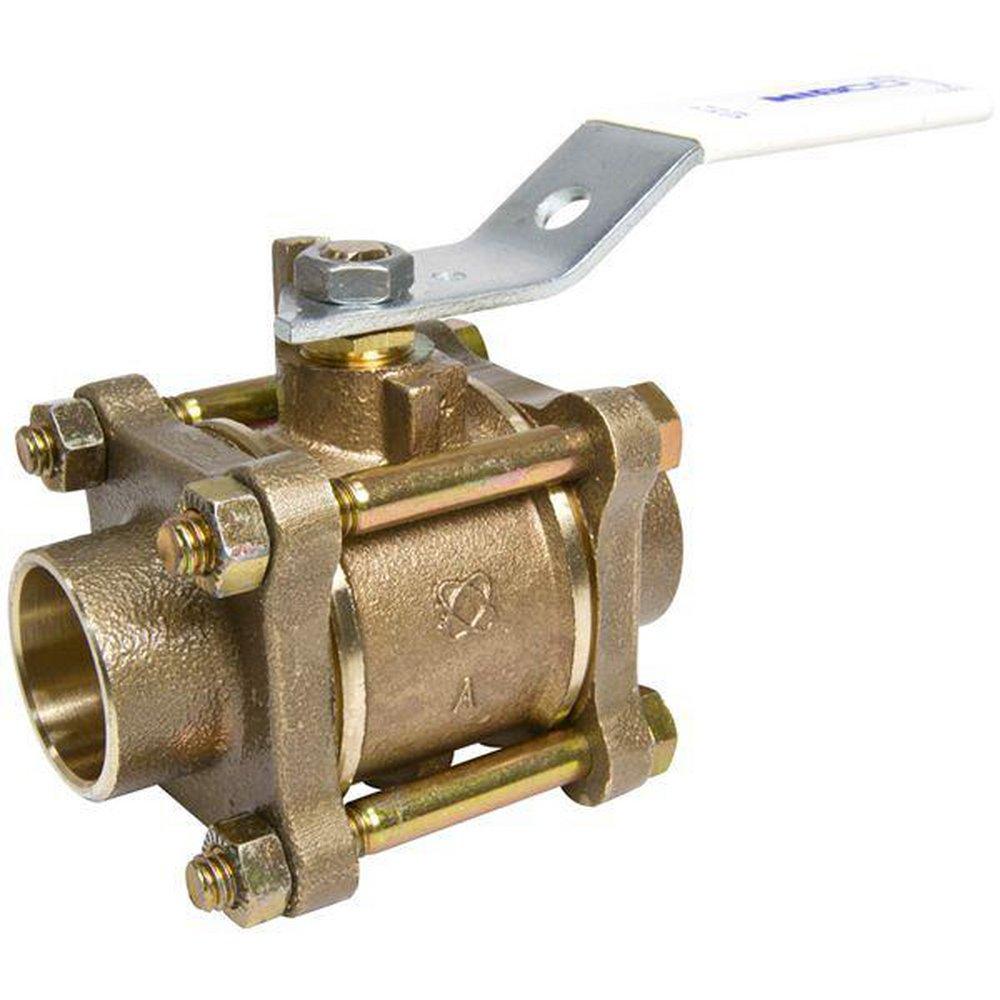

Name: S-595-Y-66-LF 1/2 in. Silicon Bronze Full Port Female Solder 600# Ball Valve
Availability: InStock

NIBCO

Fast #
Part #NS595Y66LFD
Item #4139119
Manufacturer Part #NJ93H26

$110.89

EACH

Valve Size: 1/2 in

Add $45.00 more to cart to get FREE Shipping

Pick Up: Not available
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Blowout-proof stem
Repairable design
Stainless steel trim
Dezincification resistant
Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
Full port
PTFE seats
Solder end connections

Lead Law Compliant

Documents

WARRANTY

SPECIFICATION

Specifications

ANSI:: ANSI 61, ANSI 372

ASTM:: ASTM B-584, ASTM A-276 Type 316

Collection:: S-595-Y-66-LF

End Connection 1:: Female Sweat

End Connection 2:: Female Sweat

End Connections:: Female Sweat

FM Approved:: No

Handle Material:: Zinc Plated Steel

IAPMO Listed:: No

Lead Law Compliance Level:: Lead Law Compliant and Certified

Lead Law Compliant:: Yes

MSS:: MSS SP-110

Material:: Silicon Bronze

Maximum Temperature:: 300

NSF:: NSF 61, NSF 372

NSF Certified:: Yes

Pressure - Maximum:: 100 psi

Pressure Class:: 600#

Proposition 65:: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

UL Listed:: No

Valve Body Style:: 3 piece

Valve Disc Material:: PTFE

Valve Operator:: Lever Handle

Valve Port Opening:: Full Port

Valve Seat Material:: Reinforced PTFE

Valve Size:: 1/2 in

Valve Stem:: Blowout-proof

Valve Type:: Ball Valve
