BrassCraft 1/2 x 3/8 x 3/8 in. FIPT x OD Compression x OD Compression Knurled Oval Handle Angle Supply Stop Valve in Rough Brass | Ferguson

Ferguson.com no longer supports Internet Explorer. If you continue using IE, your experience will be degraded and you will not be able to check out. To use Ferguson.com, please use one of the following browsers: Chrome, Safari, Firefox, or Edge.

Skip to main content Skip to footer content

BrassCraft

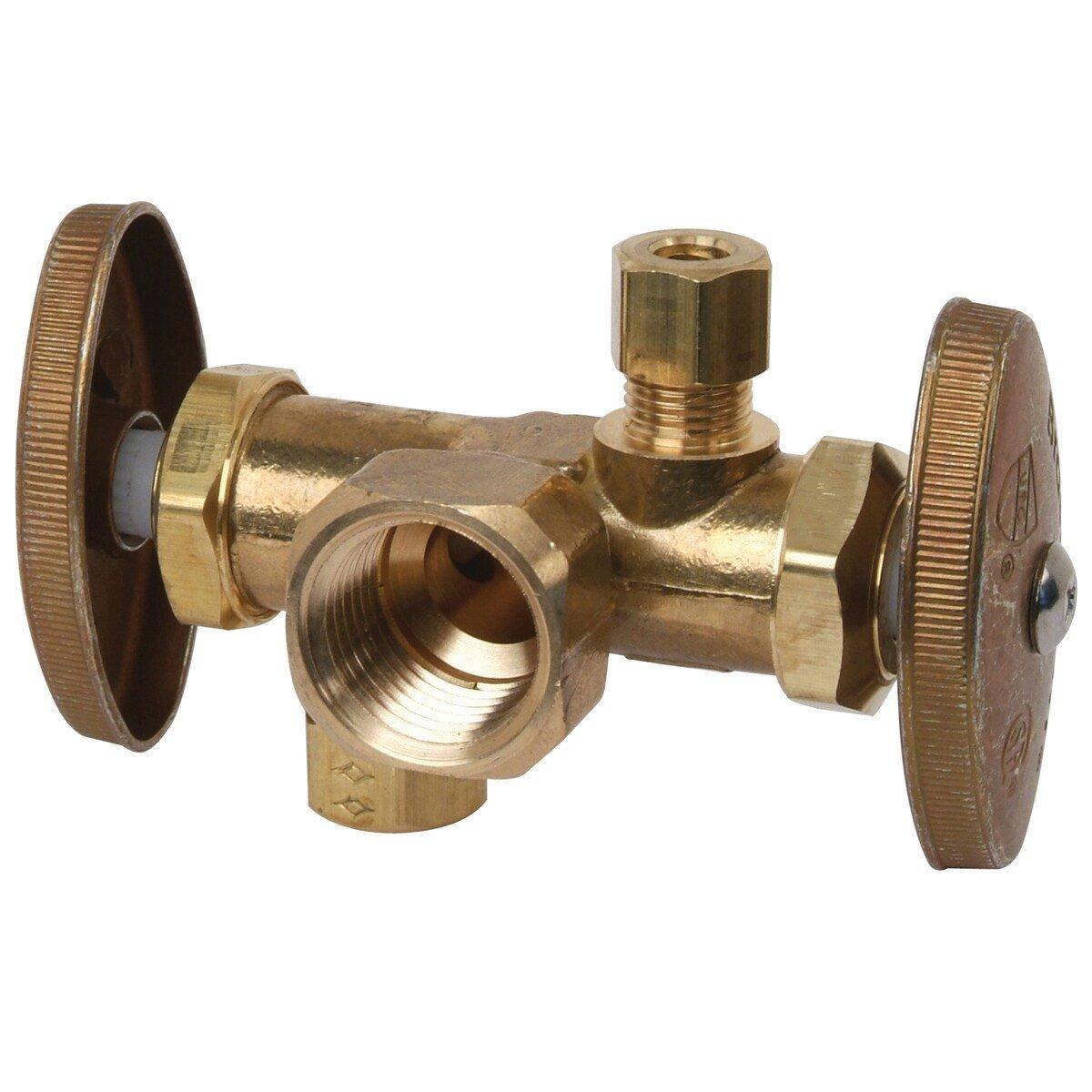

BrassCraft Rough Brass FIPT x OD Compression x OD Compression Knurled Oval Handle Angle Supply Stop Valve in Rough Brass

BrassCraft

Fast #
Part #BR1701DVXR
Item #3869341
Manufacturer Part #R1701DVX R

$31.27

EACH

Valve Size: 1/2 in x 3/8 in x 3/8 in

Add $45.00 more to cart to get FREE Shipping

Pick Up: Not available
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Machined one-piece brass body provides strength, durability and long-lasting performance
1/2 in. FIP Inlet x 3/8 in. OD Comp x 3/8 in. OD Comp Dual Outlet Dual Shut-Off Multi-Turn Angle Stop
Compatible with iron pipe
For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115° F. For those applications, use our KT™ series ball stops.
1/4 turn ball stop; easy on/off operation
One-piece shut-off mechanism provides smooth on-off operation
Multi-turn operation means water flow control with only a few turns of the handle
Rough brass finish
For indoor use

Lead Law Compliant

Documents

INSTALLATION

SPECIFICATION

Specifications

ANSI:: ANSI 372, ANSI 61

ASME:: ASME A112.18.1

CSA Certified:: CSA B125.1

Collection:: R1701DV Series

Color Finish Category:: Brass Tones

Color Finish Name:: Rough Brass

End Connection 1:: FPT

End Connection 2:: OD Compression

End Connection 3:: OD Compression

End Connections:: FPT x OD Compression x OD Compression

Handle Material:: Metal

Handle Type:: Knurled Oval

Height:: 1-9/100 in

IAPMO Listed:: Yes

Lead Law Compliance Level:: Lead Law Compliant and Certified

Lead Law Compliant:: Yes

Length:: 2-49/100 in

Material:: Brass

Maximum Temperature:: 160

Minimum Temperature:: 40

NSF:: NSF 372, NSF 61

NSF Certified:: Yes

Number of Handles:: Two Handle

Origin:: Domestic

Pressure - High:: 125

Recommended Valve Application:: Potable Water, Residential, Commercial

Temperature Range:: 40 to 160 Deg F

UL Listed:: No

Valve Body Material:: Brass

Valve Body Style:: 1 piece

Valve Operator:: Multi-Turn Handle

Valve Size:: 1/2 in x 3/8 in x 3/8 in

Valve Type:: Angle Supply Stop Valve

Weight:: 0.39762 lb

Width:: 6 in
