199K BTU - High Capacity - Condensing Fire Tube Boiler - 95%
You last purchased this on
Navien

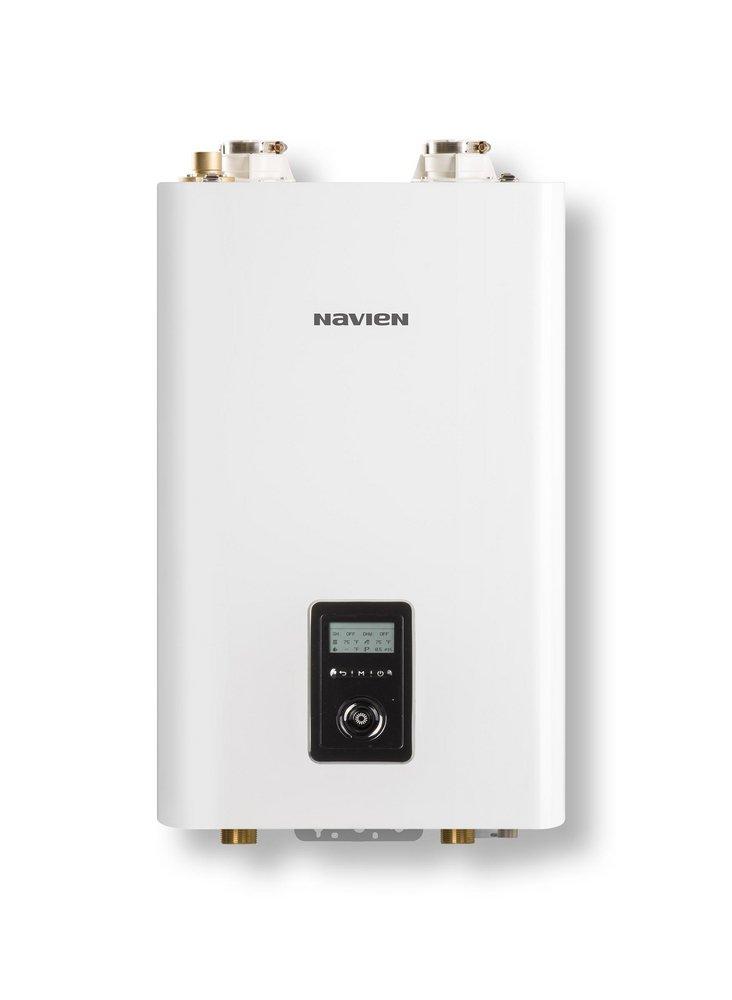

NFB-H Series 199K BTU - High Capacity - Condensing Fire Tube Boiler - 95%
Points
$2,598.60
Call for Pricing
Log in or Create Account
Log in or Create an Account to see product availability.
-
Pick Up: Not available
-
Shipping: Available for immediate shipment
Purchase history
Navien
NFB-H Series
199K BTU - High Capacity - Condensing Fire Tube Boiler - 95%
NFB200H
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- 2" up to 60 ft and 3" up to 150, PVC, CPVC, PP, SS
- Common venting up to 8 boilers and cascading up to 16 boilers
- Patented SS Firetube Heat Exchanger w/non-metallic condensate dish
- Built-in 3 zone valves and 3 zone pumps controls
- 10:1 Turndown Ratio
- 15 yr HX, 5 yr parts, 1 yr labor residential warranty
- 10 yr HX, 3 yr parts, 1 yr labor commercial warranty
- Direct venting (2 pipes) and non-direct venting (1 pipe)
- Approved for high elevation up to 10,100 ft.
- Glycol up to 50%
-
Green
Specifications
- AFUE:
- 95.00 %
- AMP:
- 15
- ANSI:
- ANSI Z223.1
- ASME:
- ASME H
- Application:
- Residential, Light Commercial
- BTU:
- 199900
- BTU Heat Rating:
- 158000 Btu/h
- Boiler Type:
- High Efficiency Boiler
- Brand Model Compatibility:
- NFB
- CSA Certified:
- CSA B149.1
- Capacity:
- 4.5 gal
- Collection:
- NFB-H Series
- Condensing:
- Yes
- Depth:
- 17-3/10 in
- Energy Star Compliant:
- Yes
- Fuel Type:
- Natural Gas, Propane
- Height:
- 27-3/5 in
- Ignition System:
- Electronic Ignition
- Input (MBH):
- 200 MBH
- Installation Type:
- Wall Mount
- Length:
- 17-3/10 in
- MBH:
- 200
- Material:
- Carbon Steel, Stainless Steel
- NSF:
- No
- NSF Certified:
- No
- Return Pipe Connection:
- 1-1/4 in
- Supply Pipe Connection Size:
- 1-1/4 in
- UL Listed:
- No
- Vent Type:
- Direct Vent
- Volts:
- 120V
- Width:
- 17-3/10 in
- Zones:
- 3
