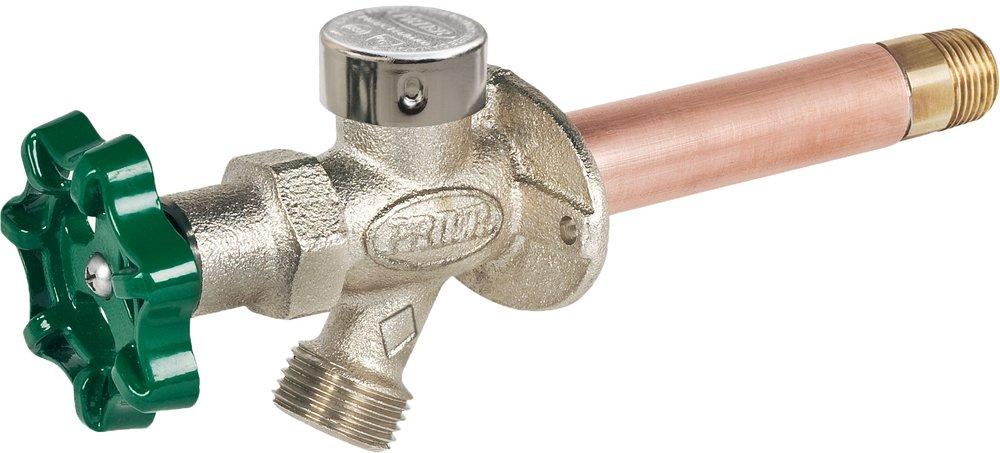

Name: C-144 Series 8 in. Freezeless Wall Hydrant 1/2 in. Wirsbo Adapter
Availability: InStock

PRIER Products

Fast #
Part #PC144W08
Item #3297179
Manufacturer Part #C-144W08

$45.94

EACH

Length: 8 in

Add $45.00 more to cart to get FREE Shipping

Pick Up: 0 Available in Wichita, KS - Available in 1 store nearby
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Integral cast flange with built-in drainage pitch
Enclosed screw holes easily secure mounting screws
Solid brass body, valve stem cap, seat and stem ends
Powder coated cast aluminum handle
Slim seat inlet for easier installation
Five full hose threads
Field repairable with no special tools
Stainless steel seat washer screw and handle screw
Made in the USA

Documents

SPECIFICATION

INSTALLATION

WARRANTY

Specifications

ASME:: ASME A112.18.1-2018

ASSE Standards:: ASSE 1019

BAA Compliant:: Yes

CSA Certified:: CSA B125.1-18

Collection:: C-144 Series

Color Finish Name:: Satin Nickel

End Connection 1:: Barbed

End Connection 2:: Threaded

End Connections:: Barbed x Threaded

Fitting Size 1:: 1/2 in

Fitting Size 2:: 1/2 in

Fitting Sizes:: 1/2 in

Flow Rate:: 8 gpm

Handle Material:: Metal

Handle Type:: Round

Height:: 3-1/2 in

IAPMO Listed:: Yes

ISO:: No

Installation Type:: Wall Mount

Length:: 8 in

Material:: Brass

Maximum Temperature:: 140

NSF:: No

NSF Certified:: No

Pressure - Maximum:: 125 psi

Pressure Class:: 125 psi

Proposition 65:: WARNING: Cancer - www.P65Warnings.ca.gov

Recommended Valve Application:: Water

Sillcock Type:: Anti-siphon, Frost-proof

UL Listed:: No

Valve Body Material:: Brass

Valve Bonnet Type:: Threaded

Valve Operator:: Wheel Handle

Valve Port Opening:: Standard Port

Valve Seat Material:: EPDM

Valve Size:: 1/2 in

Valve Stem:: Rising

Width:: 3 in
