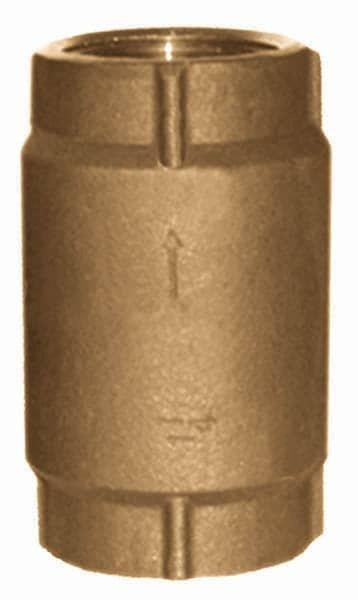

1 in. Silicon Bronze Female Threaded Spring Check Valve
You last purchased this on
Simmons Manufacturing
500 SB Series 1 in. Silicon Bronze Female Threaded Spring Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
-
Pick Up: Not available
-
Shipping: Not available
Purchase history
Simmons Manufacturing
500 SB Series
1 in. Silicon Bronze Female Threaded Spring Check Valve
513SB
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Silicon bronze cast body
- Silicon bronze cast poppet
- Female threads
- Certified lead free to NSF/ANSI 372 and NSF/ANSI 61
- Meets all state and federal safe water drinking acts including California Prop 65
- All check valves furnished with Buna-N O-ring, stainless steel spring, stainless steel washer and stainless steel locknut
- All valves 3/4 in. through 1-1/2 in. have a working pressure of 400 psi
-
Lead Law Compliant
Documents
Specifications
- ANSI:
- ANSI 372, ANSI 61
- Collection:
- 500 SB Series
- End Connection 1:
- FPT
- End Connection 2:
- FPT
- End Connections:
- FPT
- FM Approved:
- No
- IAPMO Listed:
- No
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 3-7/8 in
- Material:
- Silicon Bronze
- Maximum Temperature:
- 190
- NSF:
- NSF 372, NSF 61
- NSF Certified:
- Yes
- Pressure - High:
- 400
- Recommended Valve Application:
- Water
- UL Listed:
- No
- Valve Body Material:
- Silicon Bronze
- Valve Body Style:
- Spring
- Valve Size:
- 1 in
- Valve Type:
- Spring Check Valve
- Weight:
- 1.2 lb
