PROFLO® 1/2 in. PEX Crimp Connection Pressure Balancing Valve with Stops | Ferguson

Ferguson.com no longer supports Internet Explorer. If you continue using IE, your experience will be degraded and you will not be able to check out. To use Ferguson.com, please use one of the following browsers: Chrome, Safari, Firefox, or Edge.

Skip to main content Skip to footer content

PROFLO®

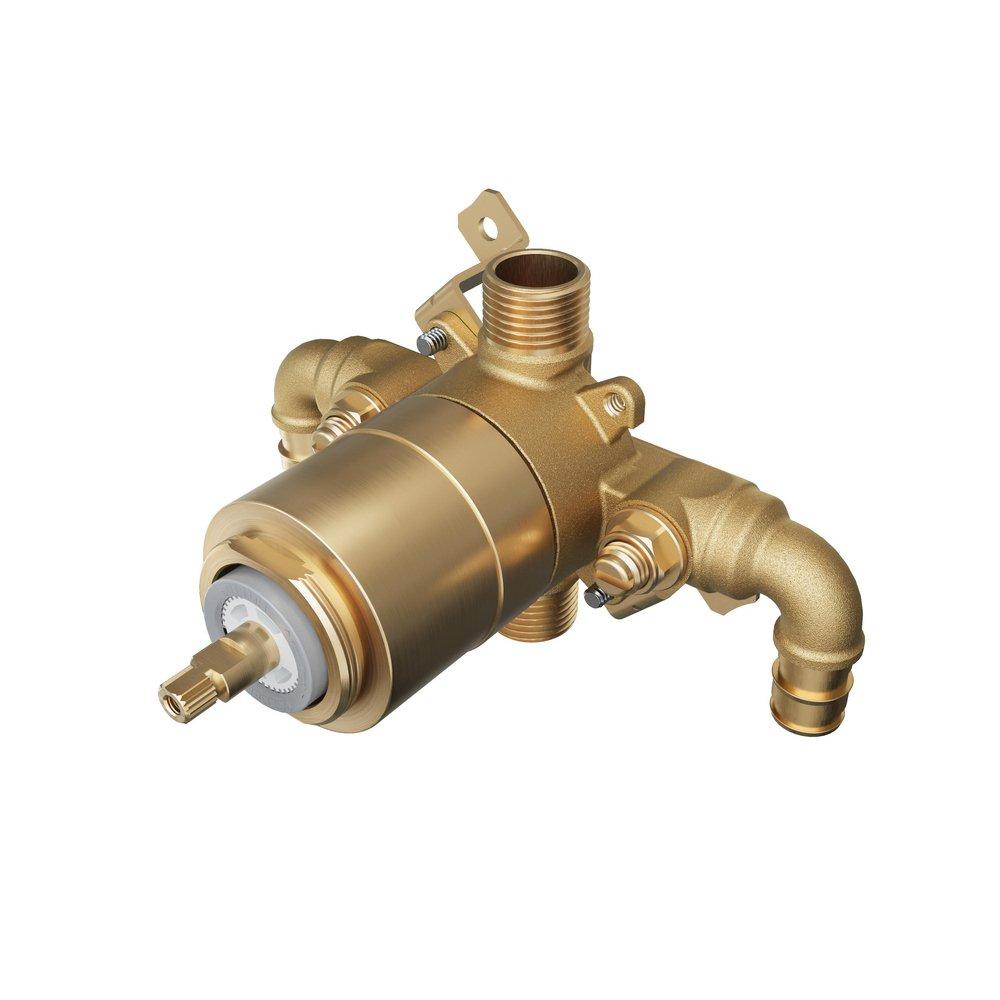

PROFLO® Wirsbo PEX Tub and Shower Valve with Stop

PROFLO® Wirsbo PEX Tub and Shower Valve with Stop

PROFLO® Wirsbo PEX Tub and Shower Valve with Stop

PROFLO®

Fast #
Part #PF4001WP90
Item #7936964
Manufacturer Part #PF4001WP90

$91.54

EACH

Valve Size: 1/2 in

Add $45.00 more to cart to get FREE Shipping

Pick Up: Not available
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

End Connection: 1/2"
Ceramic disc valve cartridge
Back-to-back capability
Temperature limiting device
Plaster guard included
Optional Accessories: Replacement Cartridge: ACF4001UCRT, Extension Kit: ACF4001EXT, Test Cap: ACF4001AIR, Plaster Guard: ACF4001GRD
IAPMO Approved
Meets or exceeds ASSE 1016-P standards (anti-scald)

Documents

INSTALLATION

PARTS

SPECIFICATION

Specifications

ASME:: ASME A112.19.2-2018, ASME A112.18.1-2018

ASSE Standards:: ASSE 1016-P

Built-in Stops:: Yes

CSA Certified:: CSA B125.1-18, CSA B45.1-18

Cartridge Type:: Ceramic Disc

Connection Type:: PEX Crimp

Faucet Valve Type:: Pressure Balancing

Flow Rate:: 6.34 gpm

IAPMO Listed:: Yes

NSF Certified:: No

Pressure - Maximum:: 80 psi

Valve Body Material:: Brass

Valve Size:: 1/2 in

Valve Type:: Tub & Shower Rough-In Valve

Width:: 5-1/2 in
