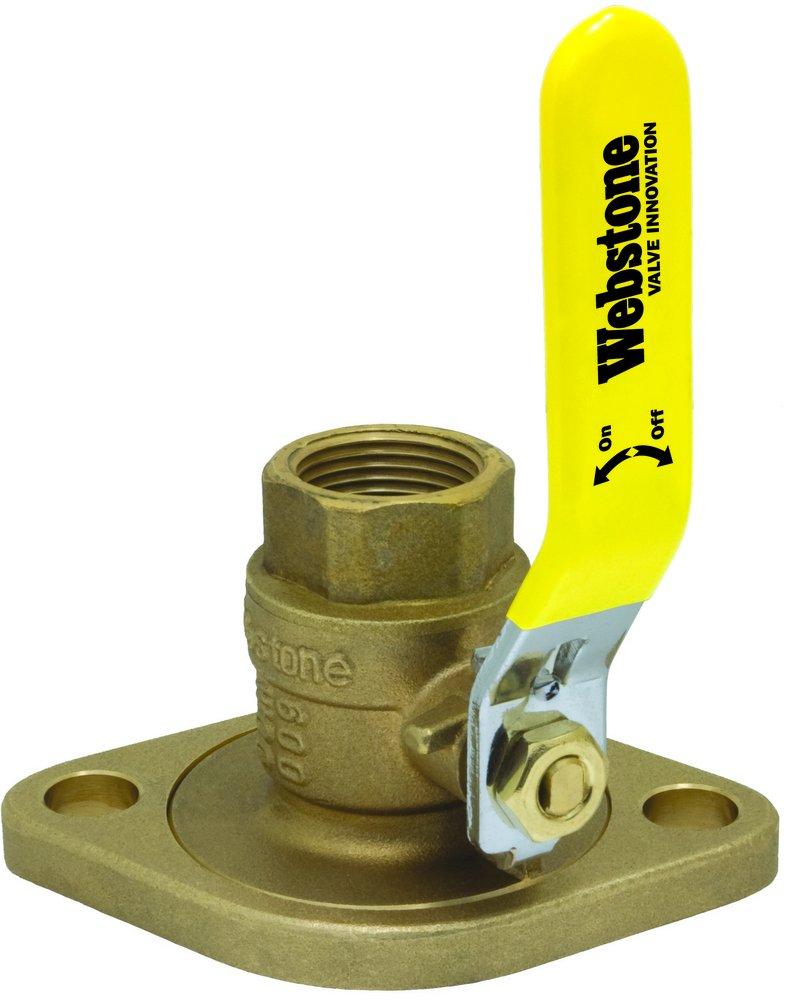

Webstone a brand of NIBCO 2 in. IPS x Flanged Brass Full Port Ball Valve | Ferguson

Ferguson.com no longer supports Internet Explorer. If you continue using IE, your experience will be degraded and you will not be able to check out. To use Ferguson.com, please use one of the following browsers: Chrome, Safari, Firefox, or Edge.

Skip to main content Skip to footer content

Webstone a brand of NIBCO

Webstone a brand of NIBCO

Fast #
Part #WH41407WHV
Item #7018284
Manufacturer Part #H-41407WHV

$274.01

EACH

Valve Size: 2 in

Add $45.00 more to cart to get FREE Shipping

Pick Up: Not available
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Unique uni-body design
Replaces 3 components, eliminates 2 leak paths and saves 18 minutes of labor
Solid forged brass outer flange
Prevents electrolysis
Eliminates galvanic corrosion
Rotation of 360° offers greater flexibility
Snap ring provides greater control over installation
Inner and outer flanges are designed to help prevent problems from over-torquing
Easily isolates the pump for replacement
Prevents electrolysis and eliminates galvanic corrosion

Lead Law Compliant

Documents

SPECIFICATION

WARRANTY

INSTALLATION

Specifications

ANSI:: ANSI 372, ANSI 61, ANSI B1.20.1

Clean Bagged:: No

Collection:: 4140W Series

End Connection 1:: FPT

End Connection 2:: Flanged

End Connections:: FPT x Flanged

FM Approved:: No

Handle Material:: Chrome Plated Steel

IAPMO Listed:: No

ISO:: ISO 9001

Lead Law Compliance Level:: Lead Law Compliant and Certified

Lead Law Compliant:: Yes

Length:: 4 in

Material:: Forged Brass, Plastic

Material Type:: PTFE

Maximum Temperature:: 250

NSF:: NSF 372, NSF 61

NSF Certified:: Yes

Origin:: Global

Pressure - High:: 600

Pressure Class:: 600#

Recommended Valve Application:: Gas, Oil, Potable Water

Temperature Rating:: 100

UL Listed:: No

Valve Body Material:: Forged Brass

Valve Body Style:: Flanged

Valve Operator:: T-Handle

Valve Port Opening:: Full Port

Valve Seat Material:: PTFE

Valve Size:: 2 in

Valve Stem:: Blowout-proof

Valve Type:: Ball Valve
