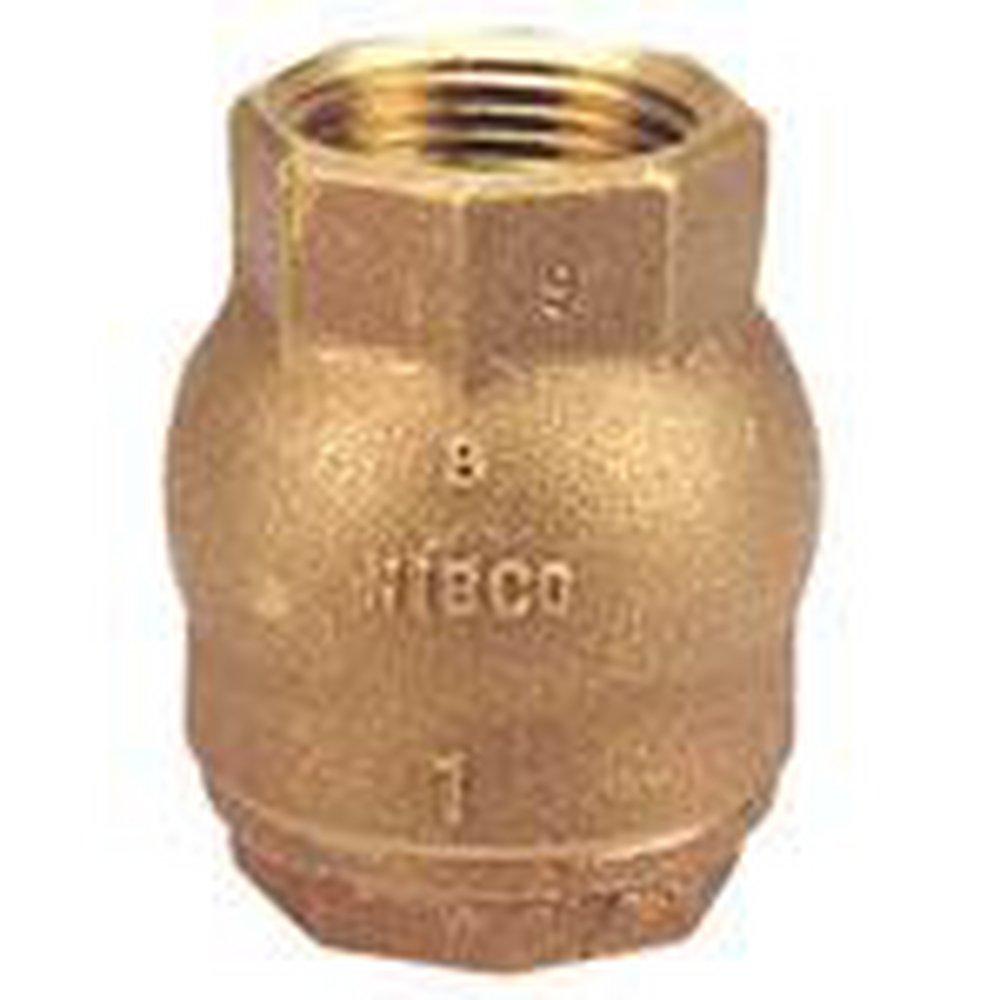

Name: 1-1/2 in. Bronze NPT Check Valve
Availability: InStock

NIBCO

Fast #
Part #NT480YJ
Item #54849
Manufacturer Part #NL9318C

$199.20

EACH

Valve Size: 1-1/2 in

Add $45.00 more to cart to get FREE Shipping

Pick Up: Not available
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

In-line lift-type
125# class
FNPT Thread
Spring actuated (1/2 psi cracking pressure)
125 psi/8.6 bar saturated steam to 353°F/178°C
Class 125 threaded end connections
Use in U.S. drinking water applications is prohibited after January 3, 2014
Straight pattern
Teflon disc
250 psi/17.2 bar non-shock cold working pressure

Not Compliant, Approved for Non-Potable Water Applications

Documents

WARRANTY

SPECIFICATION

Specifications

ASTM:: ASTM A-276, ASTM A-582, ASTM B-584

End Connection 1:: NPT

End Connection 2:: NPT

End Connections:: NPT

Installation Type:: Horizontal Mount, Vertical Mount

Lead Law Compliance Level:: Not Compliant, Approved for Non-Potable Water Applications

Length:: 3-31/100 in

MSS:: MSS SP-80

Material:: Bronze

Maximum Temperature:: 353

NSF Certified:: No

Pressure Class:: 250#

Proposition 65:: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

UL Listed:: No

Valve Body Material:: Bronze

Valve Body Style:: Swing

Valve Disc Material:: PTFE

Valve Size:: 1-1/2 in

Valve Type:: Check Valve
